KMP_786C_C03 Page 5 of 7

786 Series

General Purpose Pulse Transformers

www.murata.com

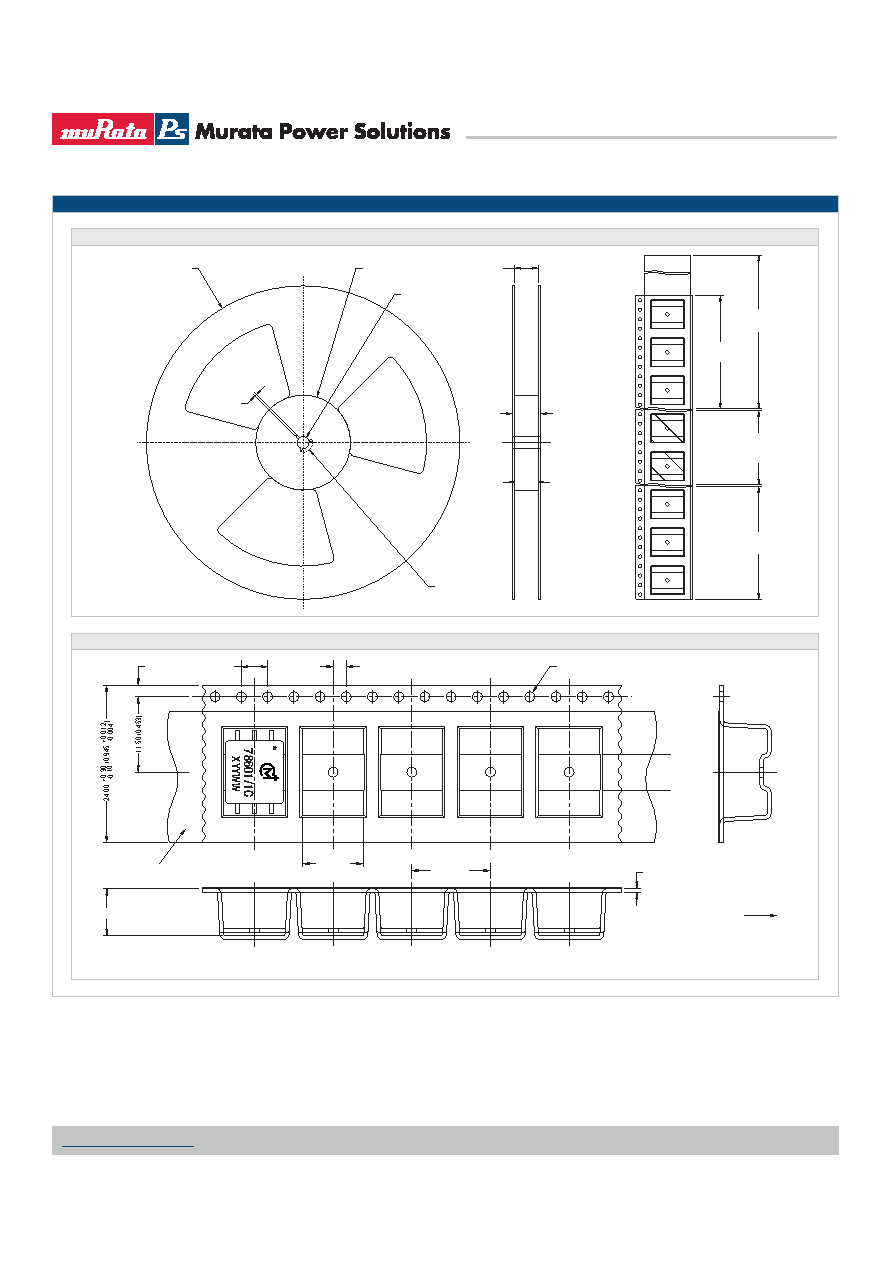

TAPE & REEL SPECIFICATIONS

REEL OUTLINE DIMENSIONS

TAPE OUTLINE DIMENSIONS

30.4

(1.20) Max.

23.9-27.4 (0.94-1.08)

13.50 (0.53)

12.80 (0.50)

1.50 (0.059)

Min.

60 (2.36) Min.

20.20 (0.80) Min.

100 (3.9)

Min.

Leader section

400 (15.7) Min.

Goods

enclosure

section

Trailer section

160 (6.3) Min.

Ø382 (15.039) Min.

24.4 (0.96)

26.4 (1.04)

Unless otherwise stated all

dimensions in mm (inches) ± 0.25 (0.01).

* Includes ﬂange distortion at outer edge.

Measured at hub.

0.60 (0.024) Max.

7.20 (0.283)

9.37 (0.369)

Direction of unreeling

1.75 (0.069)

4.00 (0.157)

2.00 (0.079)

12.00 (0.472)

Cover tape

1.50

(0.059

)

+0.004

-0.000

+0.10

-0.00

Unless otherwise stated all

dimensions in mm (inches) ± 0.25 (0.01).
