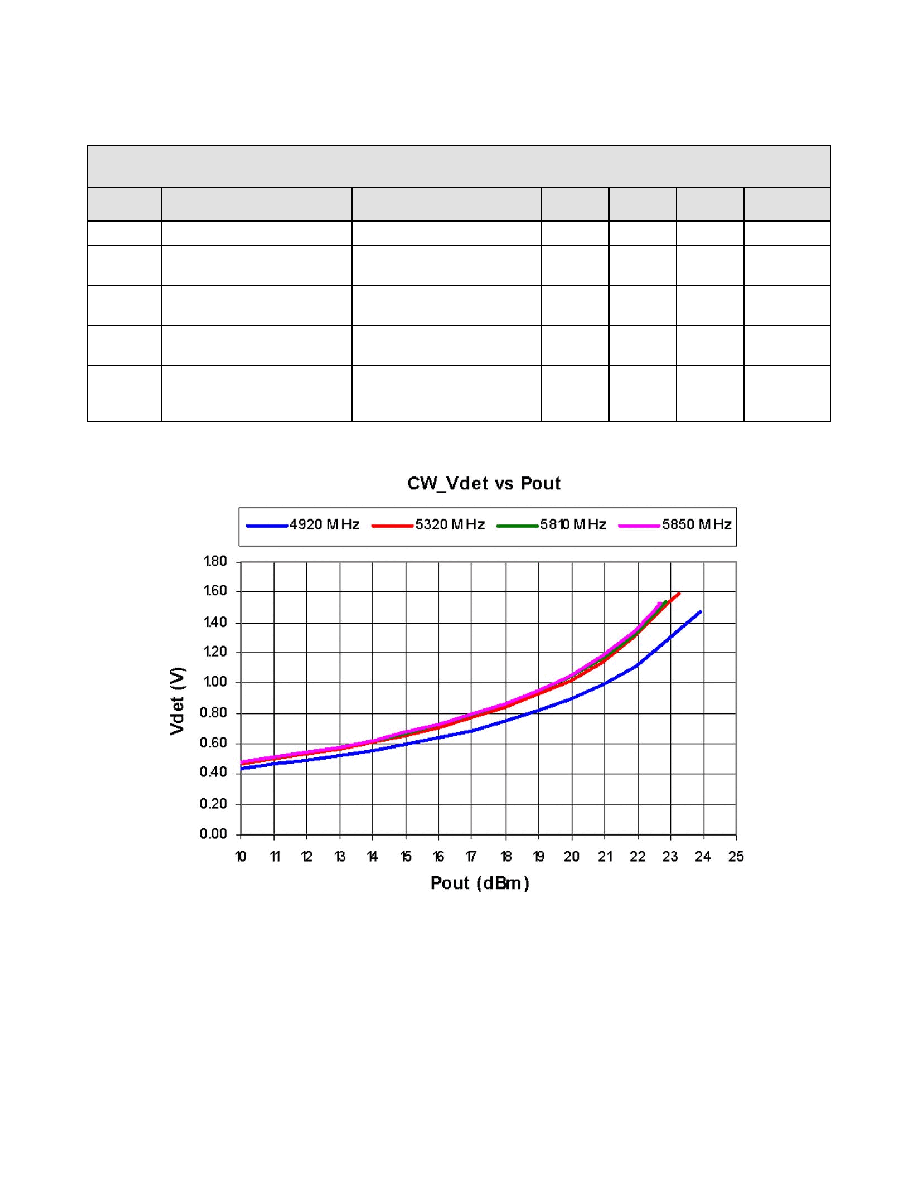

Figure 4. SE2595L 5 GHz Power Detector Characteristics

PDZload

DC load impedance

2.7

3

kΩ

PDVp20

Output voltage, POUT= 17 dBm

0.80

V

PDVp0

Output voltage, POUT= 3 dBm

0.34

V

PDVpnoRF

Output voltage, POUT= No RF

0.32

V

LPF-3dB

(Note 3)

Power detect low pass filter -3 dB cor-

ner frequency

Load = high impedance Typ: 500 kΩ

270

300

400

kHz

Table 13. SE2595L 5 GHz Power Detector Characteristics

Conditions: VCC = 3.3 V, ENa = TX = 3.3 V, V_LNA = RX = ENg = 0 V, TA = 25 °C as measured on Skyworks Solutions SE2595L-EV1

evaluation board (de-embedded to device), all unused ports terminated with 50 ohms, unless otherwise noted.

Symbol

Parameter

Condition

Min.

Typ.

Max.

Unit
