SPEC NO: DSAK9790

REV NO: V.4B

DATE: MAR/25/2013

PAGE: 1 OF 6

APPROVED: WYNEC

CHECKED: Allen Liu

DRAWN: Y.Liu

ERP: 1201006663

4.0x4.0mm RIGHT ANGLE SURFACE MOUNT

LED LAMP

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Part Number: KA-4040ZGS-G

Green

Features

Single color.

Suitable for all SMT assembly and solder process.

Available on tape and reel.

Ideal for backlighting.

Package : 500pcs / reel.

Moisture sensitivity level : level 3.

RoHS compliant.

Description

The Green source color devices are made with InGaN Light

Emitting Diode.

Static electricity and surge damage the LEDS.

It is recommended to use a wrist band or anti-electrostatic

glove when handling the LEDs.

All devices, equipment and machinery must be electrically

grounded.

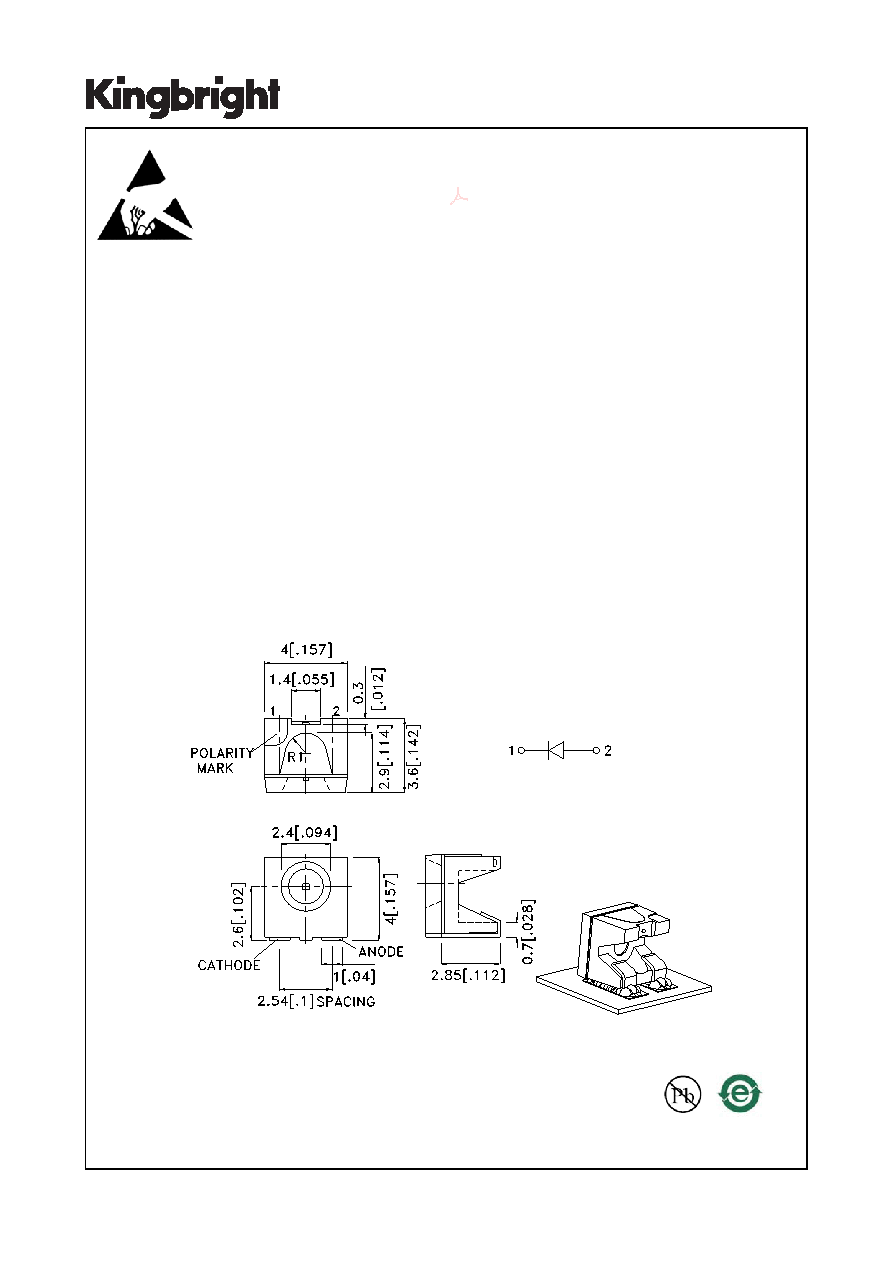

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25(0.01") unless otherwise noted.

3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

4. The device has a single mounting surface. The device must be mounted according to the specifications.
