Data Sheet
ADA4932-1/ADA4932-2
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. F | 12 of 27

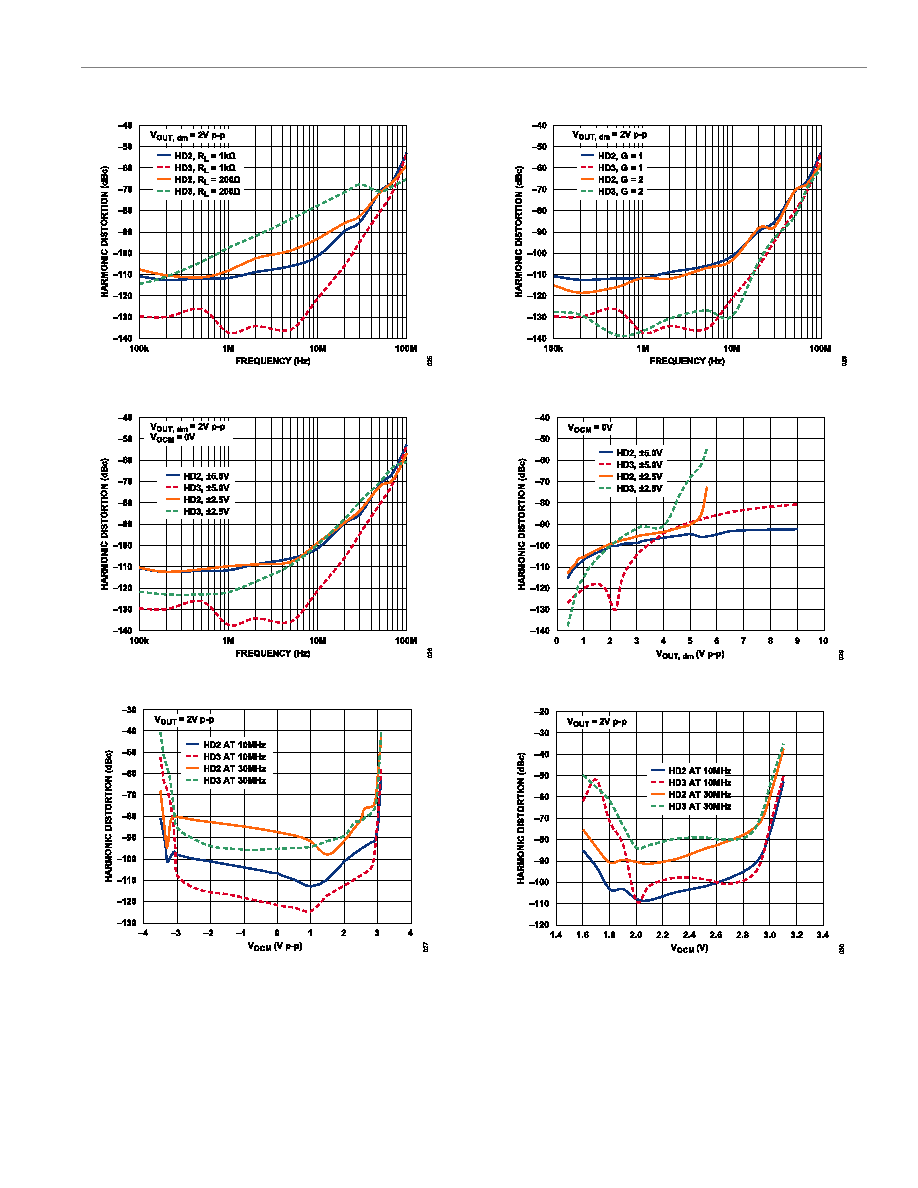

Figure 24. Harmonic Distortion vs. Frequency at Various Loads
Figure 25. Harmonic Distortion vs. Frequency at Various Supplies
Figure 26. Harmonic Distortion vs. VOCM at Various Frequencies, ±5 V
Supplies
Figure 27. Harmonic Distortion vs. Frequency at Various Gains
Figure 28. Harmonic Distortion vs. VOUT, dm and Supply Voltage, f = 10 MHz
Figure 29. Harmonic Distortion vs. VOCM at Various Frequencies, +5 V Supply
