Data Sheet
ADL5906
THEORY OF OPERATION
analog.com
Rev. B | 26 of 30

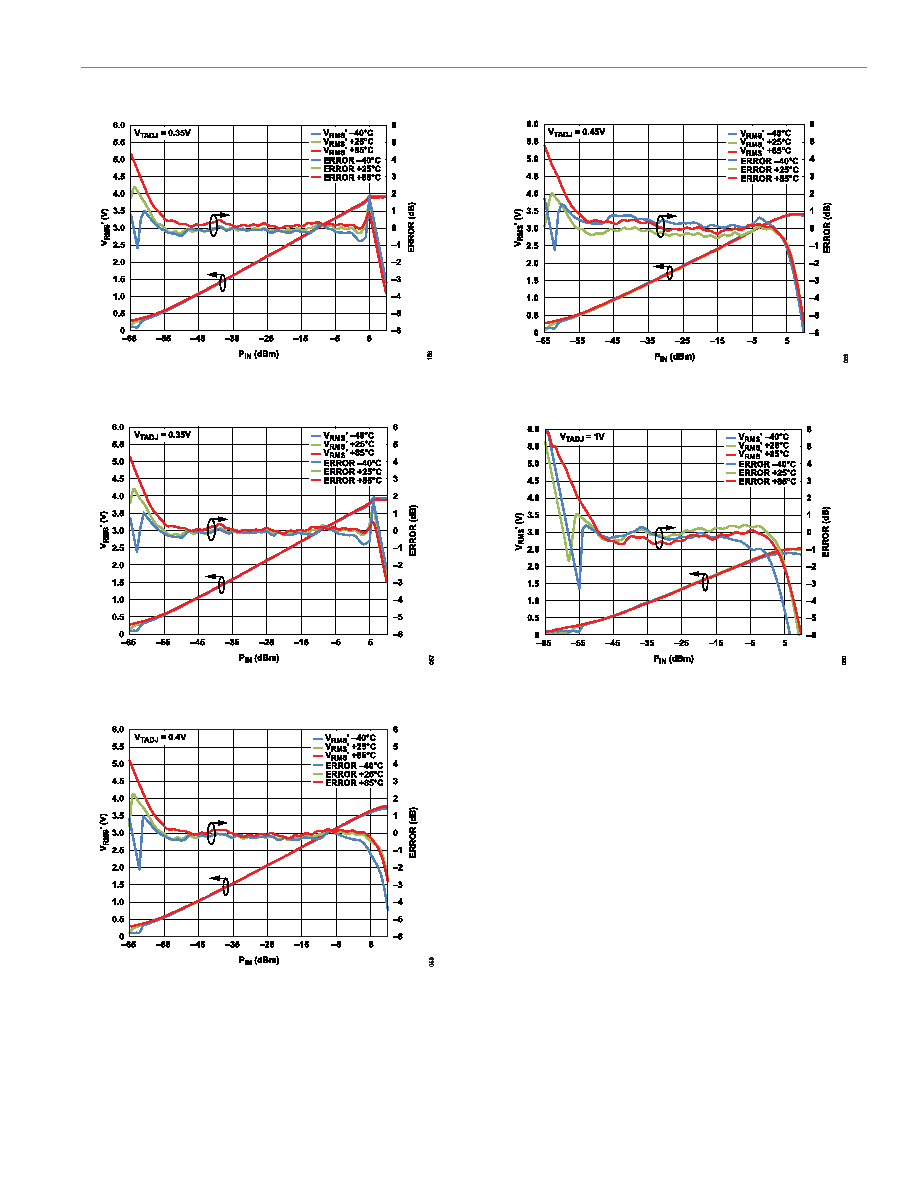

Figure 58. VRMS′ and Log Conformance Error vs. Input Level and
Temperature at 1900 MHz Using VTEMP Intercept Compensation
Figure 59. VRMS′ and Log Conformance Error vs. Input Level and
Temperature at 2140 MHz using VTEMP Intercept Compensation
Figure 60. VRMS′ and Log Conformance Error vs. Input Level and
Temperature at 2600 MHz Using VTEMP Intercept Compensation
Figure 61. VRMS′ and Log Conformance Error vs. Input Level and
Temperature at 3500 MHz Using VTEMP Intercept Compensation
Figure 62. VRMS′ and Log Conformance Error vs. Input Level and
Temperature at 5800 MHz Using VTEMP Intercept Compensation
