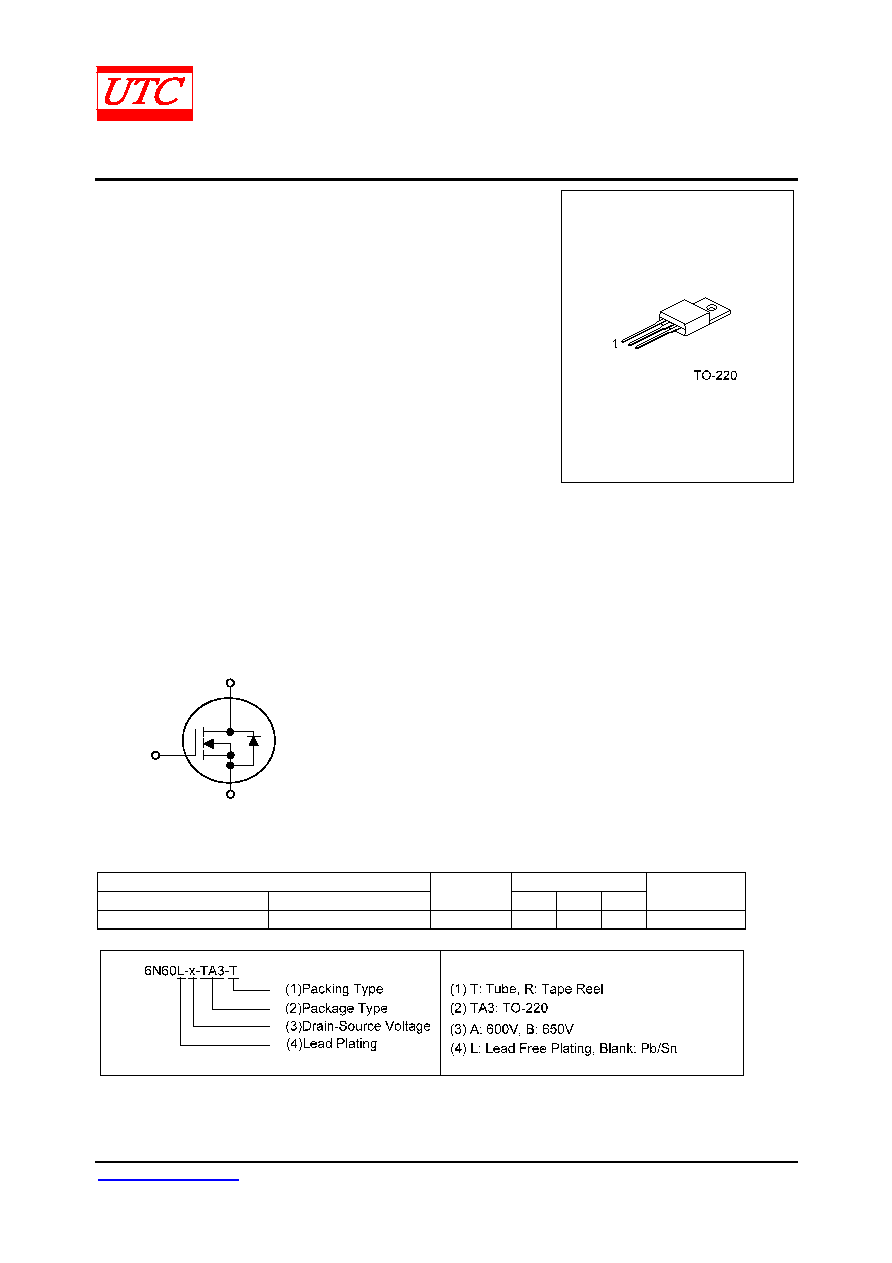

UNISONIC TECHNOLOGIES CO., LTD

6N60

Power MOSFET

www.unisonic.com.tw

1 of 7

Copyright © 2007 Unisonic Technologies Co., Ltd

QW-R502-117.A

6.2 Amps, 600/650 Volts

N-CHANNEL MOSFET

DESCRIPTION

The UTC 6N60 is a high voltage MOSFET and is designed to

have better characteristics, such as fast switching time, low gate

charge, low on-state resistance and have a high rugged avalanche

characteristics. This power MOSFET is usually used at high speed

switching applications in switching power supplies and adaptors.

FEATURES

* Ultra low gate charge (typical 20 nC )

* Fast switching capability

* Avalanche energy tested

* Improved dv/dt capability, high ruggedness

SYMBOL

1.Gate

3.Source

2.Drain

*Pb-free plating product number: 6N60L

ORDERING INFORMATION

Ordering Number

Pin Assignment

Normal

Lead Free Plating

Package

1

2

3

Packing

6N60-x-TA3-T

6N60L-x-TA3-T

TO-220

G

D

S

Tube
