www.lansdale.com

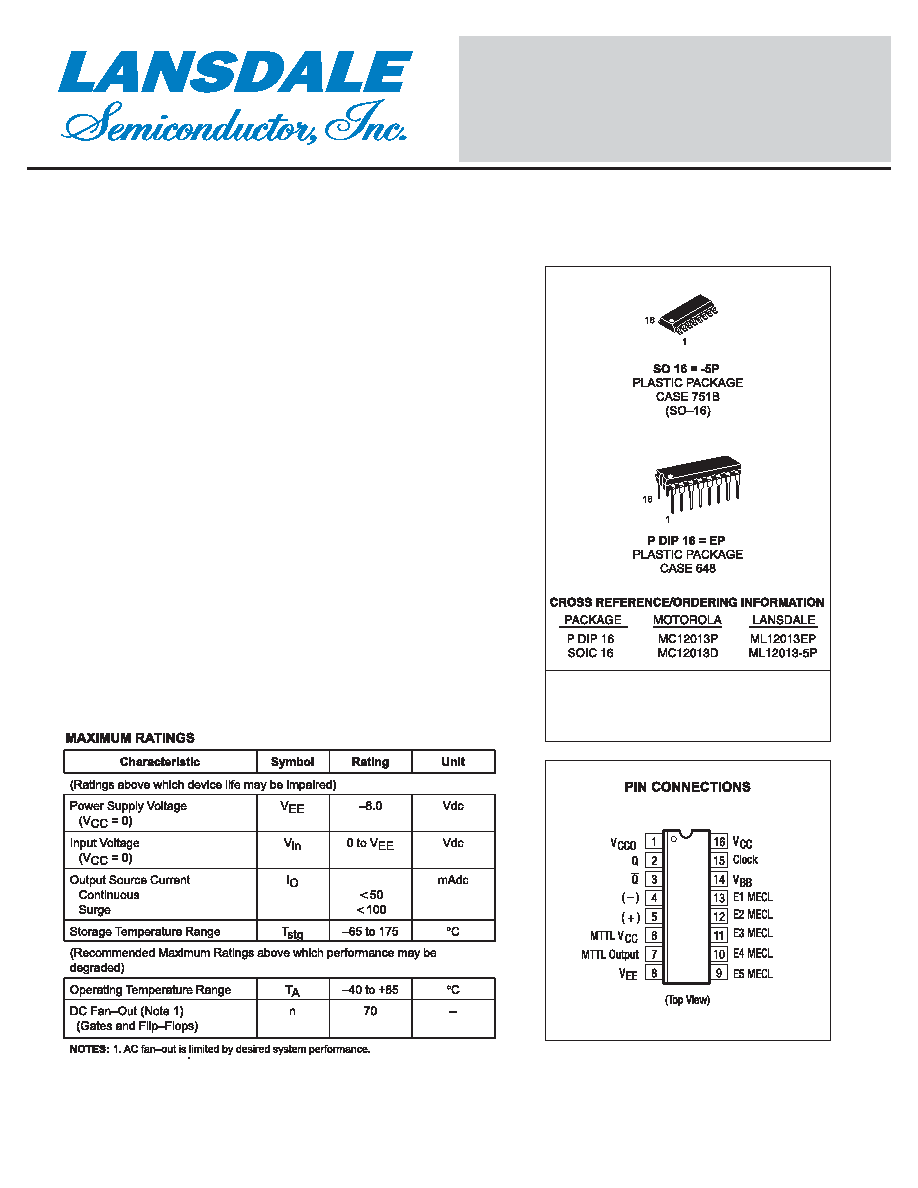

Page 1 of 15

Issue A

ML12013

MECL PLL Components

Dual Modulus Prescaler

Legacy Device: Motorola MC12013

This device is a two–modulus prescaler which will divide by 10

and 11. A MECL–to–MTTL translator is provided to interface

directly with the MC12014 Counter Control Logic. In addition,

there is a buffered clock input and MECL bias voltage source.

• 550 MHz (÷10/11)

• MECL to MTTL Translator on Chip

• MECL and MTTL Enable Inputs

• 5.0 or –5.2 V Operation*

• Buffered Clock Input — Series Input RC Typ, 20

Ω and 4.0 pF

• VBB Reference Voltage

• 310 Milliwatts (Typ)

* When using a 5.0 V supply, apply 5.0 V to Pin 1

(VCCO), Pin 6 (MTTL VCC), Pin 16 (VCC), and ground

Pin 8 (VEE). When using –5.2 V supply, ground Pin 1

(VCCO), Pin 6 (MTTL VCC), and Pin 16 (VCC) and apply

–5.2 V to Pin 8 (VEE). If the translator is not required, Pin

6 may be left open to conserve DC power drain.

Note: Lansdale lead free (Pb) product, as it

becomes available, will be identified by a part

number prefix change from ML to MLE.
