ADS310-R680EIRM datasheet(1/5 Pages) DFI

Part #	ADS310-R680EIRM

Description	14th/13th/12th Gen Intel® CoreTM microATX

PDF	5 Pages

Scroll/Zoom	100%

Manufacturer	DFI [DFI Inc]

Direct Link	https://www.dfi.com/

Logo

1 / 5 page

14th/13th/12th Gen Intel® CoreTM

microATX

KEY FEATURES

DDR4

4K High

Resolution

Quad

Displays

Multiple

Expansion

Rich I/O

4 DDR4 UDIMM up to

128GB

Supports 4K resolution

VGA, 2 DP++, HDMI 2.0a

1 PCIe x16, 3 PCIe x4,

1 M.2 E key, 2 M.2 M key,

4 SATA 3.0

2 Intel 10GbE, 2 Intel

2.5GbE, 2 COM, 6 USB

3.2 Gen 2, 4 USB 3.2

Gen 1, 3 USB 2.0

Intel R680E/Q670E

Chipset

DDR4 UDIMM

System Fan 3

ADS310-R680E

ADS310-Q670E

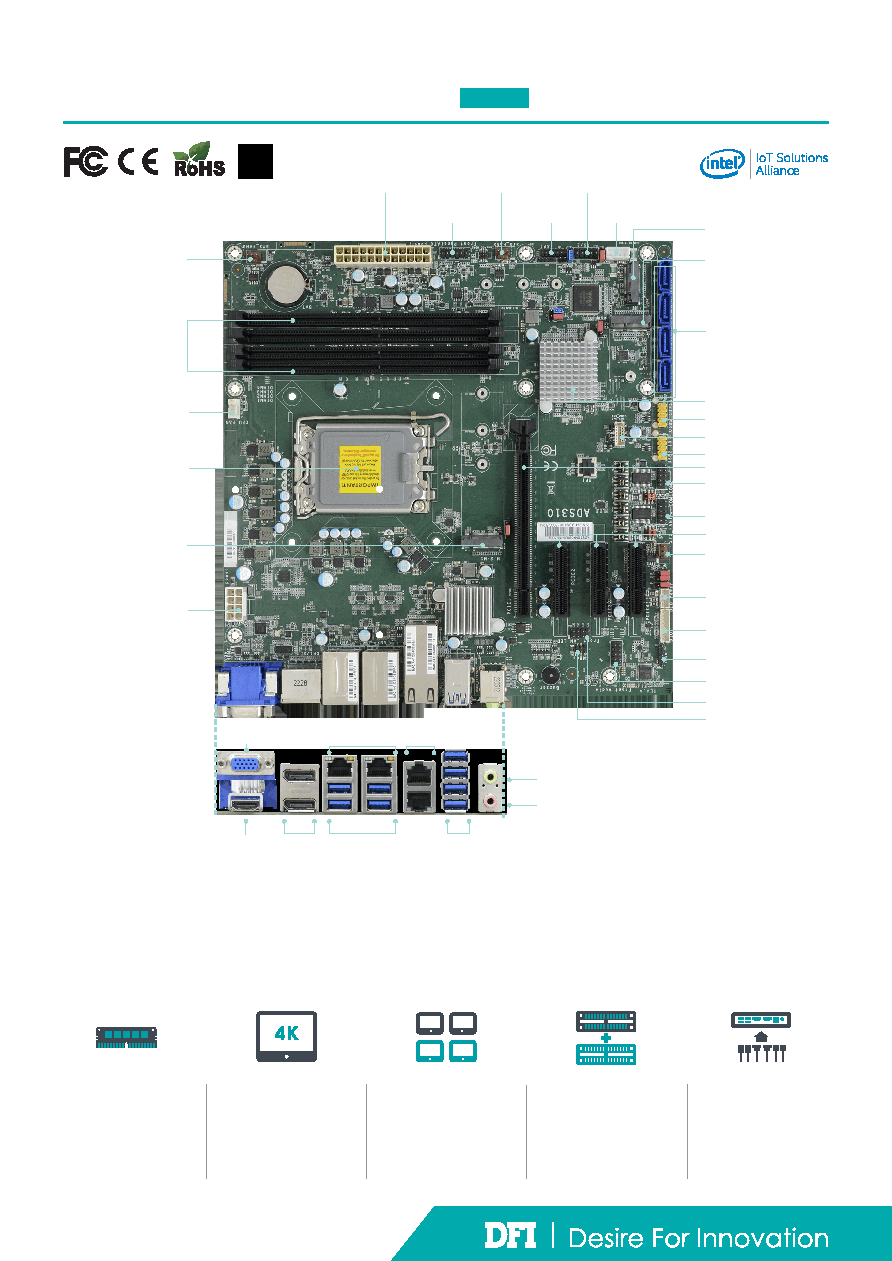

Top View

(ADS310-R680E)

12V ATX Power

System Fan 1

DIO Power

Desktop

VGA

Line-out

Mic-in

DP++

HDMI

2.5G

LAN 1/2

10G

LAN 1/2

USB 3.2

Gen2

LGA 1700

CPU Fan

ATX Power

USB 2.0 2x

SATA 0-3

Front Audio

16-bit DIO

PCIe x4

Front Panel

COM 1

System Fan 2

S/PDIF

USB 2.0 1x

M.2 2242/2260/2280

M key

USB 3.2 Gen1

COM 2

eSPI

PS2

SATA Power

M.2 E Key

M.2 2242/2260/2280

M key

USB 3.2 Gen2 2x

Front LAN LED

PCIe x16

SMBus
