RPSPIC-R680E datasheet(1/5 Pages) DFI

Part #	RPSPIC-R680E

Description	14th/13th/12th Gen Intel® CoreTM Full Size PICMG 1.3

PDF	5 Pages

Scroll/Zoom	100%

Manufacturer	DFI [DFI Inc]

Direct Link	https://www.dfi.com/

Logo

1 / 5 page

USB 2.0

SMBus

DIO

M.2

M Key

M.2

A Key

Intel® R680E

Chipset

LGA1700

ATX 12V

power

Front

Audio

Front

Panel

DDR5 UDIMM

USB 3.2

Gen2

COM

1~4

SATA

3.0

System

Fan1

M.2

E Key

eSPI

2.5G LAN

VGA

USB 3.2

Gen2

SATA

Power

KEY FEATURES

DDR5

2K Resolution

Triple

Displays

Multiple

Expansion

Rich I/O

2/4 DDR5 UDIMM up to

96G/192GB

Supports up to 2K reso-

lution

DVI-I(colay VGA),

2 DFI display module

1 M.2 E Key (USB/PCIe/

CNVi), 1 M.2 M Key (PCIe),

1 M.2 A Key for M2A-OOB

2 Intel 2.5GbE, 4 COM,

6 USB 3.2 Gen2,

2 USB 2.0, 6 SATA 3.0

RPSPIC-R680E

RPSPIC-H610E

RPSPIC-R680E

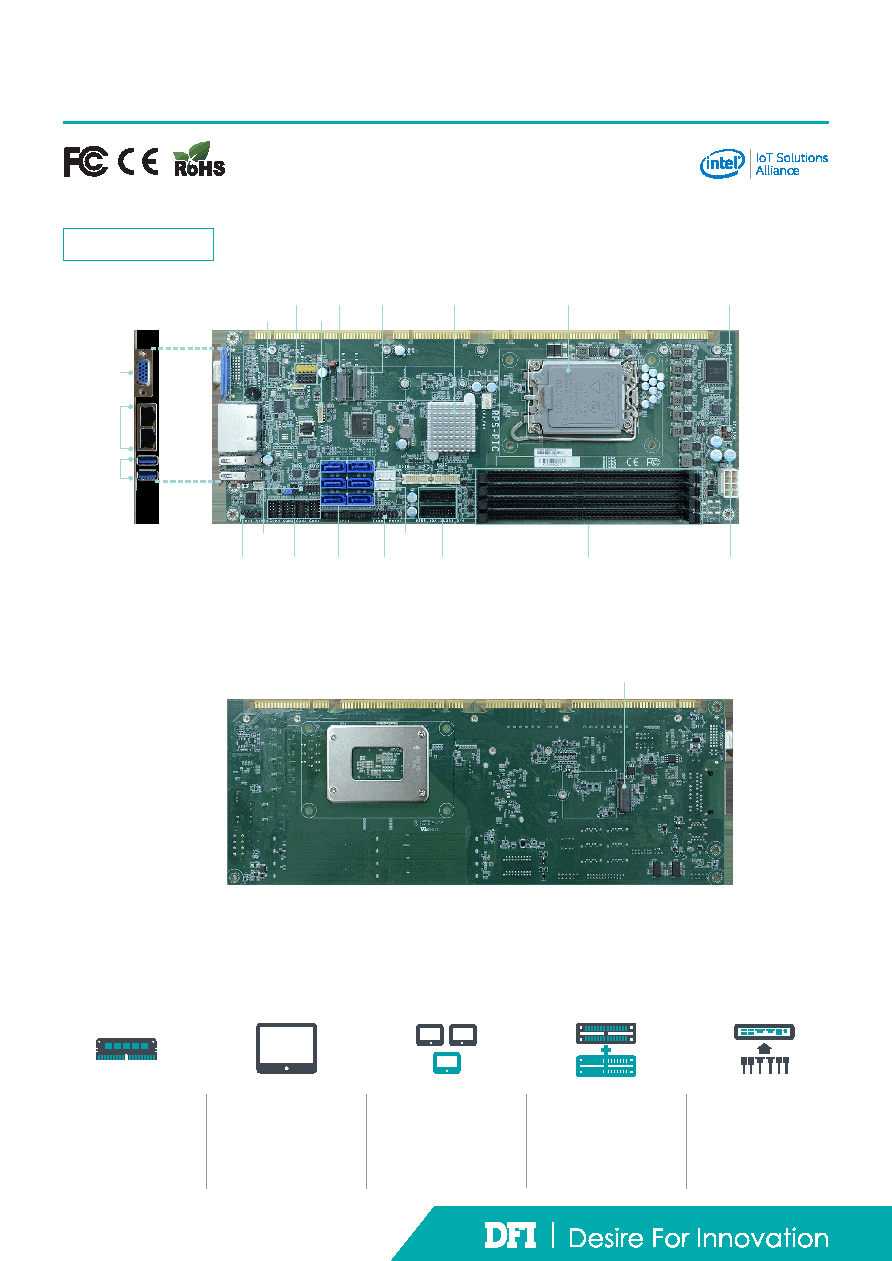

Top View

Bottom View

2K

14th/13th/12th Gen Intel® CoreTM

Full Size PICMG 1.3
