TPS853
2007-10-01
3

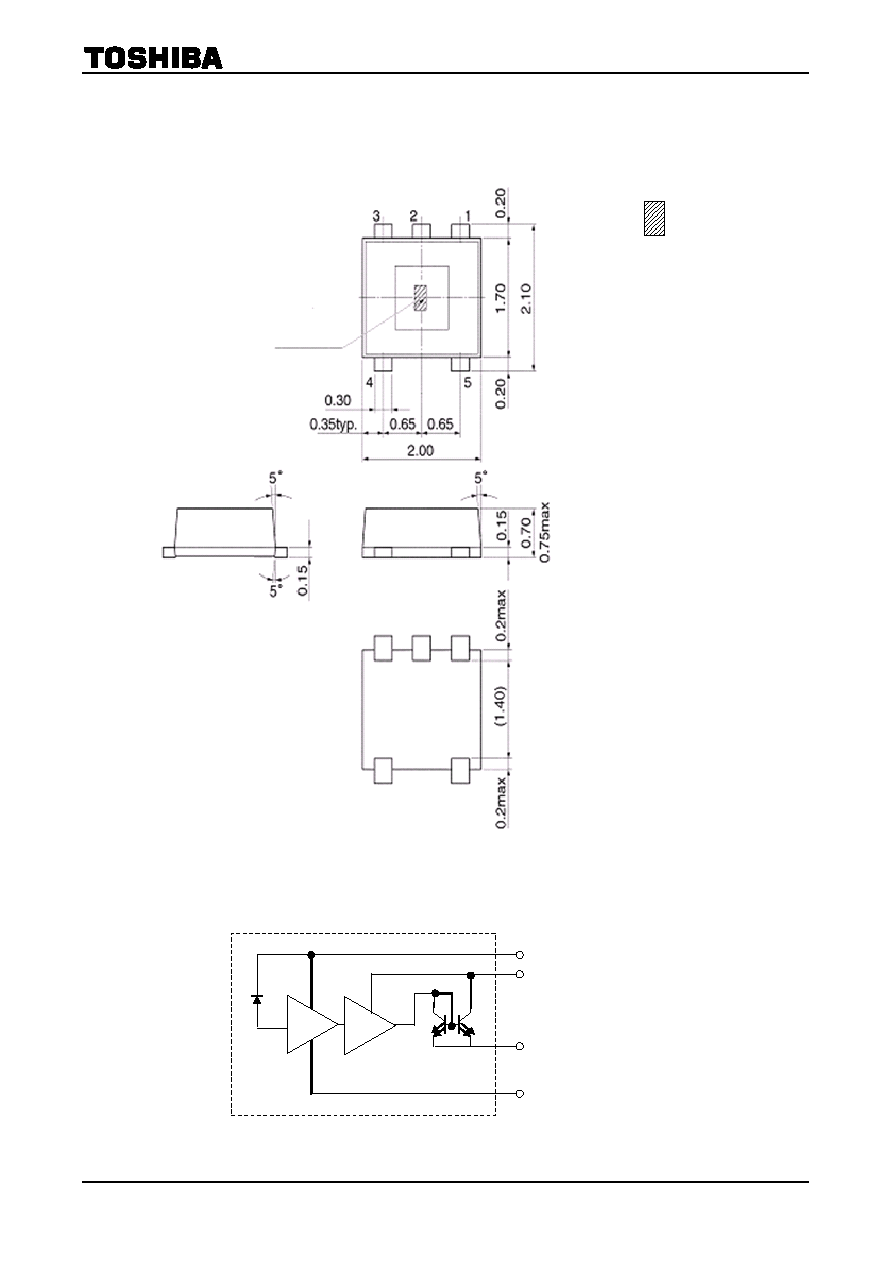

Package Dimensions
Weight: 0.0054 g (typ.)
Block Diagram
: Light-receiving area
Size of light-receiving area:
(0.51x0.13 mm)
Unit: mm
Tolerance:
±0.1
( ): Reference value
Pin connection
1. VCC
2. GND
3. NC
4. Vstb
5. OUT
Center of receiving area
1. VCC
5. OUT
2. GND
3. NC
4. Vstb
