2SD2353

2006-11-21

1

TOSHIBA Transistor Silicon NPN Triple Diffused Type

2SD2353

Power Amplifier Applications

Characteristics

Symbol

Rating

Unit

Collector-base voltage

60

V

Collector-emitter voltage

60

V

Emitter-base voltage

7

V

DC

3

Collector current

Pulse

6

A

Base current

0.6

A

Ta = 25°C

2

Collector power

dissipation

Tc = 25°C

25

W

Junction temperature

150

°C

Storage temperature range

−55 to 150

°C

Note: Using continuously under heavy loads (e.g. the application of high

temperature/current/voltage and the significant change in

temperature, etc.) may cause this product to decrease in the

reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are

within the absolute maximum ratings.

Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook

(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report

and estimated failure rate, etc).

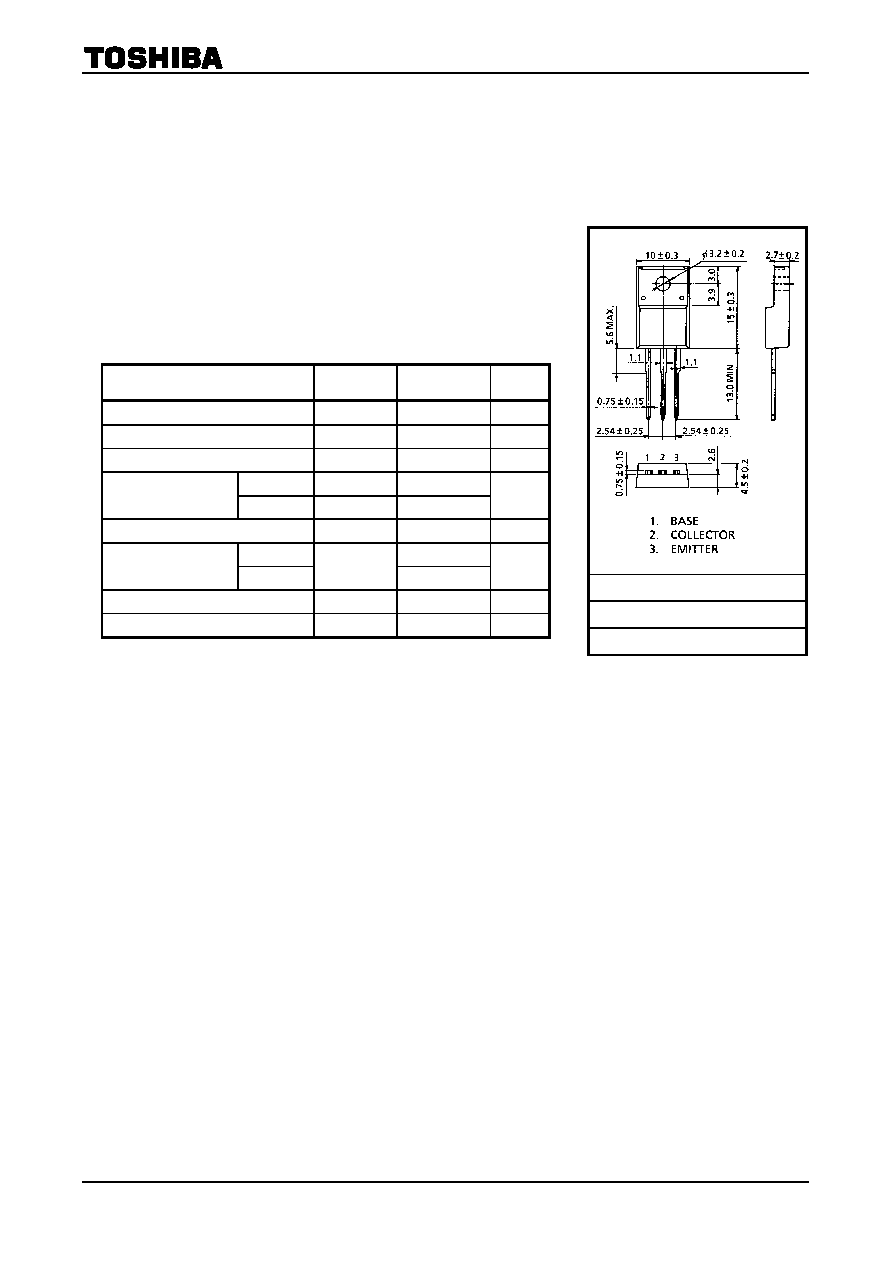

Unit: mm

JEDEC

―

JEITA

SC-67

TOSHIBA

2-10R1A

Weight: 1.7 g (typ.)
