SRP0610F Series – Shielded Power Inductors

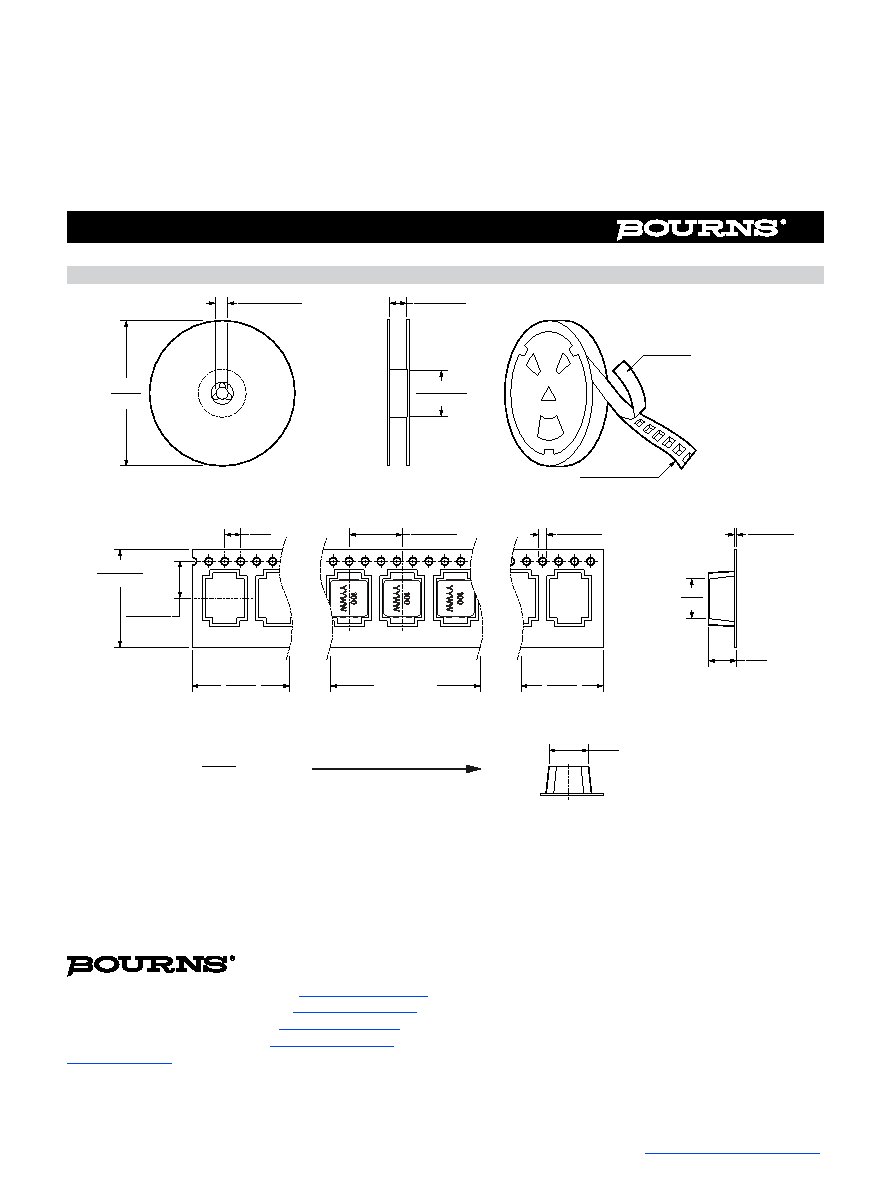

Packaging Specifications

COVER TAPE

EMBOSSED CARRIER

100 ± 2

(3.937 ± .079)

16.0 ± 0.3

(.630 ± .012)

7.5 ± 0.1

(.295 ± .004)

6.45

(.254)

4

(.157)

1.1

(.043)

6.4

(.252)

330

(12.992)

13.5 +0.5/-0.2

(.531 +.020/-.008)

16.4 +2/-0

(.646 +.079/-0)

1.5 ± 0.1

(.059 ± .004)

0.35 ± 0.05

(.014 ± .002)

12.0 ± 0.1

(.472 ± .004)

USER DIRECTION OF FEED

QTY: 3,500 PCS. PER REEL

DIA.

200

(7.874)

MIN.

LEADER

NO COMPONENT

COMPONENTS

400

(15.748)

MIN.

TRAILER

NO COMPONENT

DIMENSIONS:

MM

(INCHES)

REV� 09/24
