Data Sheet
AD4050/AD4056
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 16 of 67

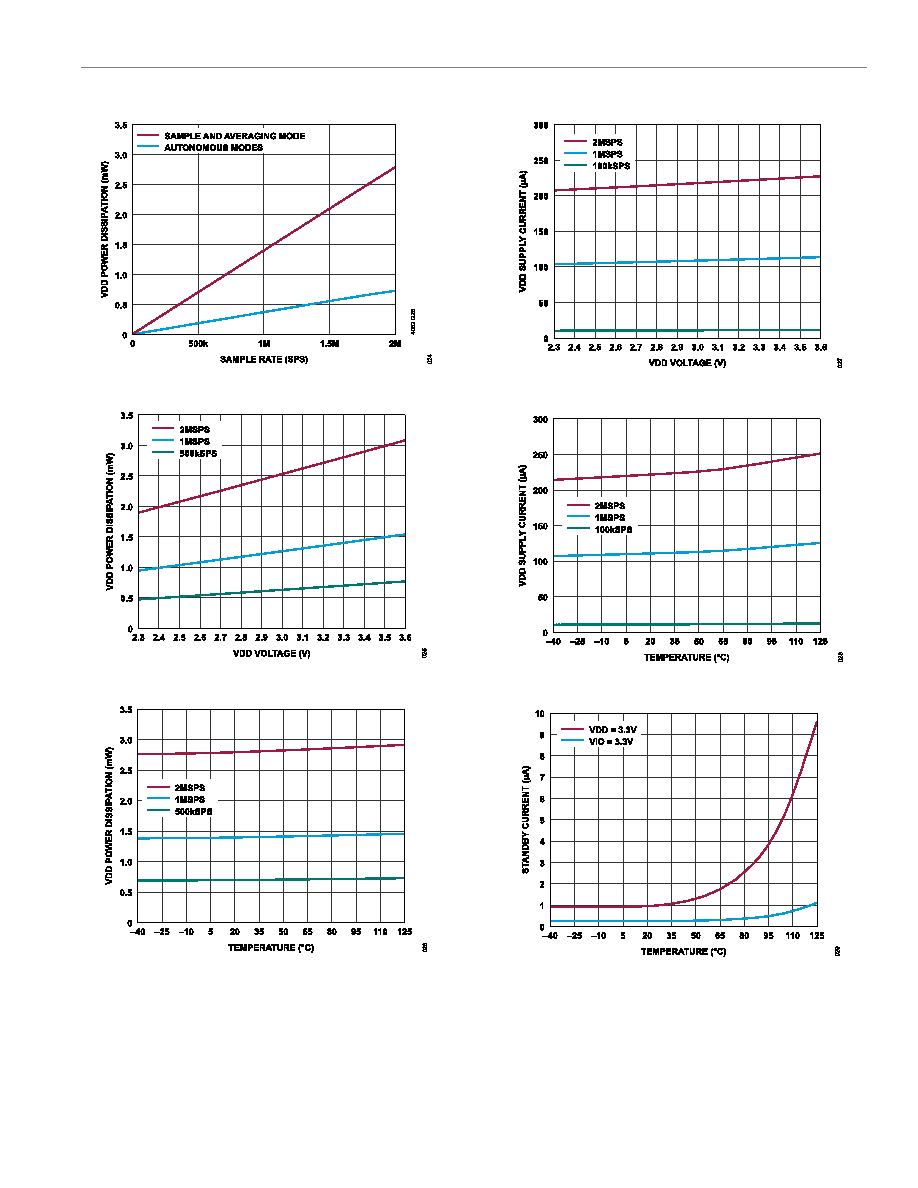

Figure 24. VDD Power Dissipation vs. Sample Rate
Figure 25. VDD Power Dissipation vs. VDD Voltage
Figure 26. VDD Power Dissipation vs. Temperature
Figure 27. VDD Supply Current vs. VDD Voltage (Autonomous Modes)
Figure 28. VDD Supply Current vs. Temperature (Autonomous Modes)
Figure 29. Standby Current vs. Temperature
