STDRIVE102BHTR Datasheet(PDF) 1 Page - STMicroelectronics |
|
|
|||||||||||||||||||||||||||||
STDRIVE102BHTR Datasheet(HTML) 1 Page - STMicroelectronics |
|
|

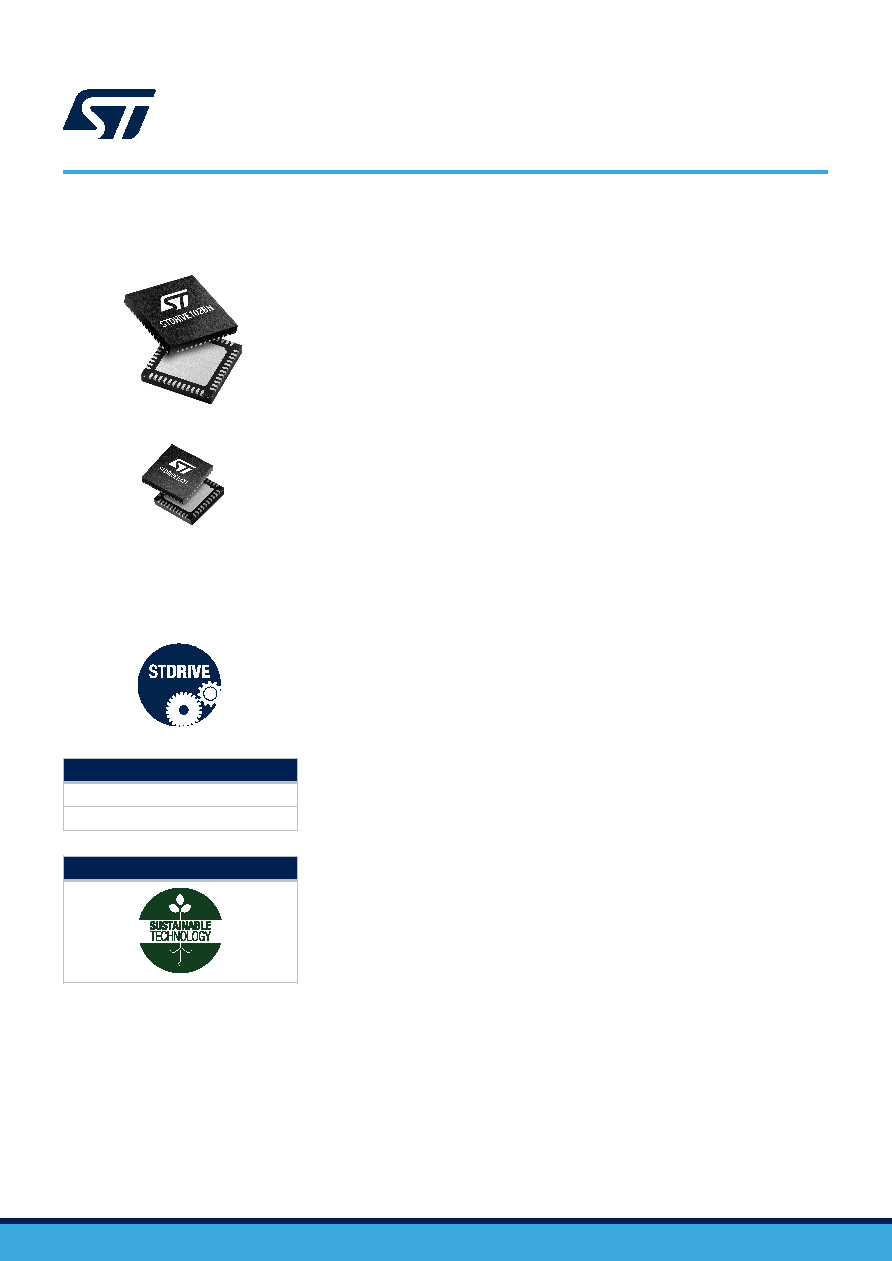

1 / 56 page  Features • Operating voltage from 6 to 50 V • Gate drivers with programmable current capability up to: – 1 A source current – 2 A sink current • High robustness against below-ground and overshoot • Charge pump for 100 % duty cycle operation with dedicated undervoltage lockout protection • Flexible power management: – 12 V LDO linear regulator with dedicated undervoltage lockout protection – 3.3 V LDO linear regulator with dedicated undervoltage lockout protection • Standby mode for low consumption less than 50 nA • Thermal shutdown protection • VDS monitoring for safe driving operation of the power MOSFETs • Flexible analog front-end: – Up to three wide-bandwidth operational amplifiers – Up to three high-speed comparators • Dual control modes: – ENx/INx – INHx/INLX with interlocking • Matched propagation delay for all channels • Logic inputs up to 5 V, TTL compatible Applications • Battery supplied power tools • Portable vacuum cleaners • E-bikes • Industrial automation • Robotics • Pumps and fans Description The STDRIVE102BH and the STDRIVE102H are triple half-bridge gate drivers suitable for 3-phase brushless motor driving. The STDRIVE102BH/H is the optimal solution for battery supplied motor driver applications such as power tools, vacuum cleaner and small appliances thanks to its very efficient stand-by mode, that strongly reduce the current consumption when the device is not active. VFQFPN 48L, 6x6x1 mm VFQFPN 40L, 5x5x1 mm Product status link STDRIVE102BH STDRIVE102H Product label Triple half-bridge gate driver with programmable currents STDRIVE102BH, STDRIVE102H Datasheet DS14545 - Rev 1 - March 2025 For further information, contact your local STMicroelectronics sales office. www.st.com |
