Setting a New Benchmark In Performance

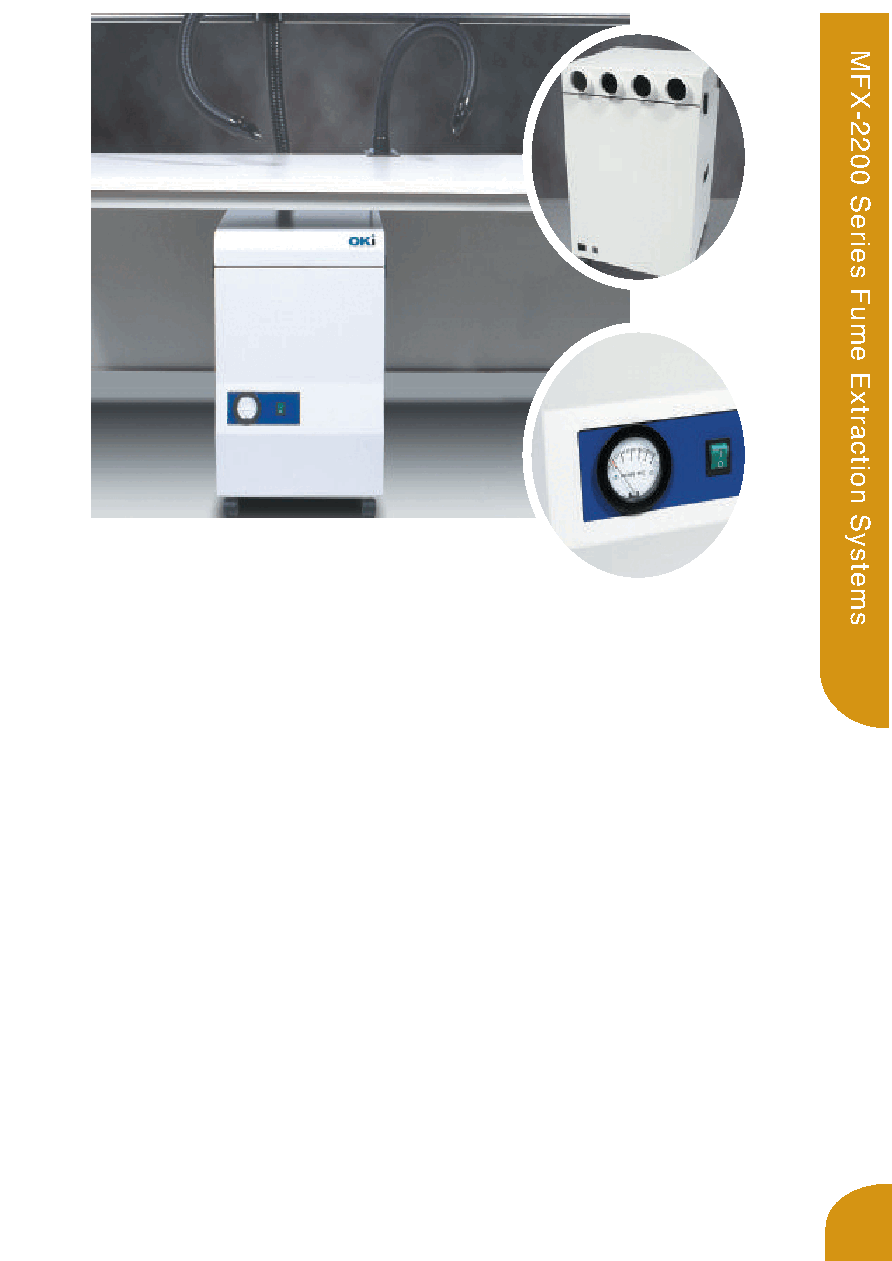

OKInternational'smulti-userMFX-2200SeriesFumeExtractionSystemssetanewbenchmarkin

performance,deliveringamaximumairflowof900m3/handamaximumsuctionforceof1,075Pa.

Capableofprovidingfiltrationforuptoeightmanualassemblyworkstations,theMFX-2200SeriesFume

ExtractionSystems'powercanalsobeharnessedtoremoveparticulatesandgasesfromexhaustcabinets

andevensmallbench-topwaveandreflowsolderingovens.

Forgeneralelectronicsassemblyapplications,acombinedfiltrationmodelfeaturespre,HEPA(99.97%

efficient@0.3µm)andgasfilters.Formorespecificapplications,suchasremovingsolventvapoursfrom

bondingandunder-filloperations,agasfiltrationmodelisavailablefeaturingapre-filterand11kghigh

capacityactivatedcarboncartridge.

Measuring450mmwide,by525mmdeepand670mmtall,theunitcanaccepteithera457mmby406mmby

120mmHEPAfilterortheactivatedcarbonfilter.Duetothesizeofthefilter,theMFX-2200SeriesFume

ExtractionSystemscanprocessmorefumesforsubstantiallylongerperiodsbeforerequiringafilterchange,

therebyreducingmaintenancecostsandworkplacedisruption.
