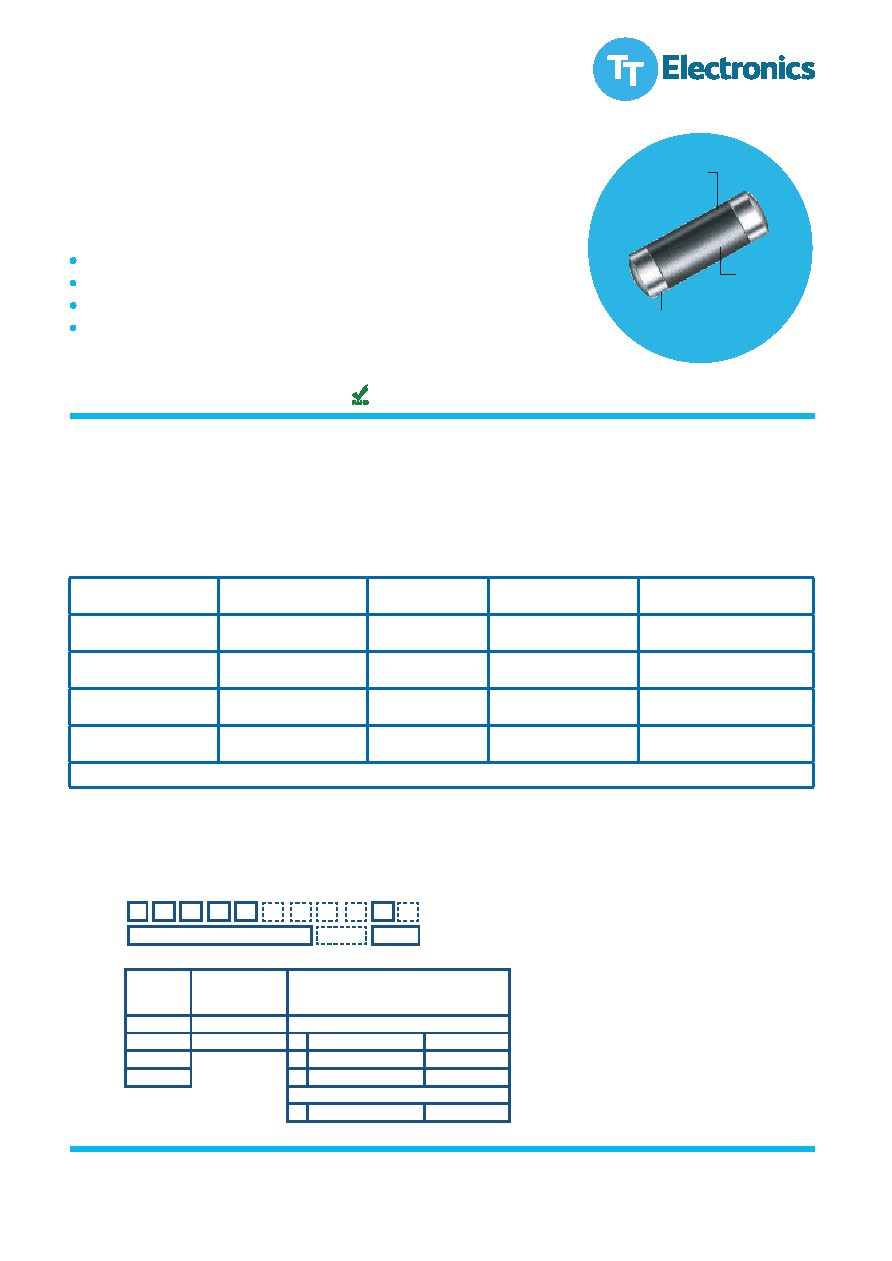

Cylindrical Surface Mount

Zerohm Jumpers

ZCHP Series

Reliable Metal Glaze™ technology

Available in all standard CHP sizes

Superb solderability - reflow and wave

Operating temperature -55°C to +150°C

General Note

IRC reserves the right to make changes in product specification without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

A subsidiary of

TT electronics plc

• 4222 South Staples Street • Corpus Christi Texas 78411 USA

© IRC Wire and Film Technologies Division

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com

Metal Glaze™ thick

film element fired

at 1000°C to solid

ceramic substrate

High

temperature

dielectric

coating

Solder over nickel

barrier

Cylindrical Surface Mount

Zerohm Jumpers

Applications

ZCHP Series

• Reliable Metal Glaze™ technology

• Available in all standard CHP sizes

• Superb solderability - reflow and wave

• Operating temperature -55°C to +150°C

Electrical Data

Size Code

Industry Footprint

IRC Type

Maximum Resistance

(m

Ω)

Current Rating @ 25°C

(amps)²

B

1206

ZCHP 1/8

20

3

D

2010

ZCHP 1/2

30

4

F

2512

ZCHP 1

35

5

H

3610

ZCHP 2

35

6

² Derate current to "0" amps at 150°C.

Sample Part No.

IRC Type

(CHP 1/8, CHP 1/2, CHP 1, or CHP 2)

Packaging Code*

BLK = Bulk, 7 = 7" Reel, 13 = 13" Reel

Ordering Data

ZCHP 1 - 13

Zerohm Jumpers or Crossovers are basically interconnection devices bewtween points on a PC board. Typically, they are used

to connect two points on a PC board due to other circuit paths which must be crossed over. The XCHP Jumpers are available in

four case sizes and are supplied on tape and reel to support high volume placement.

ZCHP Series Issue September 2008 Sheet 1 of 1

Metal Glaze™ thick

film element fired

at 1000˚C to solid

ceramic substrate

High

temperature

dielectric

coating

Solder over nickel

barrier

Resistors

Ordering Procedure

Example: ZCHP1LF13 (ZCHP1, Pb-free)

Z C H P

1

L

F

1 3

1

2

3

1

2

3

Type

Termination

Packing

ZCHP1/8 Omit for SnPb

Standard packing

ZCHP1/2 LF = Pb-free 7

ZCHP1/8

2500/7” reel

ZCHP1

7

ZCHP1/2 & 1

1500/7” reel

ZCHP2

13

ZCHP2

1500/13” reel

Non-standard packing

13 ZCHP1/8, 1/2 & 1 5000/13” reel

06.18

General Note

TT Electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.

© TT Electronics plc

www.ttelectronics.com/resistors
