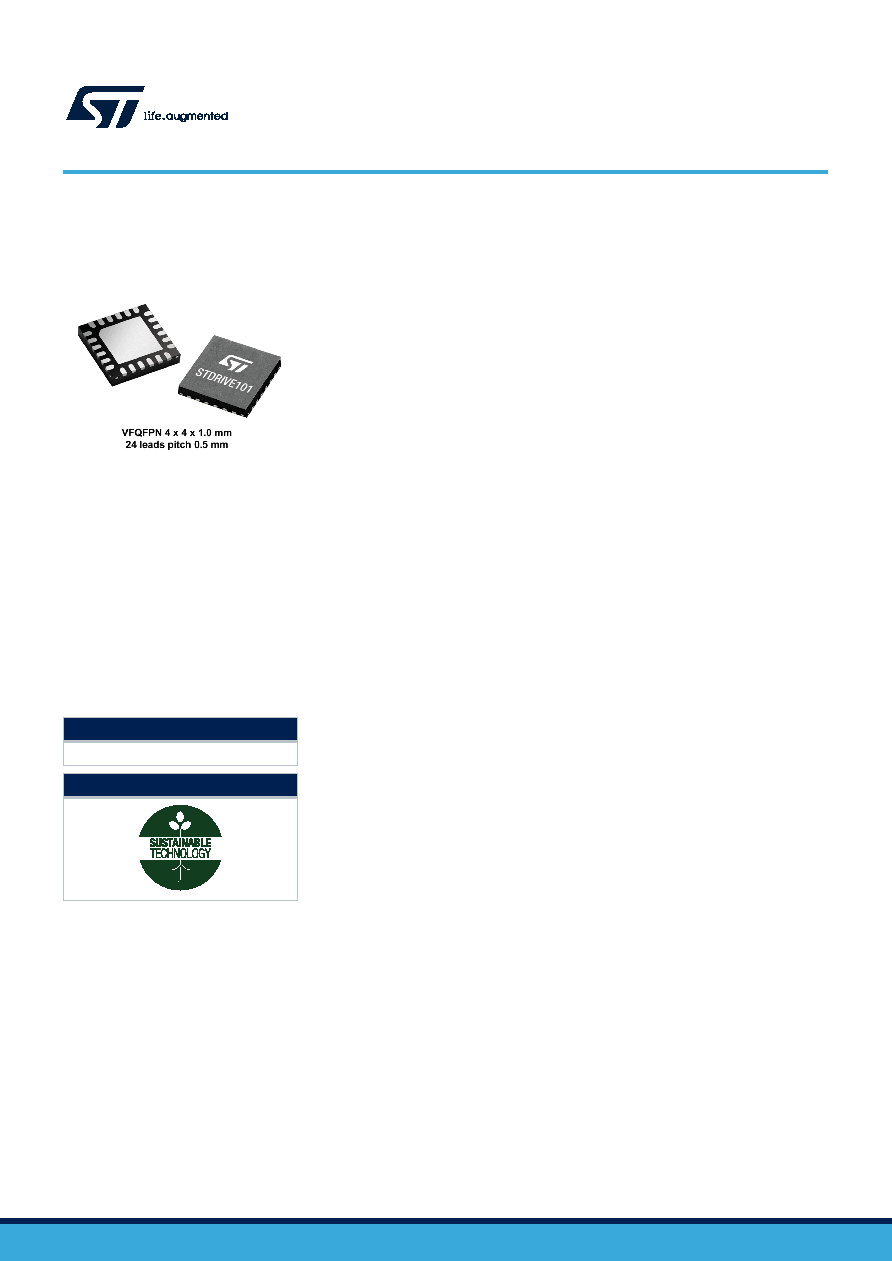

1 / 32 page  Features • Operating voltage from 5.5 to 75 V • 600 mA sink/source current capability • 3.3 V and 5 V control logic • Two input strategies: – ENx/INx with adjustable deadtime generation – INHx/INLx with interlocking • Matched propagation delay for all channels • Very short propagation delay: 40 ns • Integrated bootstrap diodes • 12 V LDO linear regulator (50 mA max.) • Embedded VDS monitor for each external MOSFET • Overcurrent comparator • UVLO and thermal shutdown protection • Standby mode for low current consumption operation Application • Home automation and appliances • e-bikes • Power tools • Fans and pumps • Industrial automation • Textile machines • Gaming and consoles Description The STDRIVE101 is a low voltage gate driver suitable for driving three-phase brushless motors. It is a single-chip with three half-bridge gate drivers for N-channel power MOSFETs. Each driver has a current capability of 600 mA (sink/source). It integrates a low drop linear regulator generating the supply voltage for both low-side and high-side gate drivers through a bootstrap circuitry. The device provides Under Voltage Lock Out (UVLO) on both the low-side and high- side sections, preventing the power switches from operating in low efficiency or dangerous conditions. The control logic integrated into the STDRIVE101 allows two input strategies (high- side and low-side or enable and PWM driving signals). The driving method is selected according to DT/MODE pin. In both cases, prevention from cross conduction is ensured by interlocking or internally generated deadtime. The STDRIVE101 also features a VDS monitoring protection for each external MOSFET, thermal shutdown and can be put in the standby mode to reduce the power consumption. The device is available in a VFQFPN 4x4 24 leads package option. Product status link STDRIVE101 Product label Triple half-bridge gate driver STDRIVE101 Datasheet DS13472 - Rev 1 - October 2020 For further information contact your local STMicroelectronics sales office. www.st.com |
