Type: CDH20D10

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/2

Power Inductors <SMD Type: CDH Series>

2.0±0.2

1.1 Max.

0.7

1.9

①

②

S

◆

Product Description

・

2.2×2.2 mm Max.(L×W),1.1mm Max. Height.

・

Inductance range: 0.50～5.6μH

・

Rated current range:0.49～1.65A

・

In addition to the standard versions of inductors shown here, custom inductors are available

to meet your exact requirements.

◆

Feature

・

Magnetically unshielded construction.

・

Ideally used in Mobile phone,PDA,MP3,DSC/DVC,Portable DVD etc as DC-DC Converter inductors.

・

RoHS Compliance.

◆

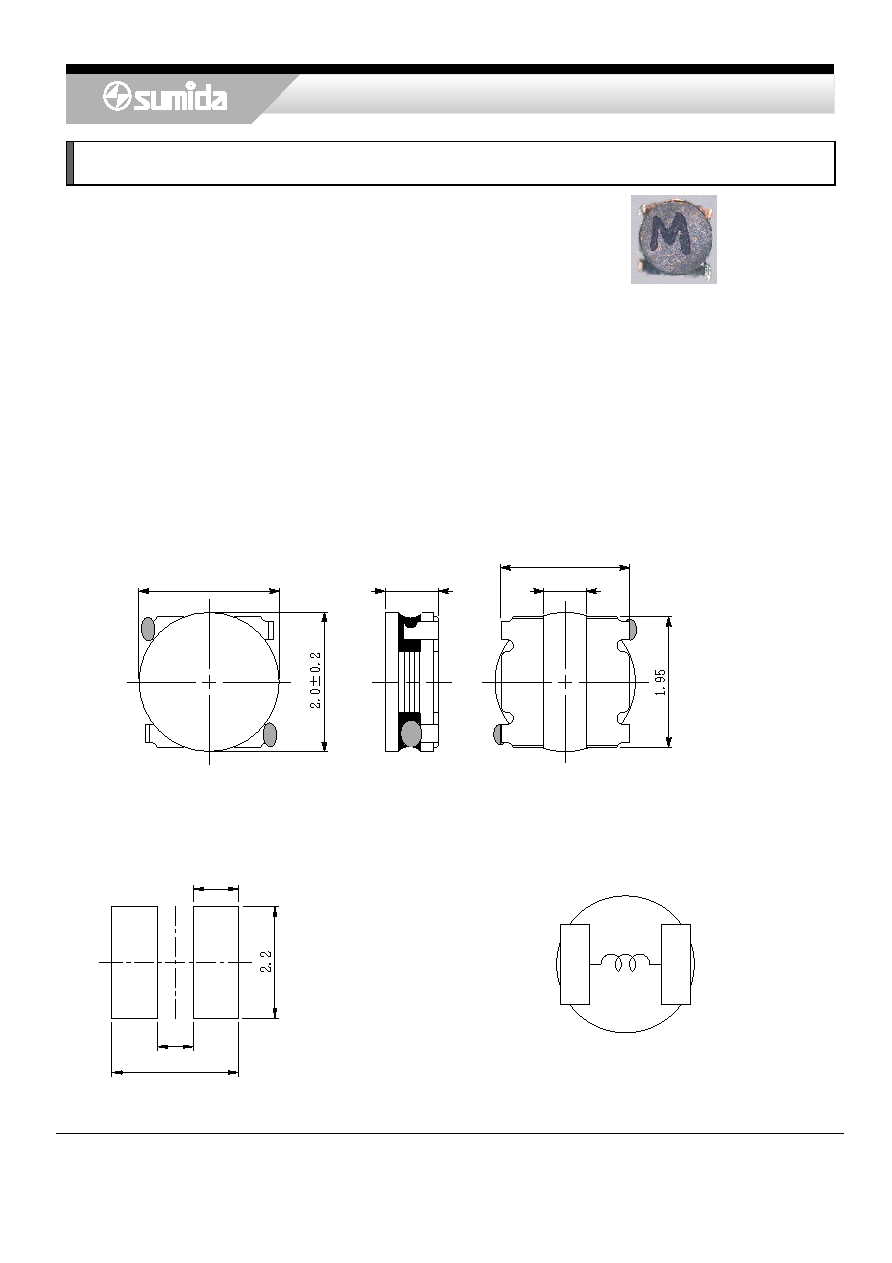

Dimensions (mm)

＊

Dimensions without tolerance are approx.

◆

Land Pattern (mm)

◆

Connection (Bottom view)

“S” is winding start.

0.71

2.49

0.89
