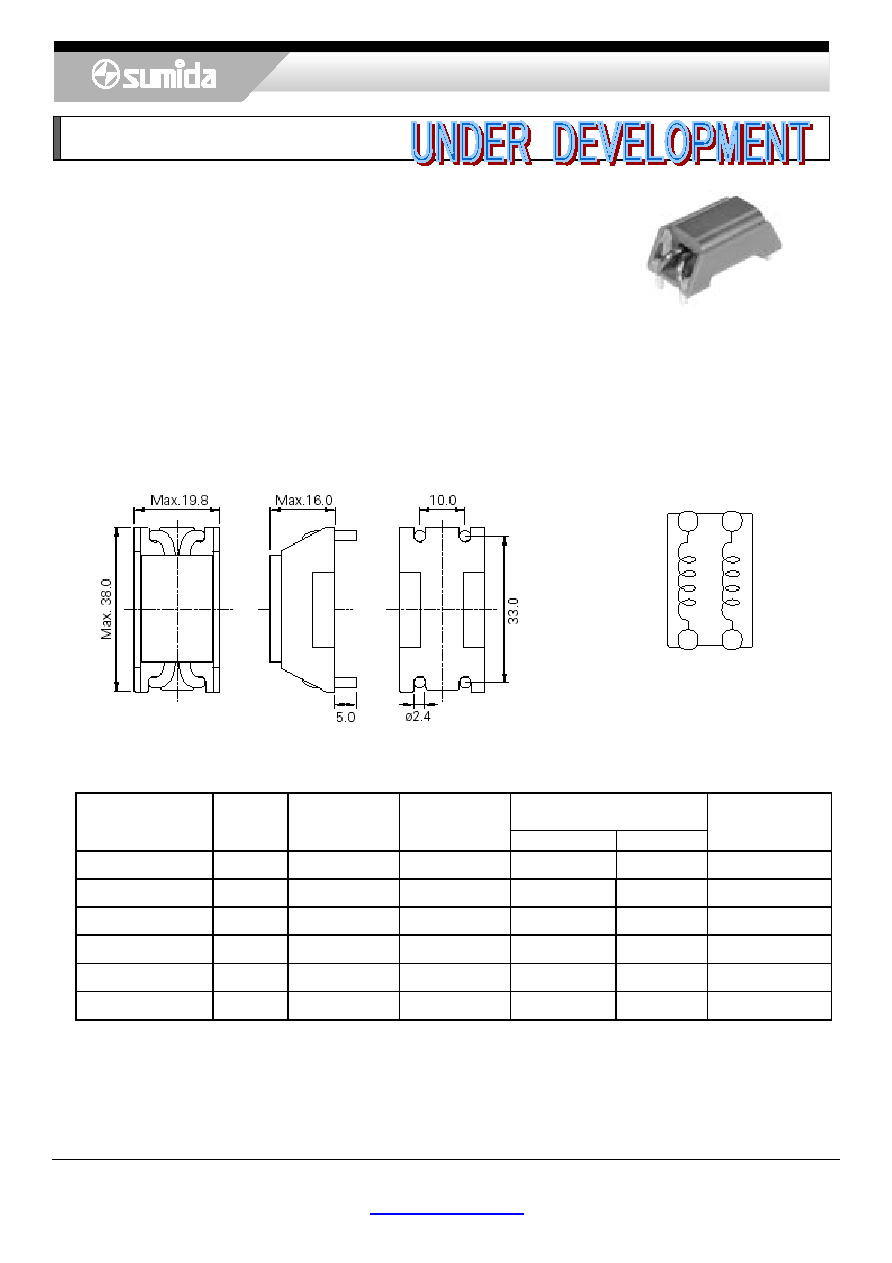

POWER INDUCTORS <Pin Type: DBM Series>

Type: DBM1915

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/1

・38.0×19.8mm Max.(L×W), 16.0mm Max. Height.

Reference temperature rise current:57.0A

・In addition to the reference versions of parameters shown here,

custom designs are available to meet your exact requirements.

◆ Feature

◆ Dimensions (mm)

◆Schematics (Bottom)

◆ Specification

Saturation Current

（A） ※1

Part Name

Stamp

Inductance

(nH)［Within］

100kHz

D.C.R.(Ω)

Max.(Typ.)

(at 20℃)

at20℃

at105℃

Temperature

Rise current

(A) ※2

DBM1915NP-R19

R19

190±10％

0.15m(0.10m)

100

100

57

DBM1915NP-R33

R33

330±10％

0.15m(0.10m)

100

100

57

DBM1915NP-R40

R40

400±10％

0.15m(0.10m)

100

100

57

DBM1915NP-R50

R50

500±10％

0.15m(0.10m)

94

88

57

DBM1915NP-R58

R58

580±15％

0.15m(0.10m)

78

73

57

DBM1915NP-R72

R72

720±15％

0.15m(0.10m)

59

57

57

※1.Saturation Current: The DC current at which the inductance decreases to 65% of it's nominal value.

※2 Temperature rise current: The DC current at which the temperature rise is △t＝40℃.(Ta＝20℃)

This datasheet is not a final issue, and maybe something will be changed before production.
