JN2AS04MK2-R datasheet(1/3 Pages) JAE

Part #	JN2AS04MK2-R

Description	Small circular connector, With construction having earth function, 4 pos., Panel mount receptacle

PDF	3 Pages

Scroll/Zoom	100%

Manufacturer	JAE [Japan Aviation Electronics Industry, Ltd.]

Direct Link	http://www.jae.com

Logo

1 / 3 page

JN2AS04MK2-R

Features

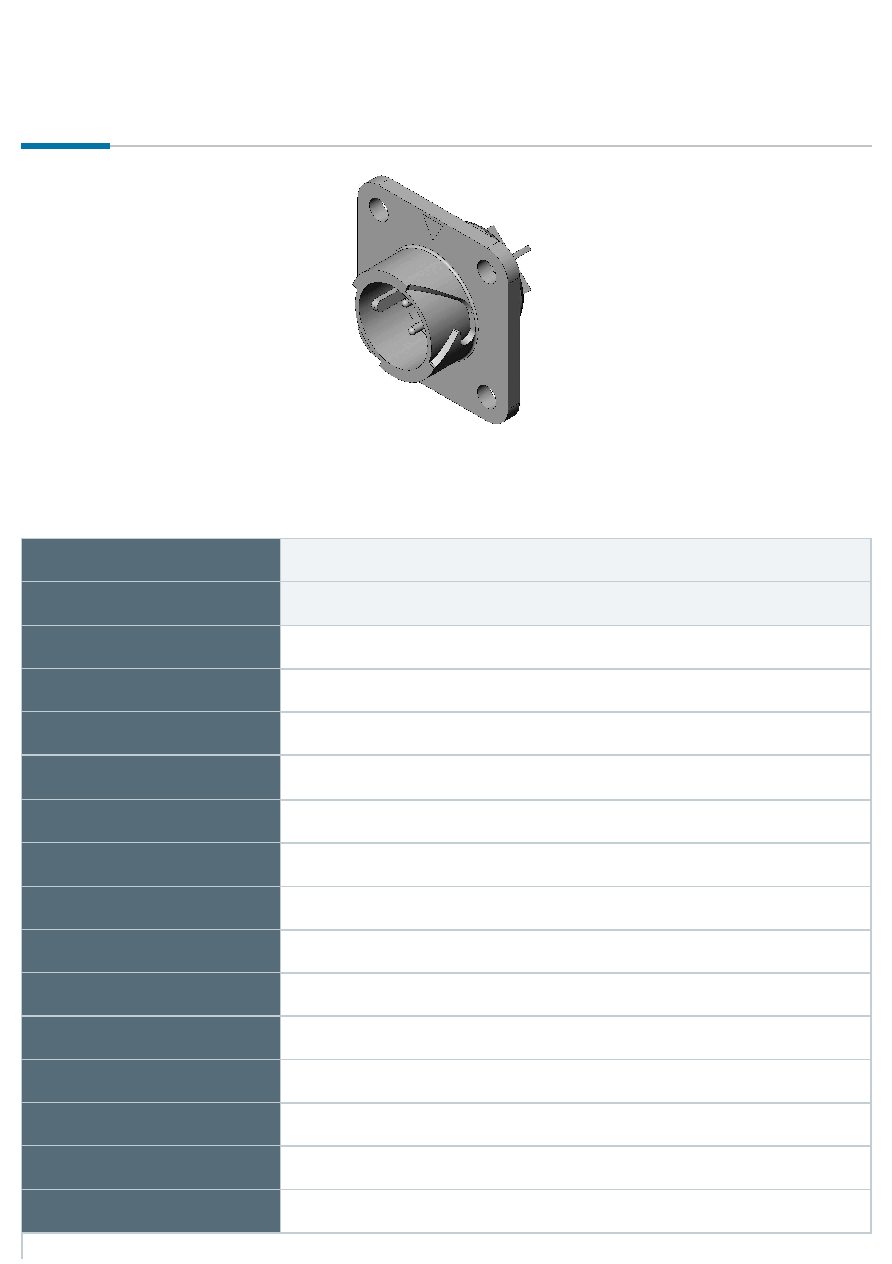

Small circular connector, With construction having earth function, 4 pos., Panel mount receptacle

Part Number

JN2AS04MK2-R

Status

Active(NRND)

Number of Positions

4 pos.

Rated Current

5A

Rated Voltage

Waterproof/ Non-waterproof

individually waterproofed

Applications

Industrial equipment interface　　

Connector Type

Panel mount receptacle

Connector Style

Contact Type

Wire Termination Method

Soldering

Applicable Wire Size (AWG)

18 max.

Coupling Style

One-touch locking

Contact Size

#20

Shell Size

S

Contact Arrangement Code

Product Details
