FC106
Revision 1.2
21/32
September 98
6.2

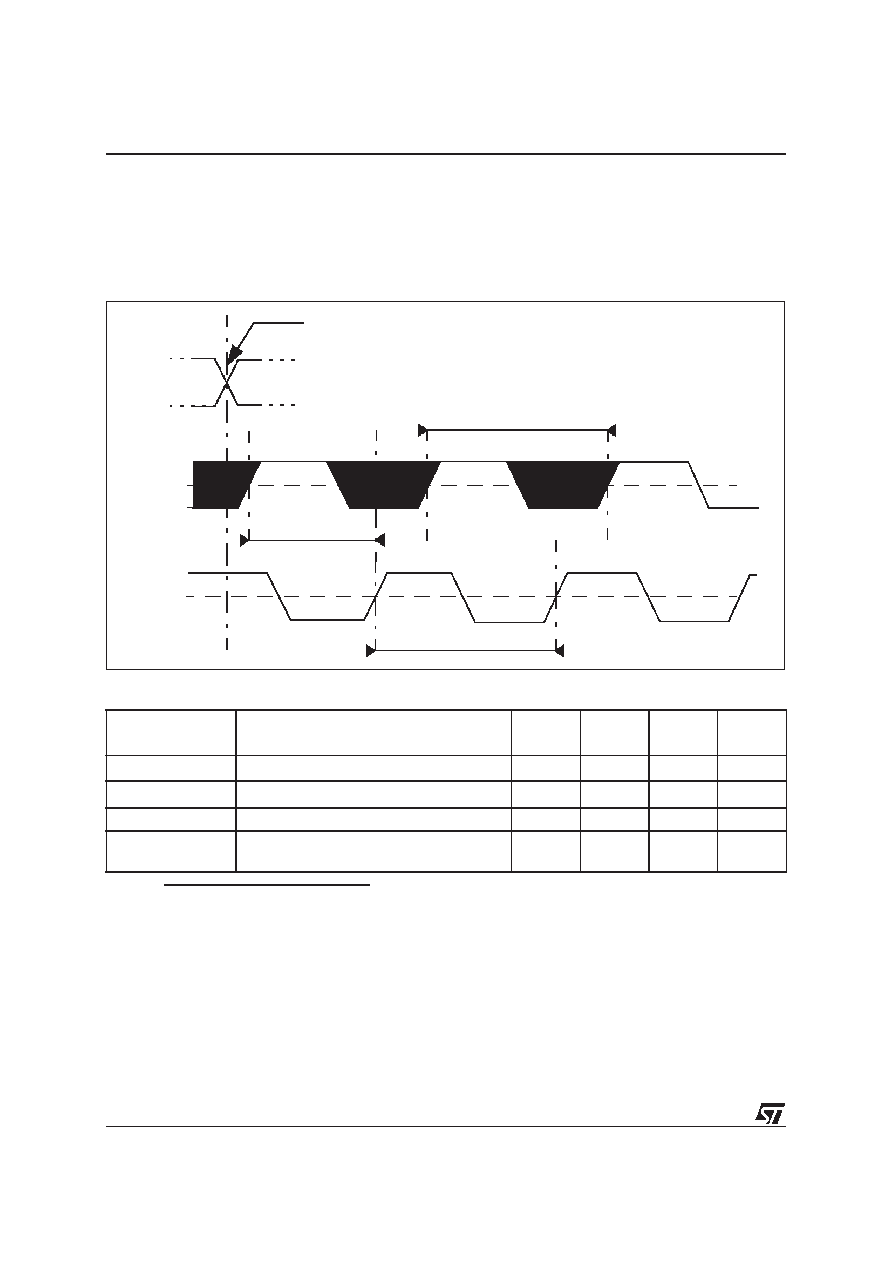

Receive interface timing
6.2.1 Receive clock timing and latency
Figure 6.2
Receive clock timing
Table 6.2
Receive clock timing characteristics
Parameter
Description
Min
Typ
Max
Units
Trbc0
RBC[0] frequency1
1.
Exact frequency of RBC(0,1) depends upon the received data frequency. During byte align-
ment, the frequency of clocks RBC[0] and RBC[1] may vary by less than 1% of the specified
typical value. The clocks are guaranteed to be glitch free.
53.125
MHz
Trbc1
RBC[1] frequency1
53.125
MHz
Trbc_skew
RBC skew
8.9
-
9.9
ns
RBC[0,1] Tr, Tf
Receive clock rise and fall time
(10pF load)
-
2.5
-
ns
RBC[1]
Trbc_skew
RBC[0]
Trbc0
1.4V
1.4V
bit 0 of serial
data
TX+
Trbc1
