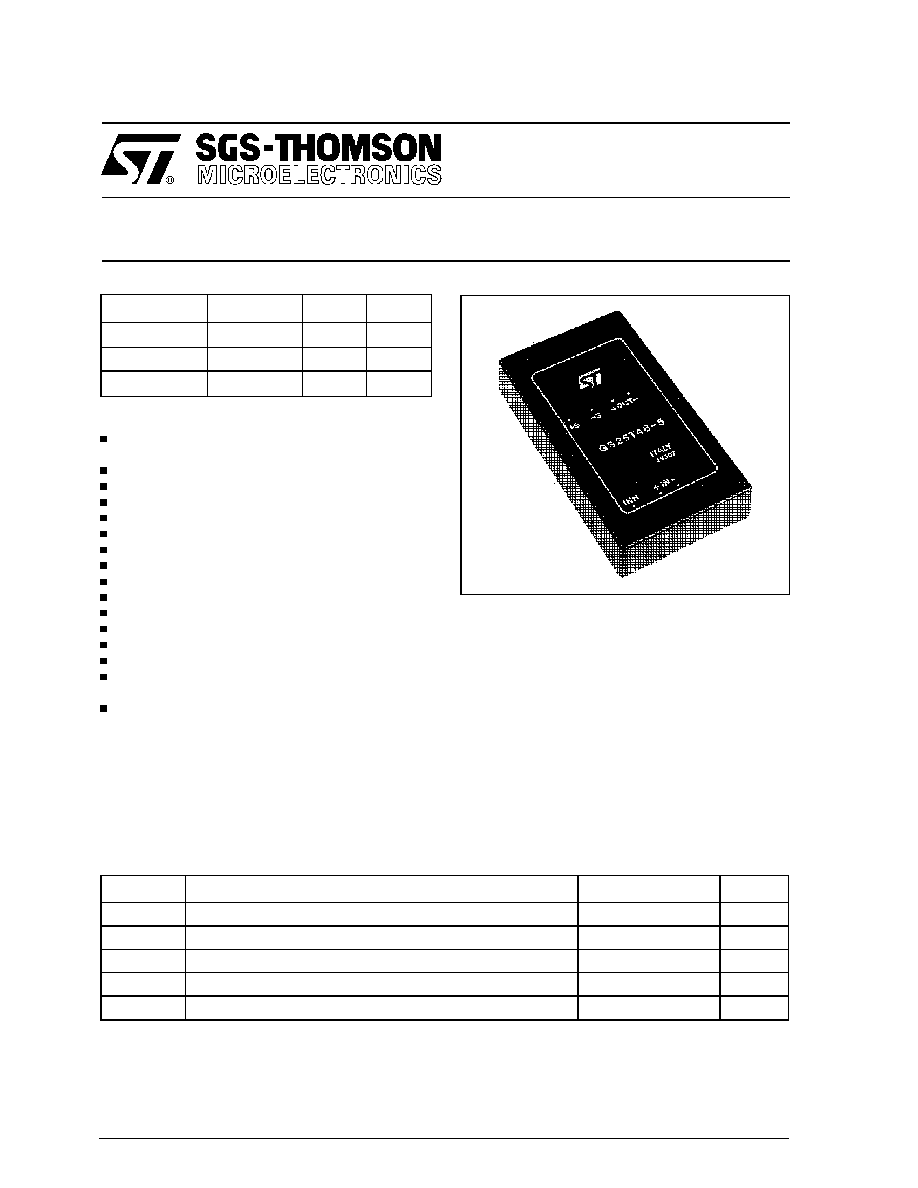

GS25/30T48 Family

25/30 W DC-DC CONVERTER FAMILY

December 1993

1/5

Type

Vin

Vout

Iout

GS25T48-5

36 to 72 V

5 V

5 A

GS25T48-12

36 to 72 V

12 V

2,5 A

GS25T48-15

36 to 72 V

15 V

2 A

FEATURES

MTBF in excess of 1M hours at +45

°C ambient

temperature

Wide input voltage range (36 to 72V)

No external component required

High efficiency (see data)

Non latching permanent short-circuit protection

Overvoltage protection

Redundant operation

Remote output voltage sense

Remote INHIBIT/ENABLE

Soft-start

Minimized reflected input current

Reverse input polarity protection

Peak input overvoltage withstand

No derating over the temperature range

500VDC minimum isolation between input and

output

PCB or chassis mountable

DESCRIPTION

The GS25T48-5, GS30T48-12 and GS30T48-15

are isolated DC-DC converters designed for gen-

eral purpose application.

The output power is in the range of 25W to 30W.

To ensure very long life, these converters do not

use electrolytic aluminum capacitors or optoelec-

tronic feedback systems.

ABSOLUTE MAXIMUM RATINGS

Symbol

Parameter

Value

Unit

Vi

DC Input Voltage

34 to 72V

V

Vipk

Input Transient Overvoltage (t

≤ 1sec.)

90

V

Vir

Input Reverse Voltage

100

V

Tstg

Storage Temperature Range

-55 to +105

°C

Top

Operating Temperature Range

-25 to +71

°C
