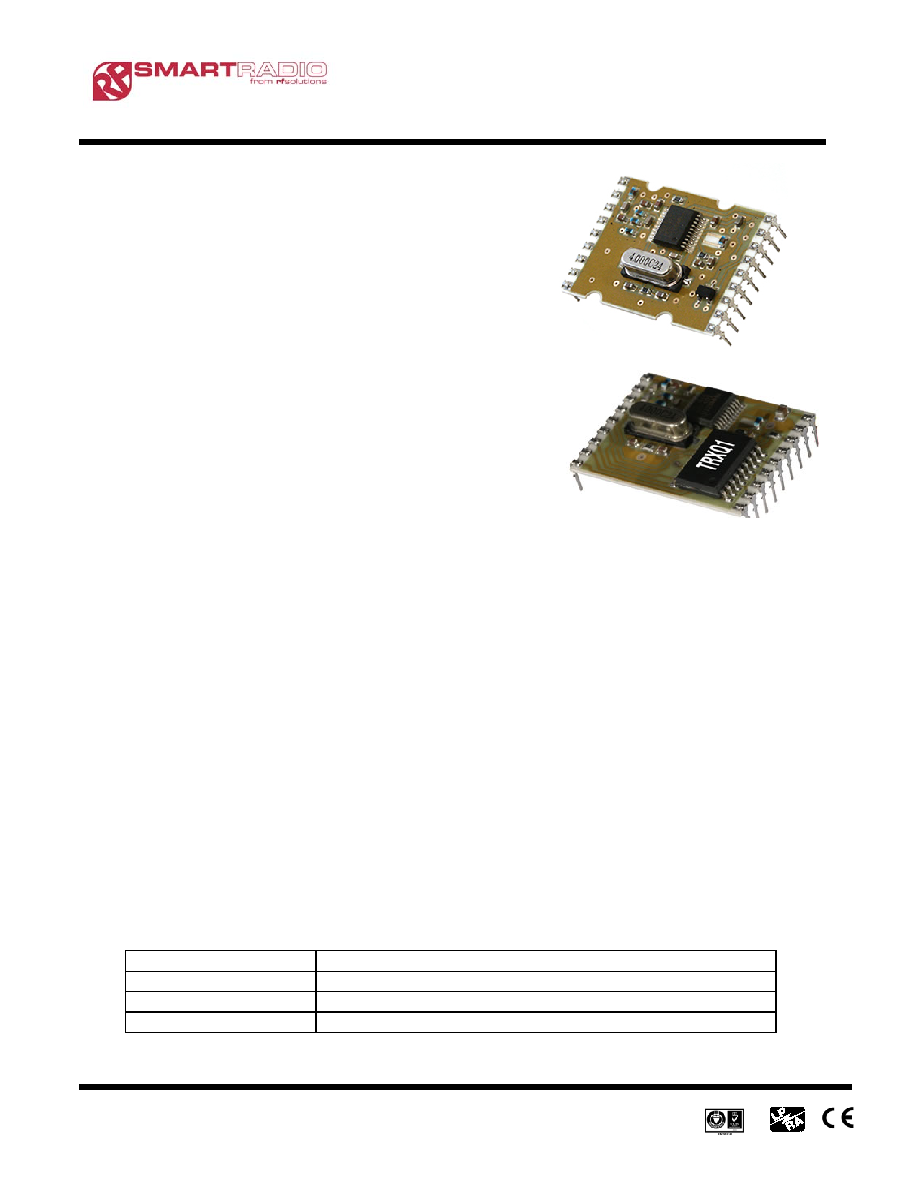

TRXQ1

RXQ1

RXQ1 Version

TRXQ1 Version

Description

The RXQ1 / TRXQ1 radio transceiver modules provide reliable wireless communications for the transfer of

data at rates of up to 20 K baud. Their unique features of narrow band operation and user channel selection

combined with excellent interference rejection make them an ideal choice for next generation applications.

Operating within the 433.92MHz band the modules can operate in two narrow band channels; 433.92 MHz

and 434.33MHz. The modules use a crystal controlled design which provides narrow band performance which

is far superior to other wideband ‘SAW’ based designs.

The TRXQ1 Smart Radio Transceiver has the functions of a complete radio modem, it simply requires

CMOS/TTL data at the transmit input and the corresponding transceiver(s) output the same data

There RXQ1 provides a basic Radio transceiver.

Possible applications include one-to-one and multi-node wireless links in applications including car and

building security, EPOS, inventory tracking, remote industrial process monitoring and computer networking.

Because of their small size and low power requirements, both modules are ideal for use in portable, battery-

powered applications such as hand-held terminals.

Part Numbering

Part Number

Description

TRXQ1-433F

Smart Transceiver Module 433MHz

FM-RXQ1-433

Transceiver Module 433MHz

RF600T-EVAL

Evaluation Kit for Smart Radio Modules

Applications

•

Wireless Security Systems

•

EPOS Terminals

•

Sensor Data logging

•

Remote Telemetry & Telecommand

•

Remote Meter Reading
