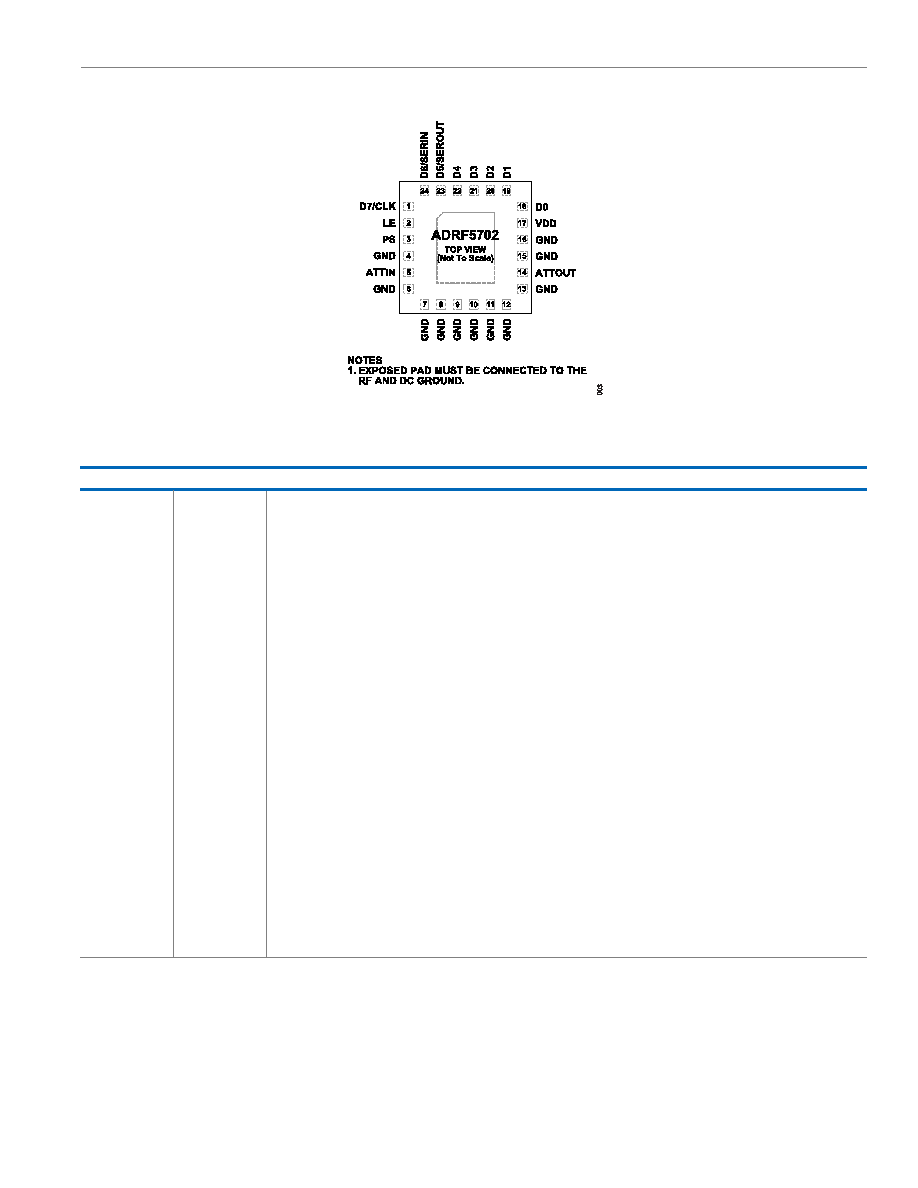

11 / 27 page ![]() Data Sheet ADRF5702 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS analog.com Rev. A | 11 of 27 Figure 3. Pin Configuration Table 7. Pin Function Descriptions Pin No. Mnemonic Description 1 D7/CLK Parallel Control Input for 16dB Attenuator Bit (D7). Serial Clock Input (CLK). See the Theory of Operation section for more information. See Figure 5 for the interface schematic. 2 LE Latch Enable Input. See the Theory of Operation section for more information. See Figure 5 for the interface schematic. 3 PS Parallel or Serial Control Interface Selection Input. See the Theory of Operation section for more information. See Figure 5 for the interface schematic. 4, 6 to 13, 15, 16 GND Ground. The GND pins must be connected to the RF and DC ground of the PCB. 5 ATTIN Attenuator Input. See Figure 4 for the interface schematic. This pin is DC coupled and matched to 50Ω. A DC blocking capacitor is necessary. 14 ATTOUT Attenuator Output. See Figure 4 for the interface schematic. This pin is DC coupled and matched to 50Ω. A DC blocking capacitor is necessary. 17 VDD Positive Supply Input. See Figure 7 for the interface schematic. 18 D0 Parallel Control Input for 0.125dB Attenuator Bit (D0). See the Theory of Operation section for more information. See Figure 5 for the interface schematic. 19 D1 Parallel Control Input for 0.25dB Attenuator Bit (D1). See the Theory of Operation section for more information. See Figure 5 for the interface schematic. 20 D2 Parallel Control Input for 0.5dB Attenuator Bit (D2). See the Theory of Operation section for more information. See Figure 5 for the interface schematic. 21 D3 Parallel Control Input for 1dB Attenuator Bit (D3). See the Theory of Operation section for more information. See Figure 5 for the interface schematic. 22 D4 Parallel Control Input for 2dB Attenuator Bit (D4). See the Theory of Operation section for more information. See Figure 5 for the interface schematic. 23 D5/SEROUT Parallel Control Input for 4dB Attenuator Bit (D5). Serial Data Output (SEROUT). See the Theory of Operation section for more information. See Figure 6 for the interface schematic. 24 D6/SERIN Parallel Control Input for 8dB Attenuator Bit (D6). Serial Data Input (SERIN). See the Theory of Operation section for more information. See Figure 5 for the interface schematic. EPAD Exposed pad must be connected to the RF and DC ground. |
|
