GROUND RETURNS FOR INPUT BIAS CURRENTS

Input bias currents are those dc currents that must flow to bias

the input transistors of an amplifier. These are usually transistor

base currents. When amplifying floating input sources such as

transformers or ac-coupled sources, there must be a direct dc

path into each input so that the bias current can flow. Figure 33

shows how a bias current path can be provided for the cases of

transformer coupling, capacitive ac-coupling and for a

thermocouple application.

In dc-coupled resistive bridge applications, providing this path

is generally not necessary as the bias current simply flows from

the bridge supply through the bridge and into the amplifier.

However, if the impedances that the two inputs see are large and

differ by a large amount (>10 kΩ), the offset current of the

input stage causes dc errors proportional with the input offset

voltage of the amplifier.

THERMOCOUPLE

+VS

REF

–VS

AD8223

CAPACITIVELY COUPLED

+VS

REF

–VS

AD8223

TRANSFORMER

+VS

REF

–VS

AD8223

INCORRECT

CAPACITIVELY COUPLED

+VS

REF

–VS

AD8223

fHIGH-PASS =

πRC

THERMOCOUPLE

+VS

REF

–VS

10M

Ω

AD8223

TRANSFORMER

+VS

REF

–VS

AD8223

CORRECT

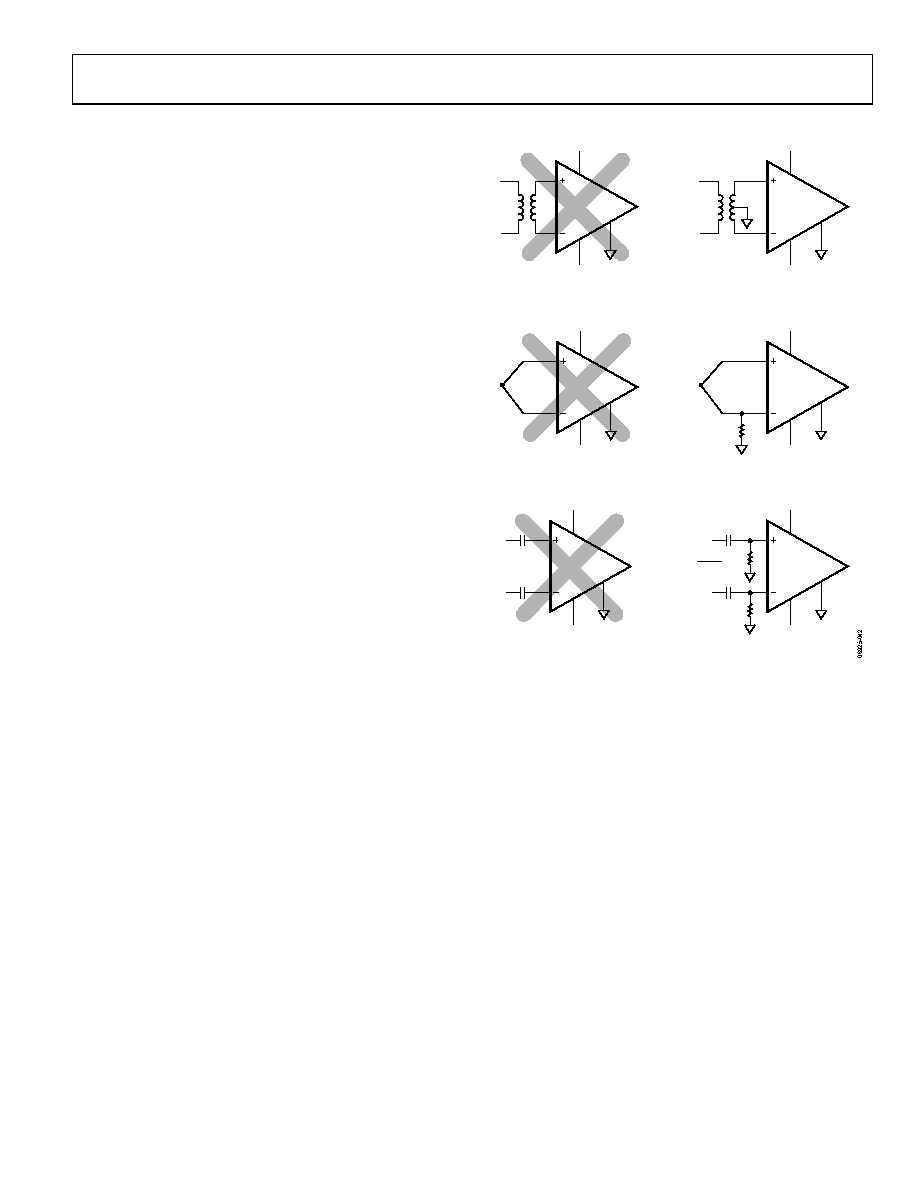

Figure 33. Creating an IBIAS Path
