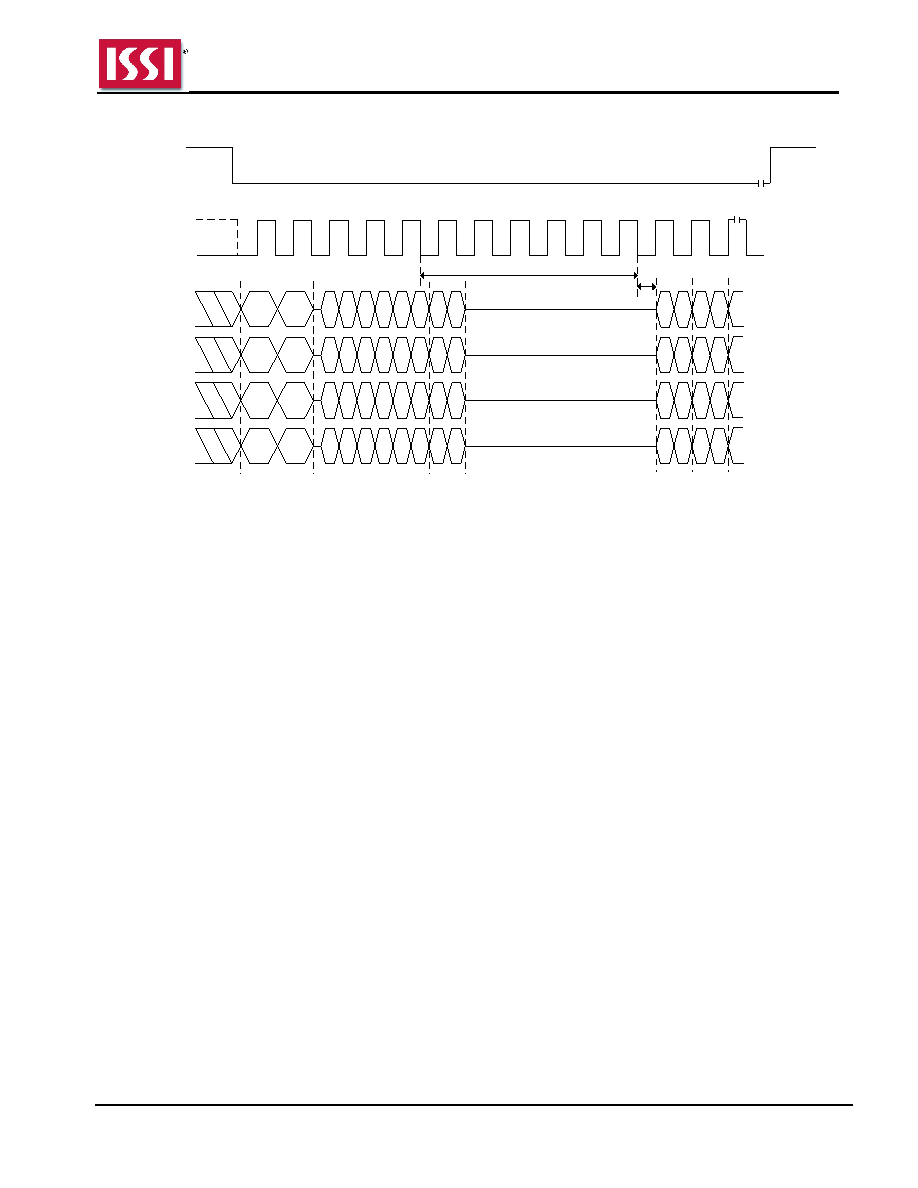

138 / 182 page  IS25LP02GJ IS25WP02GJ Integrated Silicon Solution, Inc.- www.issi.com 138 Rev.A 10/02/2025 Figure 8.95 FRQDTR Sequence In QPI Mode (EDh [EXTADD=0], 3-byte address) Instruction = EDh CE # SCK 3-byte Address 0 1 2 3 4 5 6 7 8 9 10 11 12 Mode 3 Mode 0 tV 20 16 12 5 1 21 17 13 4 0 IO0 IO1 22 18 14 23 19 15 8 4 0 9 5 1 10 6 2 11 7 3 6 Dummy Cycles IO2 IO3 6 2 7 3 5 1 4 0 6 2 7 3 Data Out Data Out 5 1 4 0 6 2 7 3 Mode Bits ... 4 0 5 1 6 2 7 3 ... ... ... ... Notes: 1. If the mode bits=AXh (where X is don’t care), it can execute the AX read mode (without command). When the mode bits are different from AXh, the device exits the AX read operation. 2. Number of dummy cycles depends on clock speed. Detailed information in Table 6.11 Read Dummy Cycles. 3. Sufficient dummy cycles are required to avoid I/O contention. If the number of dummy cycles and AX bits cycles are same, then X should be Hi-Z. |
|
