Evaluation Board

The AD8193 evaluation board illustrates one way to implement

a 2:1 HDMI link switch with an AD8193 and a CMOS switch.

The AD8193 evaluation board deviates from a typical applica-

tion in that it uses an HDMI connector for the output as well as

for the inputs. This setup makes it easy to connect equipment to

the AD8193 evaluation board with standard HDMI cables.

However, this arrangement requires crossing over the TMDS

signals on the output side (see Figure 24).

In a typical application, the output of the AD8193 is routed

directly into an HDMI receiver. Because a receiver is generally

designed to interface directly to an HDMI input connector, it is

not necessary to cross over the TMDS signals in a typical

application (see Figure 25).

CROSSOVER

REQUIRED

HDMI

CONNECTOR

1

19

19

AD8193

HDMI

CONNECTOR

1

1

19

HDMI

CONNECTOR

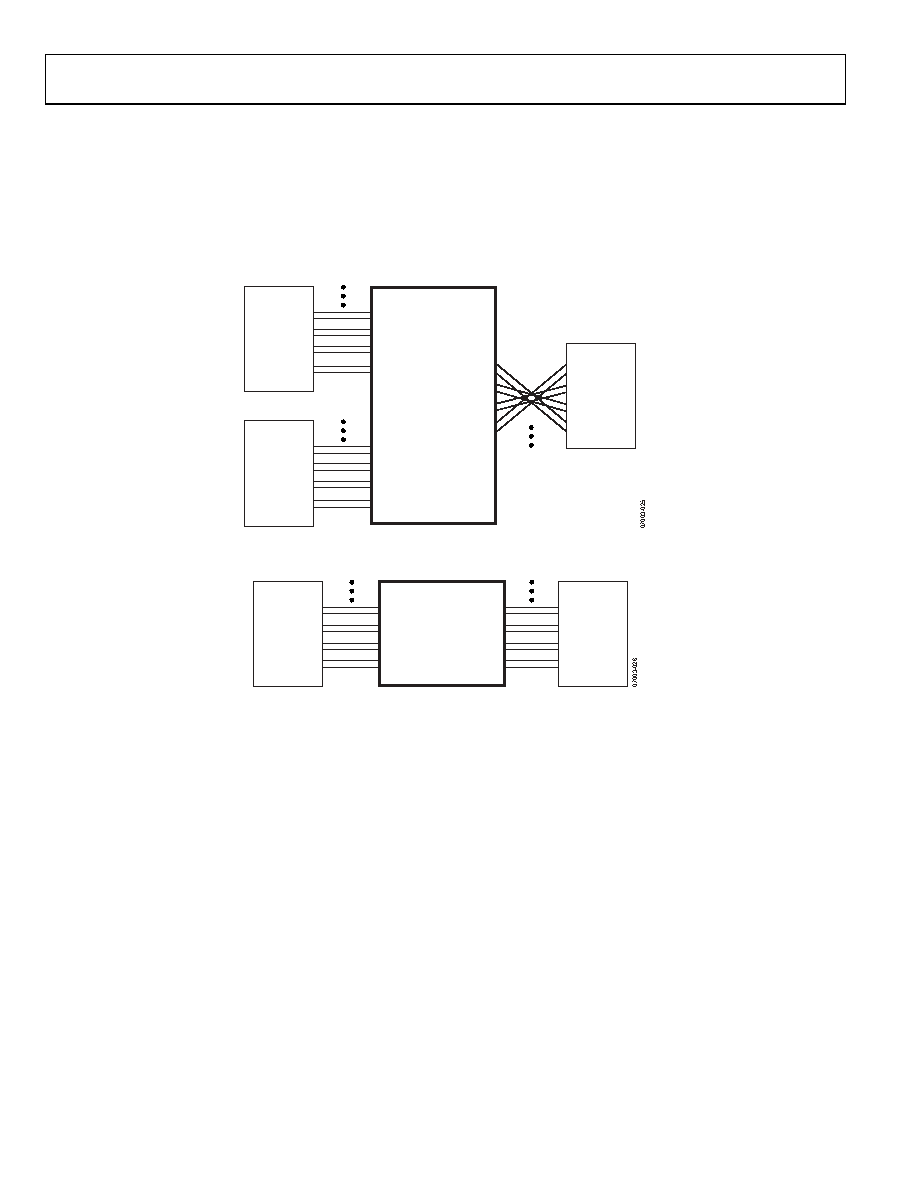

Figure 24. Block Diagram of AD8193 Evaluation Board Showing Output Crossover

HDMI

CONNECTOR

HDMI

RECEIVER

1

19

AD8193

Figure 25. HDMI Signals to HDMI Receiver, No Crossover Required
