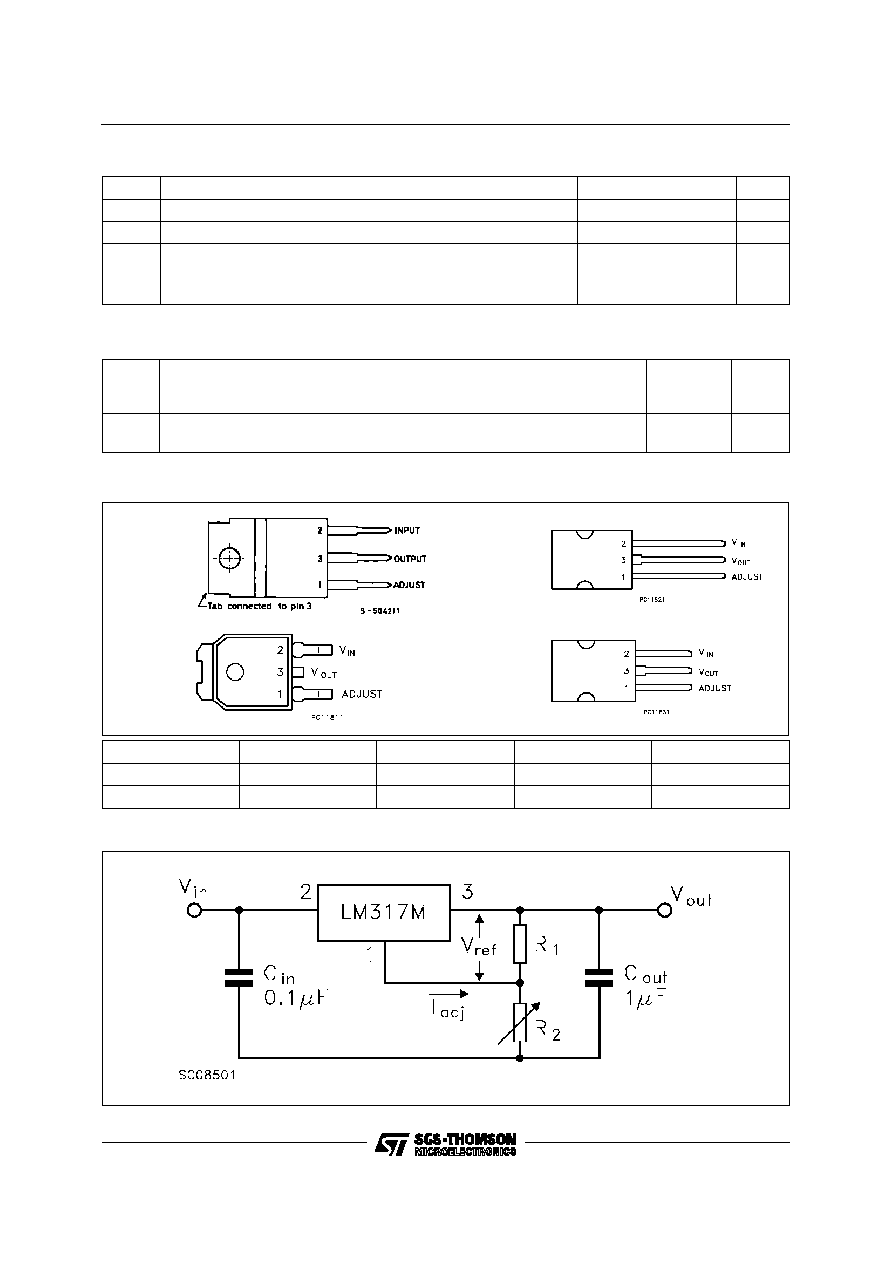

 2 / 11 page
background image
TEST CIRCUIT
ABSOLUTE MAXIMUM RATINGS
Symbol
Parameter
Value
Unit
Vi -Vo
Input-Output Differential Voltage
40
V
Pd
Power Dissipation
I nternally Limited
Topr
Operating Junction Temperature Range (*)
for LM217M
for LM317M
-40 to 125
0to 125
oC
oC
Tstg
Storage Temperature Range
-55 to 150
oC
(*) Re-Boot is not guaranteed for Tj
≥ 85 oC
PIN CONNECTION AND ORDERING NUMBERS
TO-220
SOT-82
Type
TO-220
DPAK
SOT-82
SOT-194
LM217M
LM217MT
LM217MDT
LM217MX
LM217MS
LM317M
LM317MT
LM317MDT
LM317MX
LM317MS
DPAK
SOT-194
THERMAL DATA
Symbol
Parameter
SOT-82
SOT-194
DPAK
TO-220
Unit
Rthj-ca se
Rthj-a mb
Thermal Resistance Junction-case
Max
Thermal Resistance Junction-ambient
Max
8
100
3
50
o C/W
o C/W
LM217M/LM317M
