HG908PCL-RSP Datasheet(PDF) 1 Page - Infinite Electronics International, Inc.

Part # HG908PCL-RSP
Description  900MHz 8dBi LH CIR. POLARIZED FLAT PANEL ANTENNA W/4 FOOT PIGTAIL AND RP-SMA PLUG CONNECTOR
PDF  1 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  L-COM [Infinite Electronics International, Inc.]
Direct Link  https://www.l-com.com/
Logo L-COM - Infinite Electronics International, Inc.

HG908PCL-RSP Datasheet(HTML) 1 Page - Infinite Electronics International, Inc.

  HG908PCL-RSP Datasheet HTML 1Page - Infinite Electronics International, Inc.
Zoom Inzoom in Zoom Outzoom out
 1 / 1 page
background image

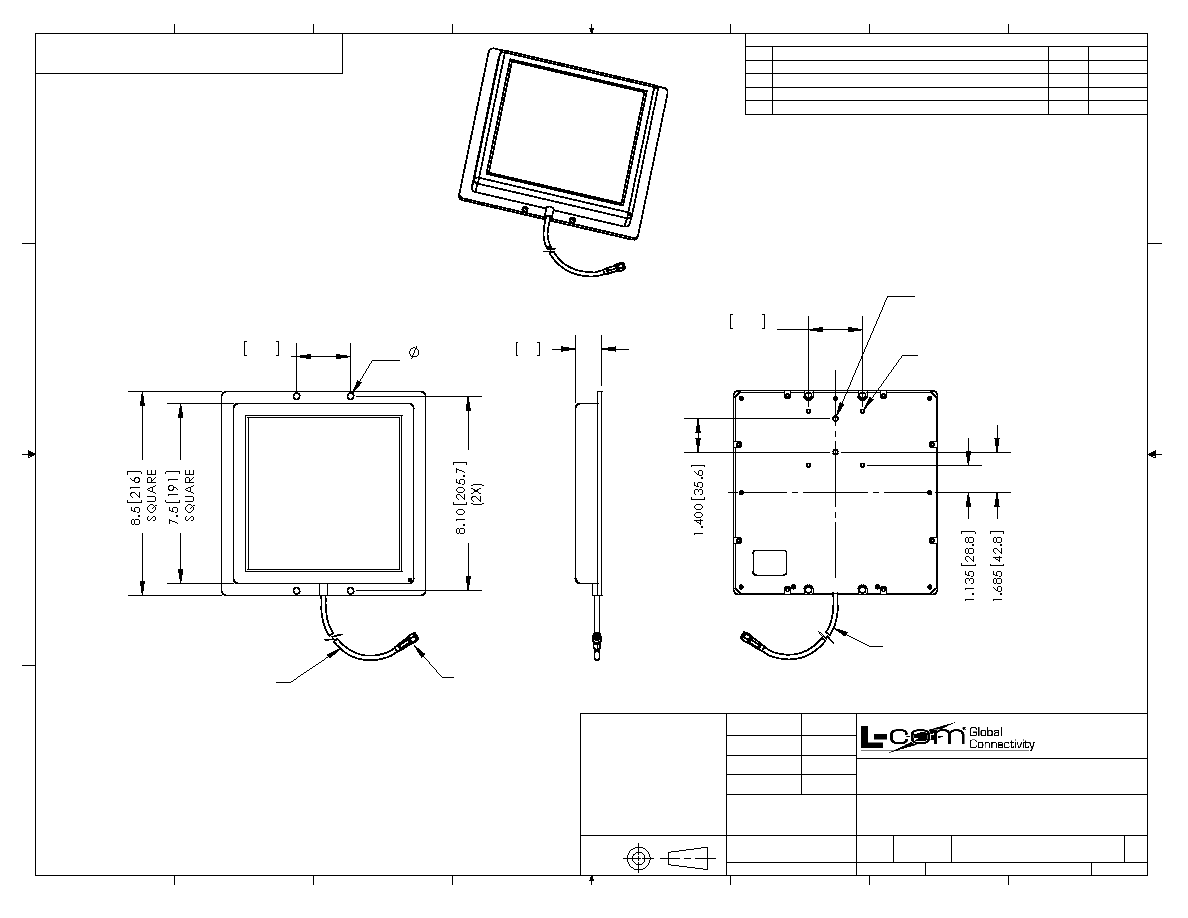

2.25 57.2
(2X)
.260
(4X)
4 FOOT
CONNECTOR
PIGTAIL
RP-SMA PLUG
CONNECTOR
1.1 28
RoHS Compliant 
2.25 57.2
SQUARE
(4X)
10-24 THREAD
.50 DEEP
.50 DEEP (2X)
1/4-20 THREAD
4 FOOT
CONNECTOR
PIGTAIL
CL
CL
NOTES:
PACKAGING:
COMPONENT SHALL BE PACKAGED IN ACCORDANCE
WITH L-COM SPEC PKG-00012
- ALL DIMENSIONS FOR REFERENCE ONLY -
A
B
C
D
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
SCALE:
SIZE
CAD FILE:
DWG. NO.
A
SHEET
OF
REV.
DATE
APPROVALS
DRAWN BY
CHECKED BY
APPROVED BY
1
2
3
4
5
6
7
8
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
A
B
C
D
1
2
3
4
5
6
7
8
HG908PCL-RSP
A
HG908PCL-RSP.SLDDRW
1
1
P.PESA
08/15/12
REVISIONS
DESCRIPTION
APPROVED
REV
DATE
P.PESA
08/15/12
08/15/12
A
-
INITIAL RELEASE
-
-
D.GRIFFIN
-
CATEGORY
PRODUCT DESCRIPTION
DIMENSIONS ARE IN INCHES [mm]
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
NONE
FSCM NO.
43321
900MHz 8dBi LH CIR. POLARIZED FLAT PANEL ANTENNA
W/4 FOOT PIGTAIL AND RP-SMA PLUG CONNECTOR
ANTENNA
PROJECTION
UNLESS OTHERWISE SPECIFIED,
B.PUCHASKI
COLOR VARIATIONS
MAY OCCUR
08/15/12
DIMENSIONAL TOLERANCES:
.X = ±.1
.XX = ±.01
.XXX = ±.005
ANGULAR TOLERANCES:
ALL = ± 1°


Similar Part No. - HG908PCL-RSP
