LR4-E-R Datasheet(PDF) 2 Page - PATLITE CORPORATION.

Part # LR4-E-R
Description  LED Unit
PDF  5 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  PATLITE [PATLITE CORPORATION.]
Direct Link  https://www.patlite.com/
Logo PATLITE - PATLITE CORPORATION.

LR4-E-R Datasheet(HTML) 2 Page - PATLITE CORPORATION.

  LR4-E-R Datasheet HTML 1Page - PATLITE CORPORATION. LR4-E-R Datasheet HTML 2Page - PATLITE CORPORATION. LR4-E-R Datasheet HTML 3Page - PATLITE CORPORATION. LR4-E-R Datasheet HTML 4Page - PATLITE CORPORATION. LR4-E-R Datasheet HTML 5Page - PATLITE CORPORATION.
Zoom Inzoom in Zoom Outzoom out
 2 / 5 page
background image

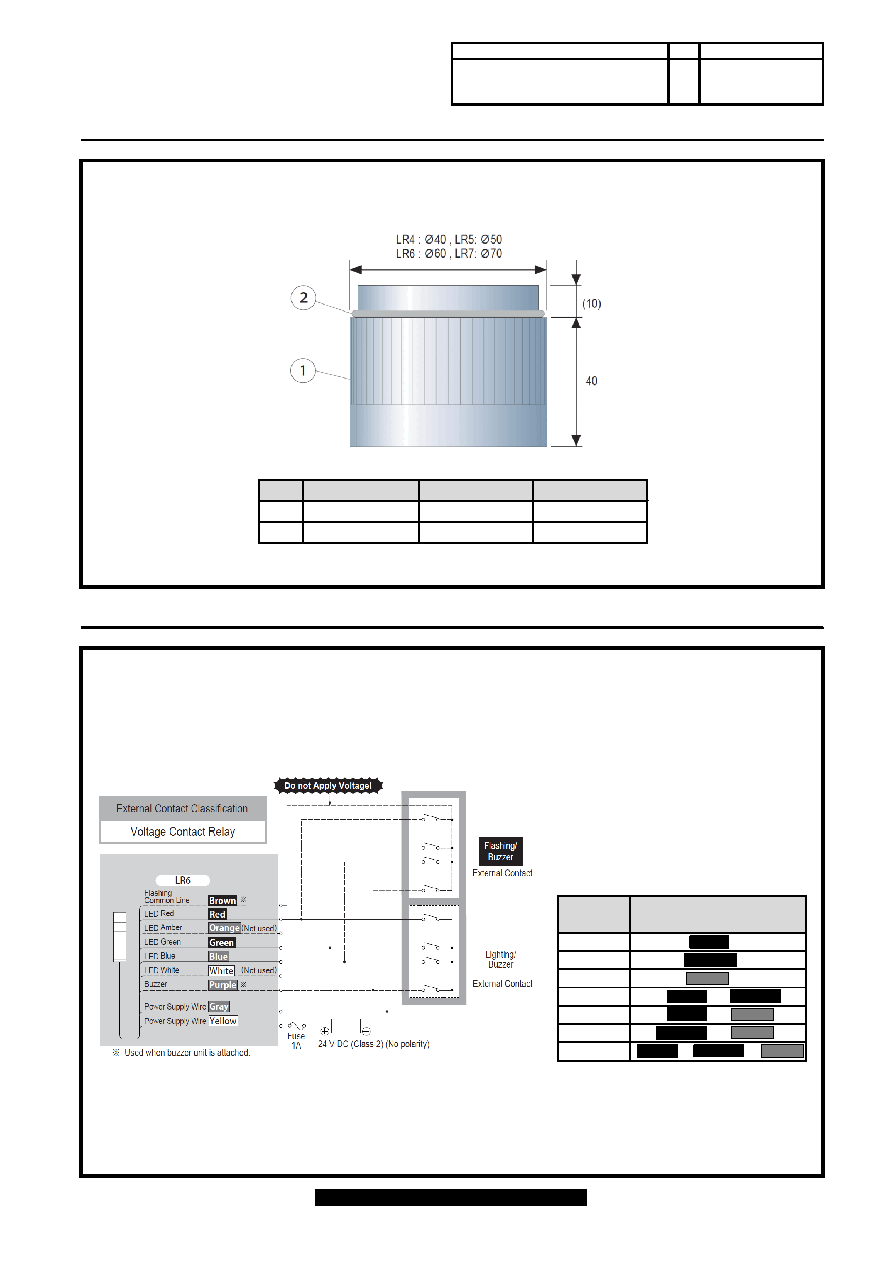

4.Multi Color LED Unit (LR6-E-MZ) Wiring Diagram
3.Outer Dimensions
Page
Drawing No.
Rev.
E
（
Unit:mm）
LR□-E-□□
Material
PC
Silicone Rubber
Name
UL Flammability
1
Globe
2
O-ring
V-2
-
No.
4.1.1 【LR6-02】Voltage Contact Relay Wiring Example
+
　
+
+
+
+
Cyan
White
Red
Green
Blue
Amber
Purple
Luminous
Color
Wiring Color
Red
Green
Blue
Red
Green
Red
Blue
Green
Blue
Green
Blue
Red
2 / 5
