GRL1A-E-R THRU GRL1M-E-R

SURFACE MOUNT FAST

SWITCHING RECTIFIER

VOLTAGE: 50 to 1000V

CURRENT: 1.0A

FEATURE

SMF

Ideal for surface mount pick and place applications

Low profile package

Built-in strain relief

High surge capability

High temperature soldering guaranteed

260℃/10sec/at terminals

Glass passivated chip

Fast recovery time for high efficiency

Halogen Free

MECHANICAL DATA

Terminal：Plated leads solderable per J-STD-002

Case：Molded with UL-94 class V-0 recognized Halogen Free

Epoxy

Polarity：color band denotes cathode

Marking：R1A～R1M

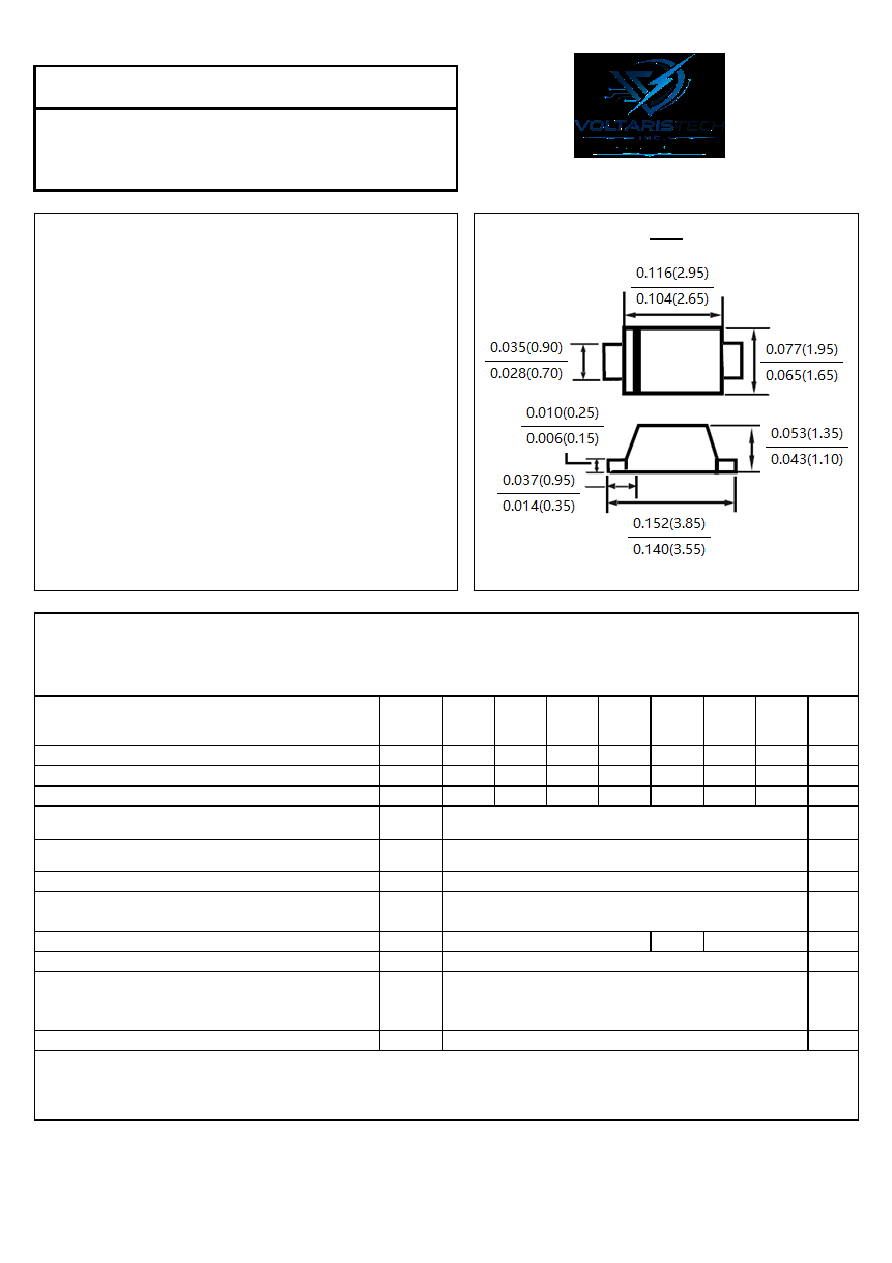

Dimensions in inches and (millimeters)

MAXIMUMRATINGSANDELECTRICALCHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25℃, unless otherwise stated)

Symbol

GRL1

A-E-

R

GRL1

B-E-

R

GRL1

D-E-

R

GRL1

G-E-

R

GRL1

J-E-

R

GRL1

K-E-

R

GRL1

M-E-

R

units

Maximum Recurrent Peak Reverse Voltage

Vrrm

50

100

200

400

600

800

1000

V

Maximum RMS Voltage

Vrms

35

70

140

280

420

560

700

V

Maximum DC blocking Voltage

Vdc

50

100

200

400

600

800

1000

V

Maximum

Average

Forward

Rectified

Current

3/8″lead length at TL=110℃

If(av)

1.0

A

Peak Forward Surge Current 8.3ms single half

sine-wave superimposed on rated load

Ifsm

30

A

Maximum Forward Voltage at rated forward current

Vf

1.3

V

Maximum DC Reverse Current

Ta =25℃

at rated DC blocking voltage Ta =125℃

Ir

5.0

300

μA

Maximum Reverse Recovery Time

(Note1 )

Trr

150

250

500

nS

Typical Junction Capacitance

(Note 2)

Cj

9.0

pF

Typical Thermal Resistance

(Note 3)

Rth(jl)

Rth(ja)

Rth(jc)

21

62

22

℃/W

Storage and Operating Junction Temperature

Tstg, Tj

-50 to +150

℃

Note：

1. Reverse Recovery Condition If =0.5A, Ir =1.0A, Irr =0.25A

2. Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

3. Thermal Resistance from Junction to terminal mounted on 3×3mm copper pad area

Rev.A2, 3-Aug-18

www.gulfsemi.com
