Product Specification

2R-5 series

GAS DISCHARGE TUBS

Circuit Protection

www.yageo.com

Mar. 16, 2021 V.1

Gas Discharge Tube (GDT) Data Sheet

Features

■ Provide ultra-fast response to surge voltage from slow-rising

surge of 100V/s to rapid-rising surge of 1KV/

μs

■ Stable breakdown voltage

■ High insulation resistance

■ Low capacitance (

≤1.5pF)

■ High holdover voltage

■ Large absorbing transient current capability

■ Micro-Gap Design

■ Size: 5.5mm*6.0mm

■ Storage and operating temperature: -40

℃ ~ +85℃

■ Meets MSL level 1, per J-STD-020

■ Safety certification: UL

Applications

■ Repeaters, Modems

■ Telephone Interface, Line cards

■ Data communication equipment

■ Line test equipment

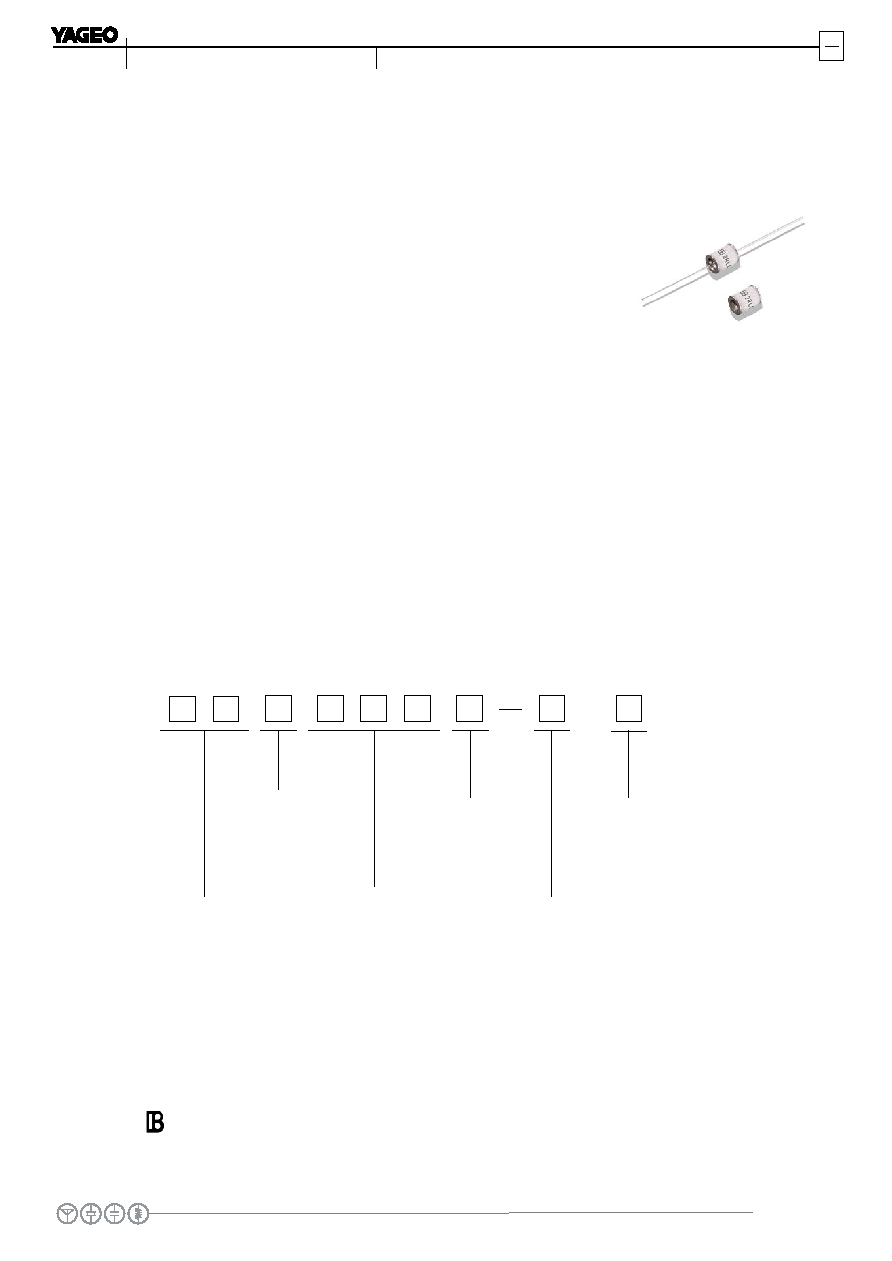

Part Number Code

2

R

Electrical

Characteristics

L: 5KA

M: 10KA

DC

Spark-over

Voltage

Lead Type

L: Lead

M: SMD

Dimensions

5: 5.5mm×6.0mm

Electrode Numbers

2R: 2 Electrodes

5

Packing Code

B : Box package

TR: Tape & Reel package

Ordering Code for different package in 2RLxxxxL-5, 2RMxxxxL-5 series

Box package: Add suffix“/B”at the end of the part number, such as 2RL070L-5/B, 2RM070L-5/B

Tape & Reel package: Add suffix“/TR”at the end of the part number, such as 2RL070L-5/TR,

2RM070L-5/TR

Marking

: BrightKing Logo

2RL090-5 : Device Marking Code

XXXX

: Internal Control Code

/
