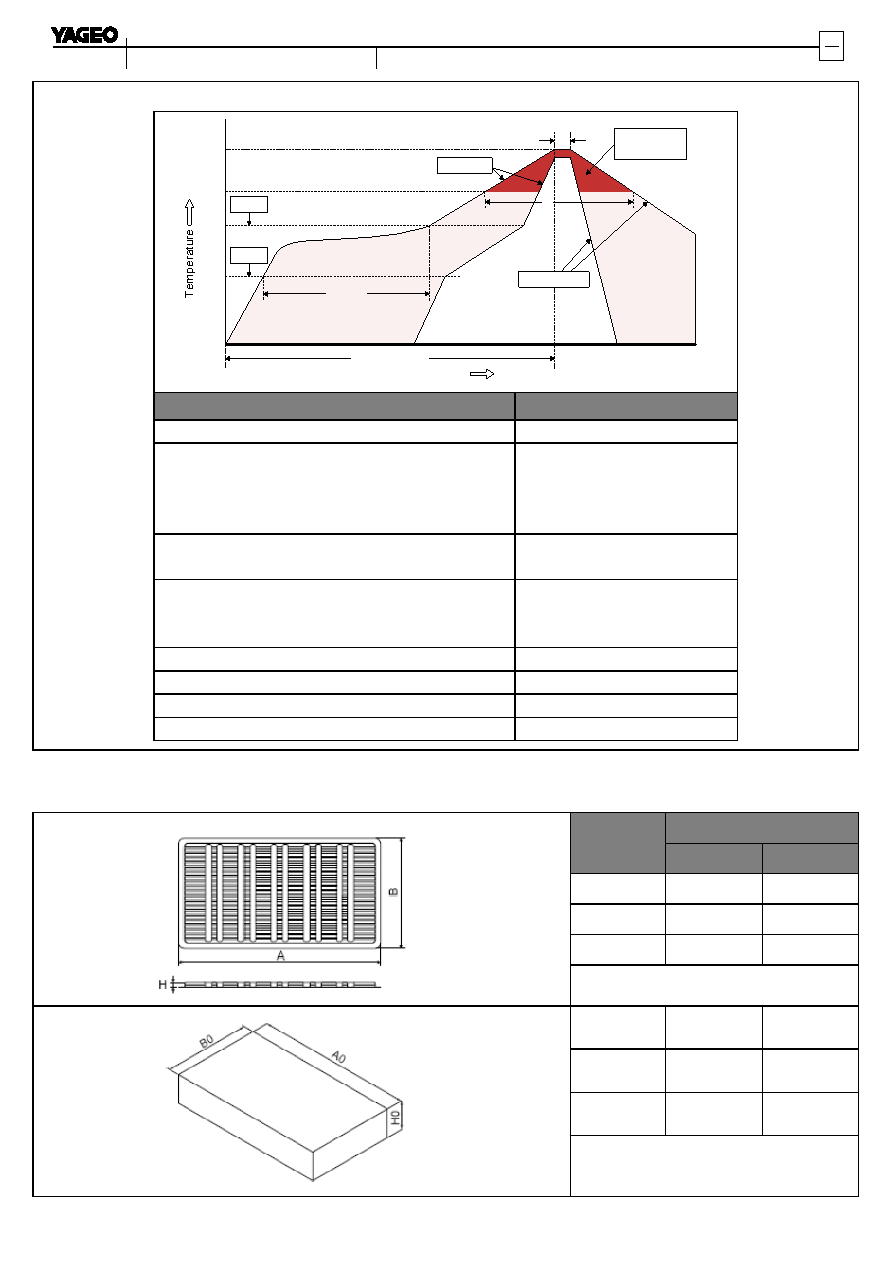

5 / 6 page  5 6 Product Specification 2R-8x6(T6) series GAS DISCHARGE TUBS Circuit Protection Reflow Soldering TP TL tS Preheat 25 TS max TS min Ramp-up Ramp-down Critical Zone TL to TP tP tL t 25℃ to Peak Time Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) 20-40 seconds Ramp-down Rate 6℃/second max. Time 25℃ to Peak Temperature 8 minutes max. Packaging Axial Packing (Box) Skin packing Symbol Dimension (mm) Spec. Tolerance A 267.0 ±2.0 B 146.0 ±2.0 H 8.5 ±1.0 Quantity: 100pcs Inner box A0 270.0 ±2.0 B0 150.0 ±2.0 H0 50.0 ±2.0 Quantity: 500pcs |
|
|
