ST3237E
8/15

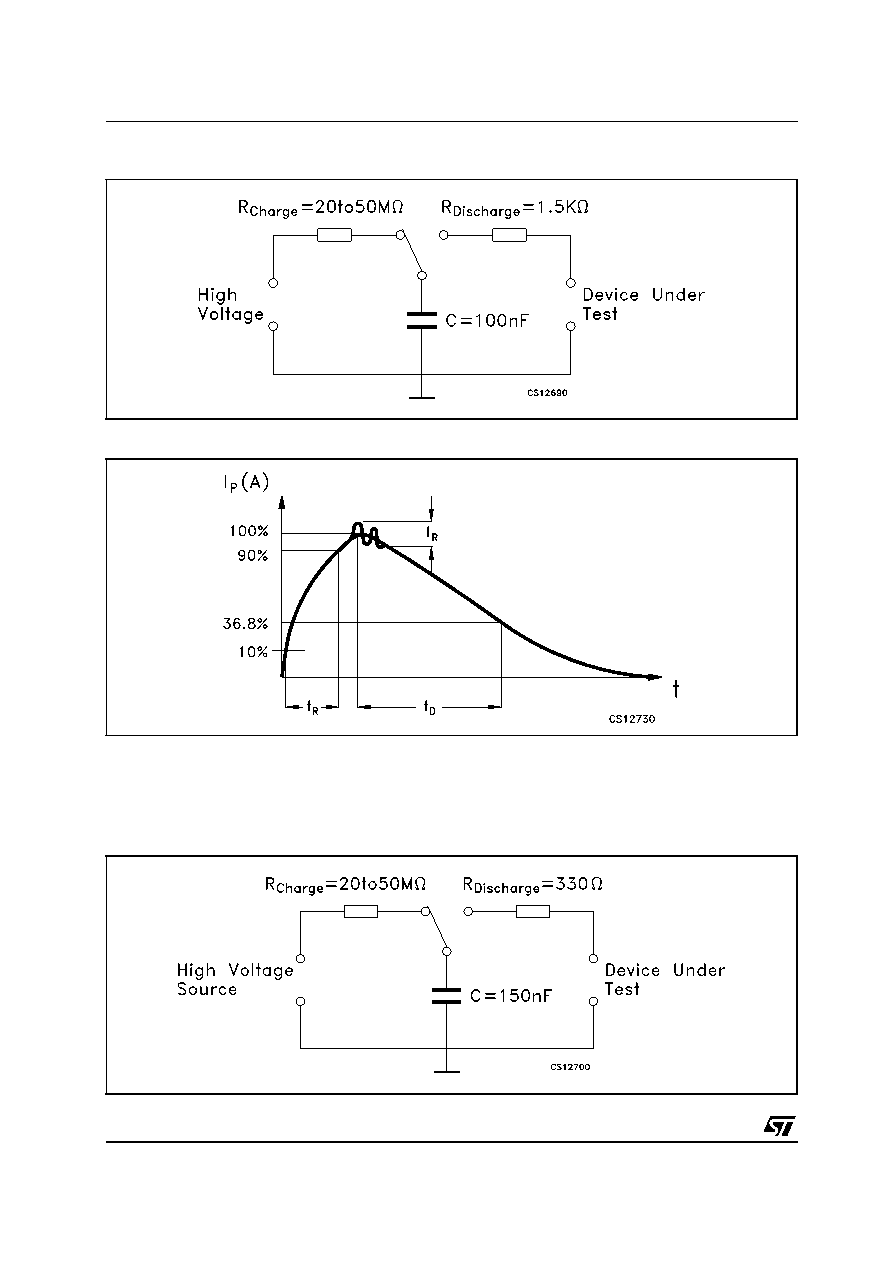

Figure 6: Human Body Model Circuit
Figure 7: Human Body Model Current Waveform
The second model is IEC 1000-4-2 and is used to
simulate the reaction of the device on equipment
when subjected to electrostatic discharges, which
may occur from personnel to objects near vital
instrumentation. Direct (Contact) and indirect (Air
Gap) applications of discharges to the equipment
under test (EUT) are possible. Test characteristics
are shown in circuit, waveform and table below.
Figure 8: IEC 1000-4-2 Circuit
