Part #	AXLGS635F

Description	Langasite (LGS) SMD Crystal Resonator Unit

PDF	2 Pages

Scroll/Zoom	100%

Manufacturer	AXTAL [Advanced XTAL Products]

Direct Link	http://www.axtal.com/index-engl.html

Logo

2 / 2 page

AXLGS635F

www.axtal.com

Wasemweg 5

page

2(2)

fon: +49 (6261) 9398-34

D-74821 Mosbach

fax: +49 (6261) 9398-36

Germany

E-mail: info@axtal.com

GmbH & Co. KG

Test

IEC 60068

Part ...

IEC 60122-1

clause ...

Test conditions

Visual inspection,

dimensions

4.5

4.6

Enclosure styles as in IEC

60122-3, if applicable

Sealing tests

2-17

4.8.2

Gross leak: Test Qc,

Fine leak: Test Qk

Solderability

Resistance to

soldering heat

2-20

4.8.3

Test Ta (235

± 5)°C Method 1

Test Tb Method 1A, 5s

Shock

2-27

4.8.8

Test Ea, 3 x per 2 axes

5000g, 0.3 ms half-sine

Free fall

2-32

4.8.9

Test Ed procedure 1,

2 drops from 1m height

Vibration,

sinusoidal

2-6

4.8.7

Test Fc, 1 octave per min.

1 hour per axes

10 Hz ~ 2000 Hz, 20g.

Endurance tests

- ageing

- extended aging

4.9.1

4.9.2

30 days @ 85°C

1000h, 2000h, 8000h @85°C

Enclosure drawing

Environmental conditions

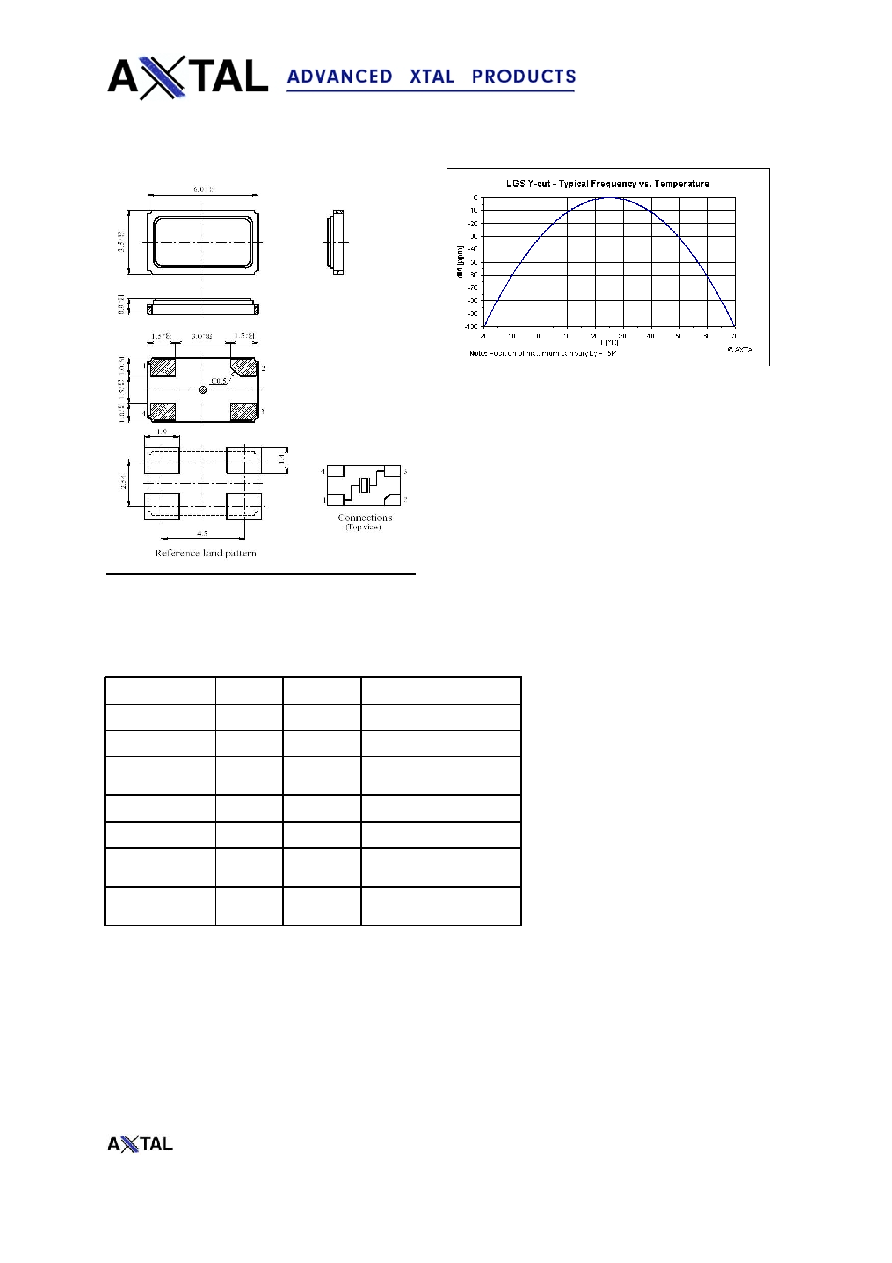

AXLGS635F Datasheet(PDF) 2 Page - Advanced XTAL Products
