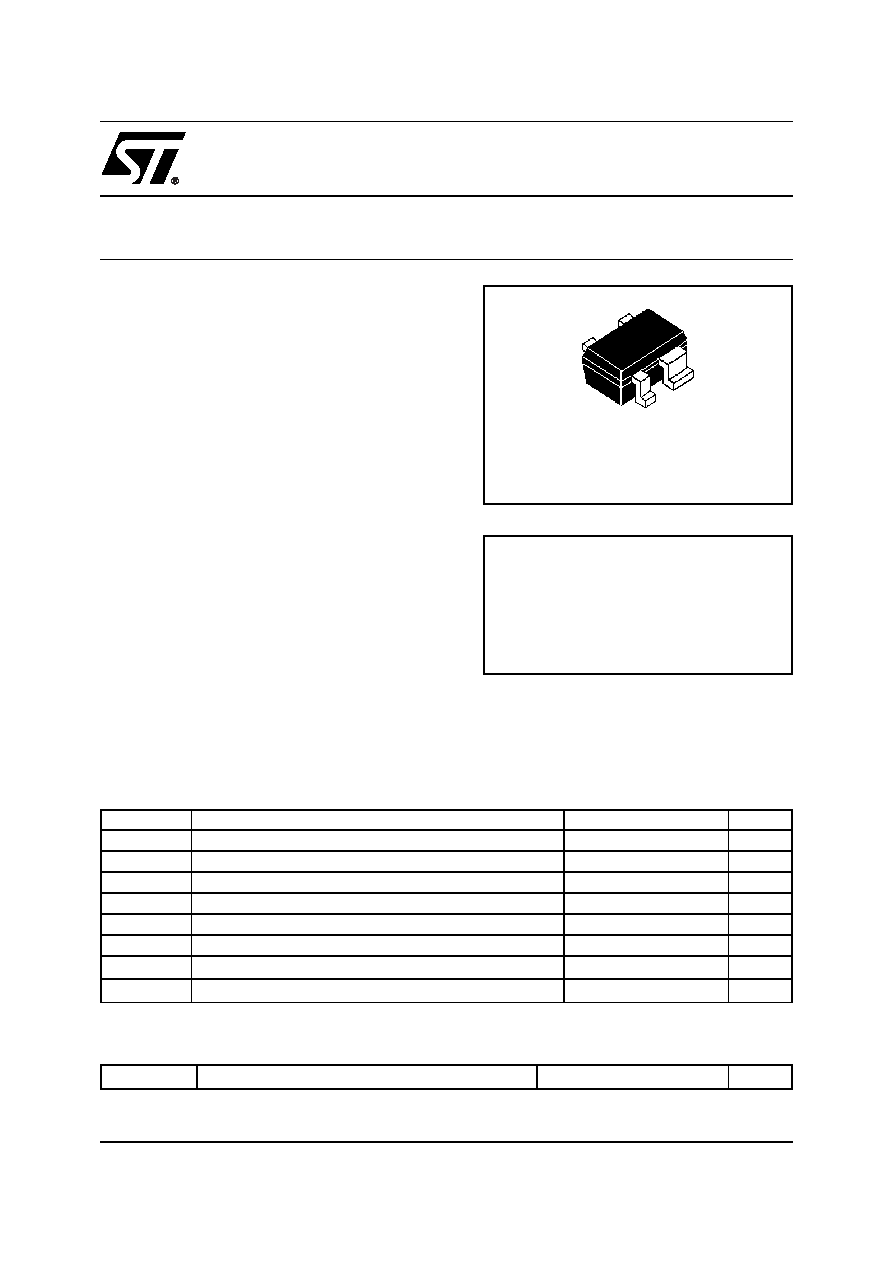

 1 / 7 page
background image
1/7
July, 3 2002
START420
NPN Silicon RF Transistor
SOT343 (SC70)
ORDER CODE
START420TR
BRANDING
420
APPLICATIONS
• LNA FOR GSM/DCS, DECT, PDC, PCS,
PCN
• PREDRIVER FOR DECT
• GENERAL PURPOSE 500MHz-5GHz
• LOW NOISE FIGURE: NFmin = 1.05dB
@ 1.8GHz, 5mA, 2V
• COMPRESSION P1dB = 12.5dBm
@ 1.8GHz, 20mA, 2V
• ULTRA MINIATURE SOT343 PACKAGE
DESCRIPTION
The START420 is a member of the START family
that provide market with the state of the art of RF
silicon
process. Manufacturated
in
the
third
generation of ST proprietary bipolar process, it
offers the best mix of gain and NF for given
breakdown voltage(BVceo).
It reaches performance level only achieved with
GaAs products before.
ABSOLUTE MAXIMUM RATINGS
Symbol
Parameter
Value
Unit
Vceo
Collector emitter voltage
4.5
V
Vcbo
Collector base voltage
15
V
Vebo
Emitter base voltage
1.5
V
Ic
Collector current
40
mA
Ib
Base current
4
mA
Ptot
Total dissipation, Ts = 101
180
mW
Tstg
Storage temperature
-65 to 150
oC
Tj
Max. operating junction temperature
150
oC
Rthjs
Thermal Resistance Junction soldering point
270
oC/W
ABSOLUTE MAXIMUM RATINGS
