STP24DP05
Typical characteristics
21/26
9
Typical characteristics

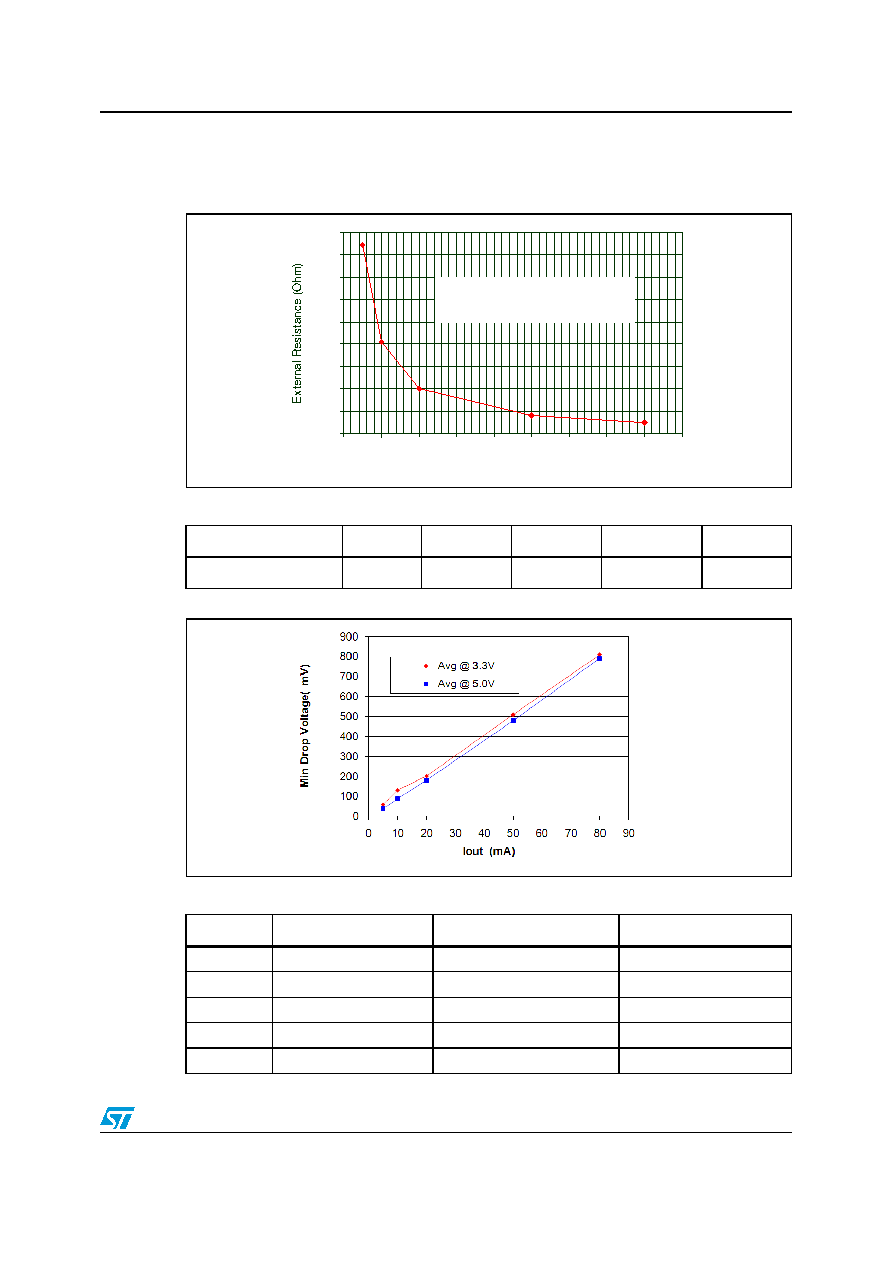

Figure 18. Typical external resistor values vs output current capabilities
Figure 19. Typical dropout voltage vs output current
Table 15.
Typical external resistor values vs output current capabilities
Iset
5 mA
10 mA
20 mA
50 mA
80 mA
Rext (
Ω)
4210
2050
1000
400
249
Table 16.
Typical dropout voltage vs output current
Iset
Rext (
Ω)
Avg (mV) @ 3.3 V
Avg (mV) @ 5.0 V
5
4210
59
41
10
2050
130
90
20
1000
201
180
50
400
500
480
80
249
810
790
0
500
1000
1500
2000
2500
3000
3500
4000
4500
0
10203040
506070
80
90
Output Current (mA)
Temp. = 25°C
Vdd = 5.0V
Iset = 5mA; 10mA; 20mA; 50mA; 80mA
