 2 / 6 page

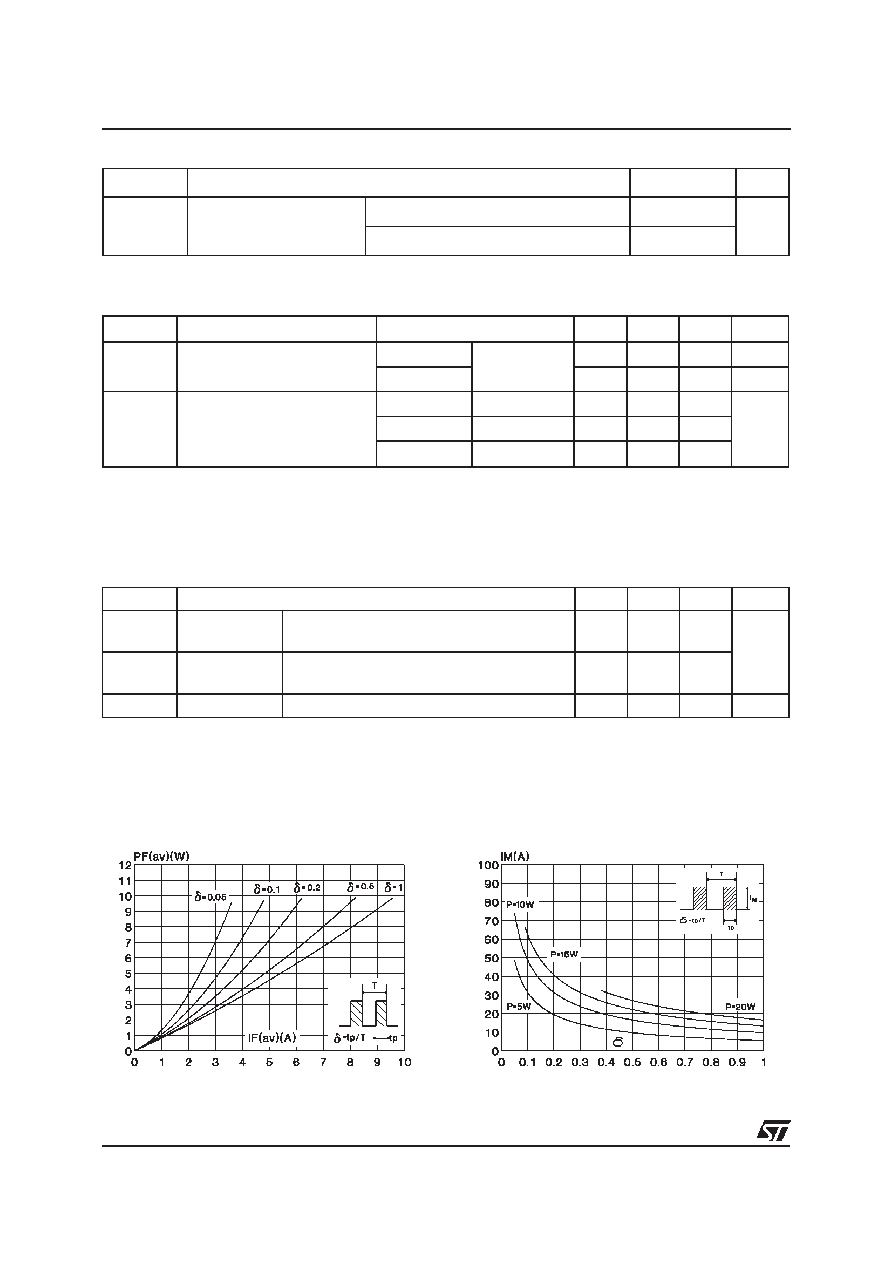

background image
Symbol
Parameters
Test conditions
Min.
Typ.
Max.
Unit
IR *
Reverse leakage current
Tj = 25
°CVR =VRRM
50
µA
Tj = 100
°C
0.6
mA
VF **
Forward voltage drop
Tj = 125
°CIF =8 A
0.99
V
Tj = 125
°CIF =16 A
1.20
Tj = 25
°CIF =16 A
1.25
Pulse test : * tp = 5 ms,
δ <2 %
** tp = 380
µs, δ <2 %
STATIC ELECTRICAL CHARACTERISTICS
Symbol
Test conditions
Min.
Typ.
Max.
Unit
trr
Tj =25
°CIF = 0.5A
IR =1A
Irr = 0.25A
30
ns
tfr
Tj =25
°CIF =1A
VFR = 1.1 x VF max
tr = 10 ns
20
VFP
Tj =25
°CIF = 1A
tr = 10 ns
3V
RECOVERY CHARACTERISTICS
Symbol
Parameter
Value
Unit
Rth(j-c)
Junction to case
TO-220AC
3.0
°C/W
ISOWATT220AC
5.5
THERMAL RESISTANCES
Fig. 2: Peak current versus form factor.
Fig. 1: Average forward power dissipation versus
average forward current.
STPR820D/F
2/6
