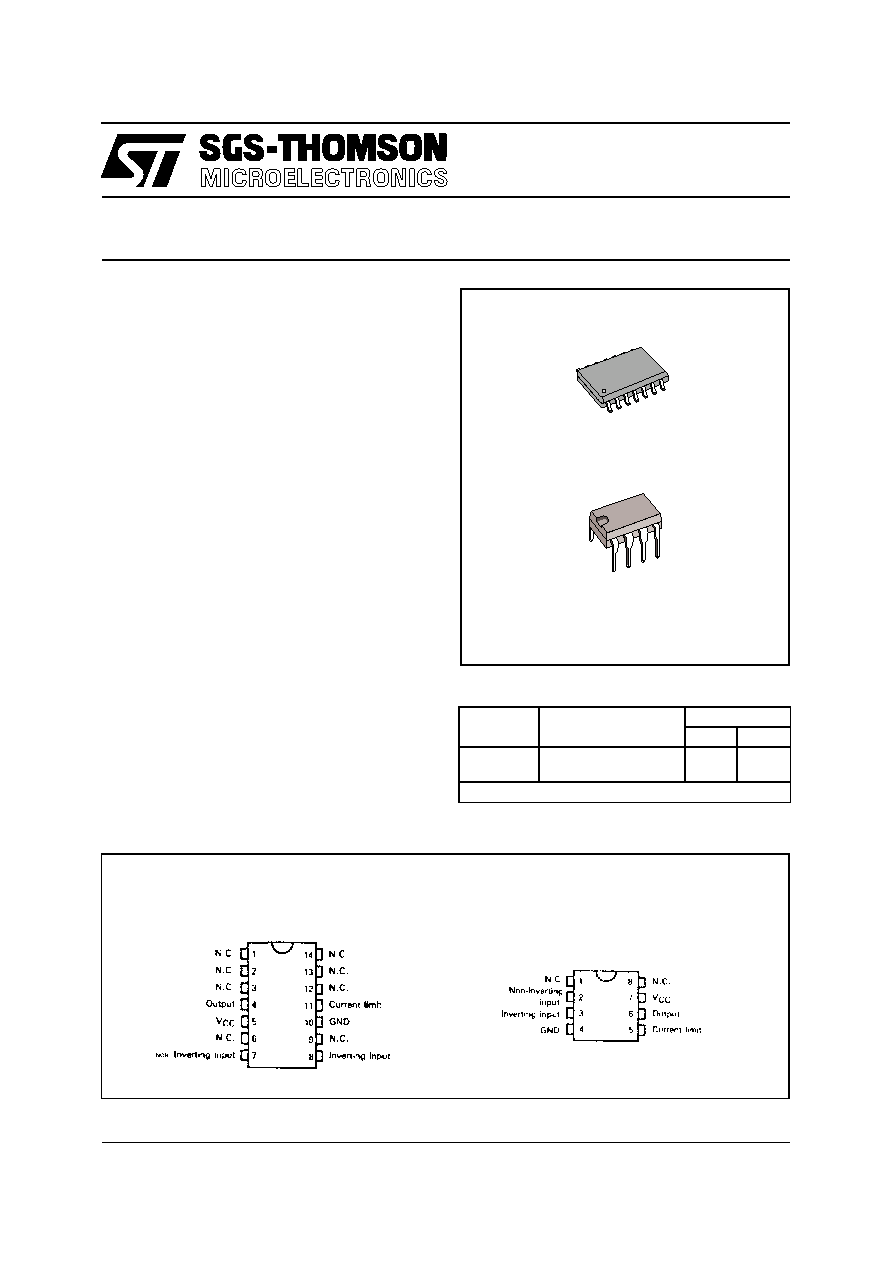

TDE1737

TDF1737

October 1991

INTERFACE CIRCUIT - RELAY AND LAMP-DRIVER

.

HIGH OUTPUT CURRENT

.

ADJUSTABLE

SHORT-CIRCUIT

PROTEC-

TION

.

THERMAL PROTECTION WITH HYSTERESIS

TO AVOID THE INTERMEDIATE OUTPUT LEV-

ELS

.

LARGE SUPPLY VOLTAGE RANGE : + 8 V to

+ 45 V

DESCRIPTION

The TDE1737-TDF1737 is a monolithic amplifier

designed for high current and high voltage applica-

tions, specifically to drive lamps, relays and control

of stepper motors.

This device is essentially blow-out proof. Current

limiting is available to limit the peak output current

to a safe value, the adjustment only requires one ex-

ternal resistor. In addition, thermal shut down is pro-

vided to keep the I.C. from overheating. If internal

dissipation becomes too great, the driver will shut

down to prevent excessive heating.

The output is also protected against short-circuits

with the positive power supply.

The device operates over a wide range of supply

voltages from standard

± 15 V operational amplifier

supplies down to the single + 12 V or + 24 used for

industrial electronic systems.

MINIDIP

DP SUFFIX

SO14

FP SUFFIX

ORDER CODES

Part

Number

Temperature

Range

Package

DP

FP

TDE1737

TDF1737

– 25

°C to + 85 °C

– 40

°C to + 85 °C

•

•

•

•

Example : TDE1737DP

PIN CONNECTIONS (top views)

SO-14

MINIDIP

1/7
