ABSOLUTE MAXIMUM RATINGS

Symbol

Parameter

Value

Unit

Supply Voltage

50 *

V

Differantial Input Voltage

50

V

Input Voltage

50

V

Output Current

1

A

°C)

Internally Limited

W

Storage Temperature Range

– 65 to + 150

°C

Operating Ambient Temperature Range

TDE1747

TDF1747

–25 to + 85

–40 to + 85

°C

°C

(*) 60V, t â 10ms

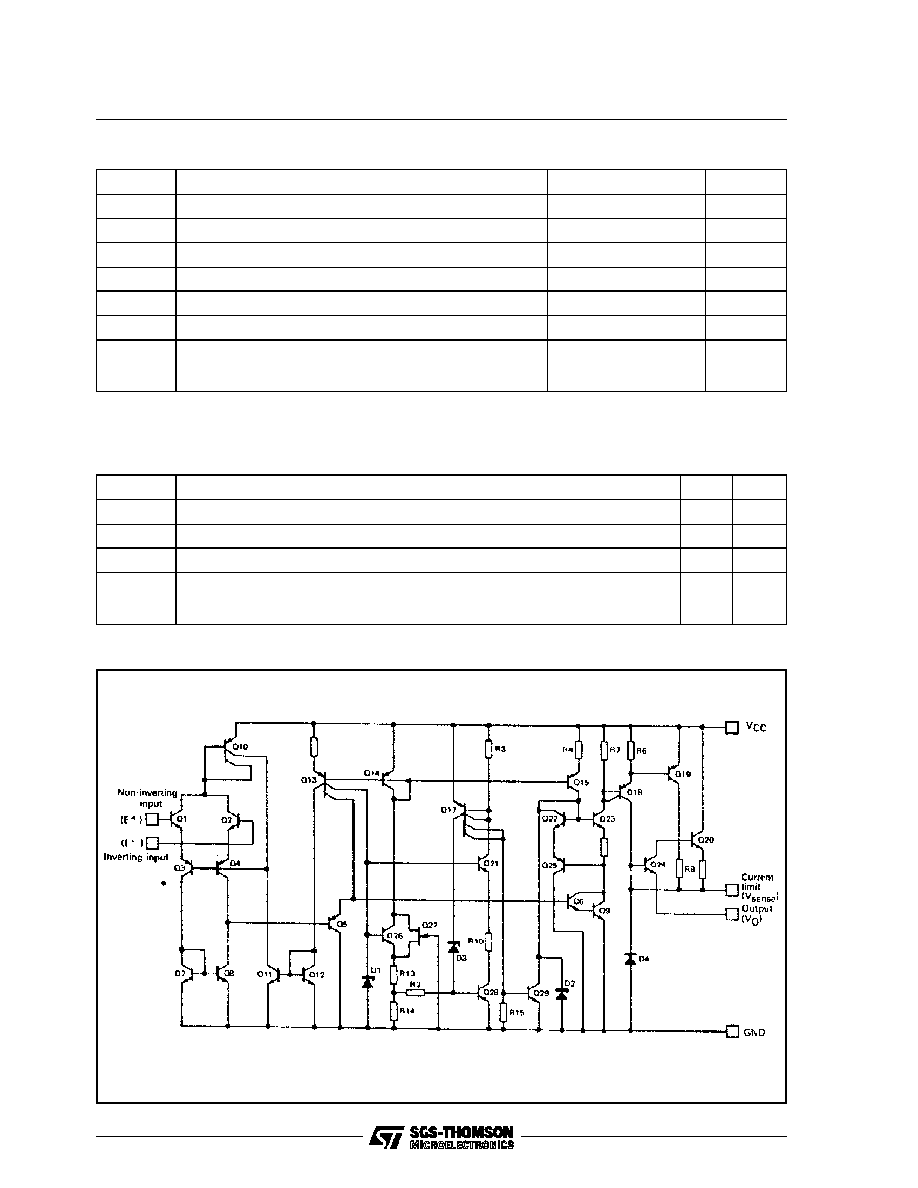

SCHEMATIC DIAGRAM

THERMAL CHARACTERISTICS

Symbol

Parameter

Value

Unit

Maximum Junction-case Thermal Resistance

50

°C/W

Maximum Junction-ambient Thermal Resistance

120

°C/W

Junction-ceramic Substrate (case glued to substrate)

SO14

90

°C/W

Junction-ceramic Substrate (case glued to substrate, substrate temperature

maintened constant)

SO14

65

°C/W

TDE1747 - TDF1747
