VB027BSP Datasheet(PDF) 5 Page - STMicroelectronics

Part # VB027BSP
Description  HIGH VOLTAGE IGNITION COIL DRIVER POWER I.C.
PDF  7 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  STMICROELECTRONICS [STMicroelectronics]
Direct Link  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

VB027BSP Datasheet(HTML) 5 Page - STMicroelectronics

  VB027BSP Datasheet HTML 1Page - STMicroelectronics VB027BSP Datasheet HTML 2Page - STMicroelectronics VB027BSP Datasheet HTML 3Page - STMicroelectronics VB027BSP Datasheet HTML 4Page - STMicroelectronics VB027BSP Datasheet HTML 5Page - STMicroelectronics VB027BSP Datasheet HTML 6Page - STMicroelectronics VB027BSP Datasheet HTML 7Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out
 5 / 7 page
background image
5/7
VB027BSP
1

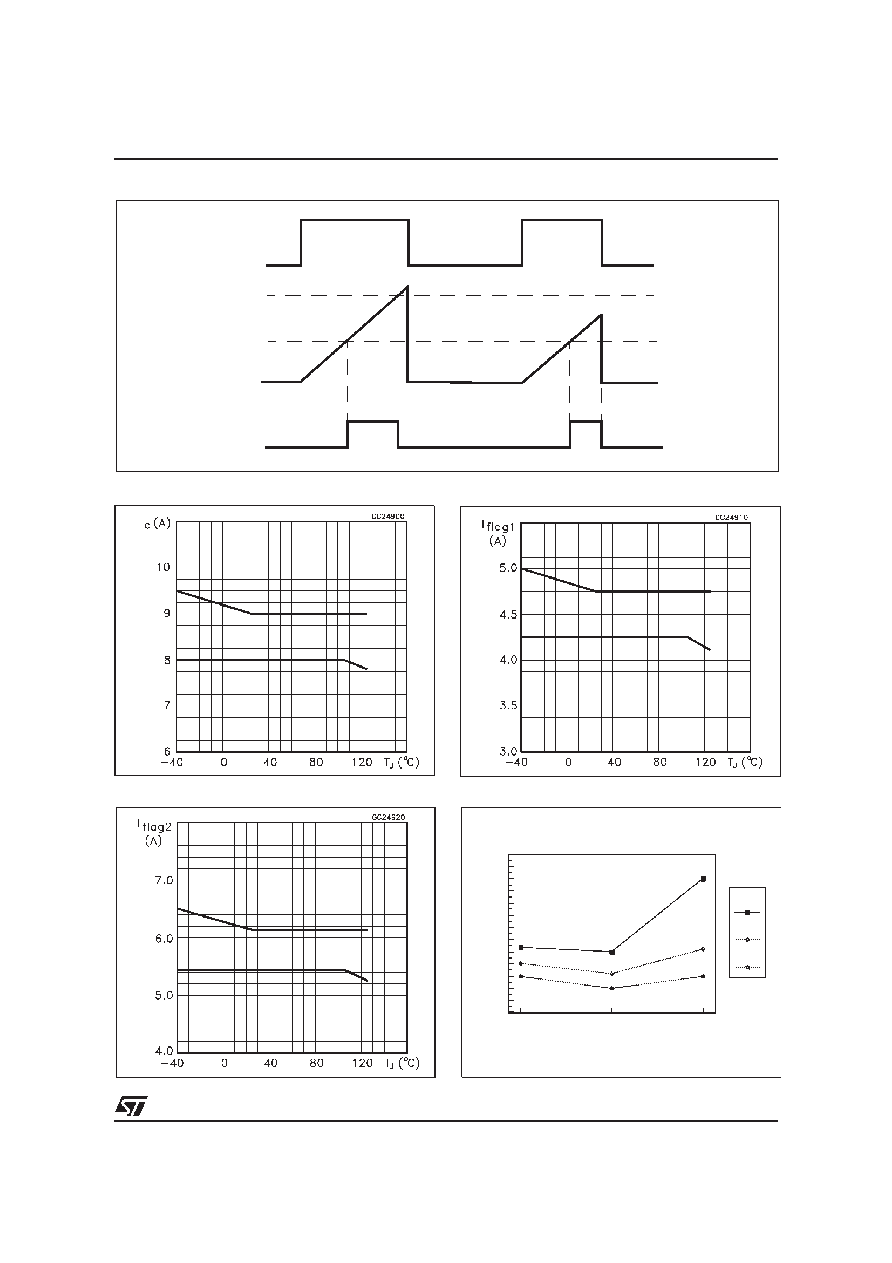

FIGURE 2: Switching waveform
FIGURE 3:
Maximum Icl VS temperature
FIGURE 5: IC(diag2) VS temperature
FIGURE 4: IC(diag1) VS temperature
FIGURE 6: Vcg(sat) VS temperature (at IC=6A)
1
VIN
2nd Threshold
1st Threshold
Icl
DIAG
-40
25
125
Temperature [
°C]
1.1
1.2
1.3
1.4
1.5
1.6
1.7
[V]
max
Avg
min
