HCP0805-R68-R Datasheet(PDF) 3 Page - Cooper Bussmann, Inc.

Part # HCP0805-R68-R
Description  High Current, High Frequency, Power Inductors
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  COOPER [Cooper Bussmann, Inc.]
Direct Link  http://www.cooperbussmann.com
Logo COOPER - Cooper Bussmann, Inc.

HCP0805-R68-R Datasheet(HTML) 3 Page - Cooper Bussmann, Inc.

  HCP0805-R68-R Datasheet HTML 1Page - Cooper Bussmann, Inc. HCP0805-R68-R Datasheet HTML 2Page - Cooper Bussmann, Inc. HCP0805-R68-R Datasheet HTML 3Page - Cooper Bussmann, Inc. HCP0805-R68-R Datasheet HTML 4Page - Cooper Bussmann, Inc.
Zoom Inzoom in Zoom Outzoom out
 3 / 4 page
background image
1108
BU-SB08798
Page 3 of 4

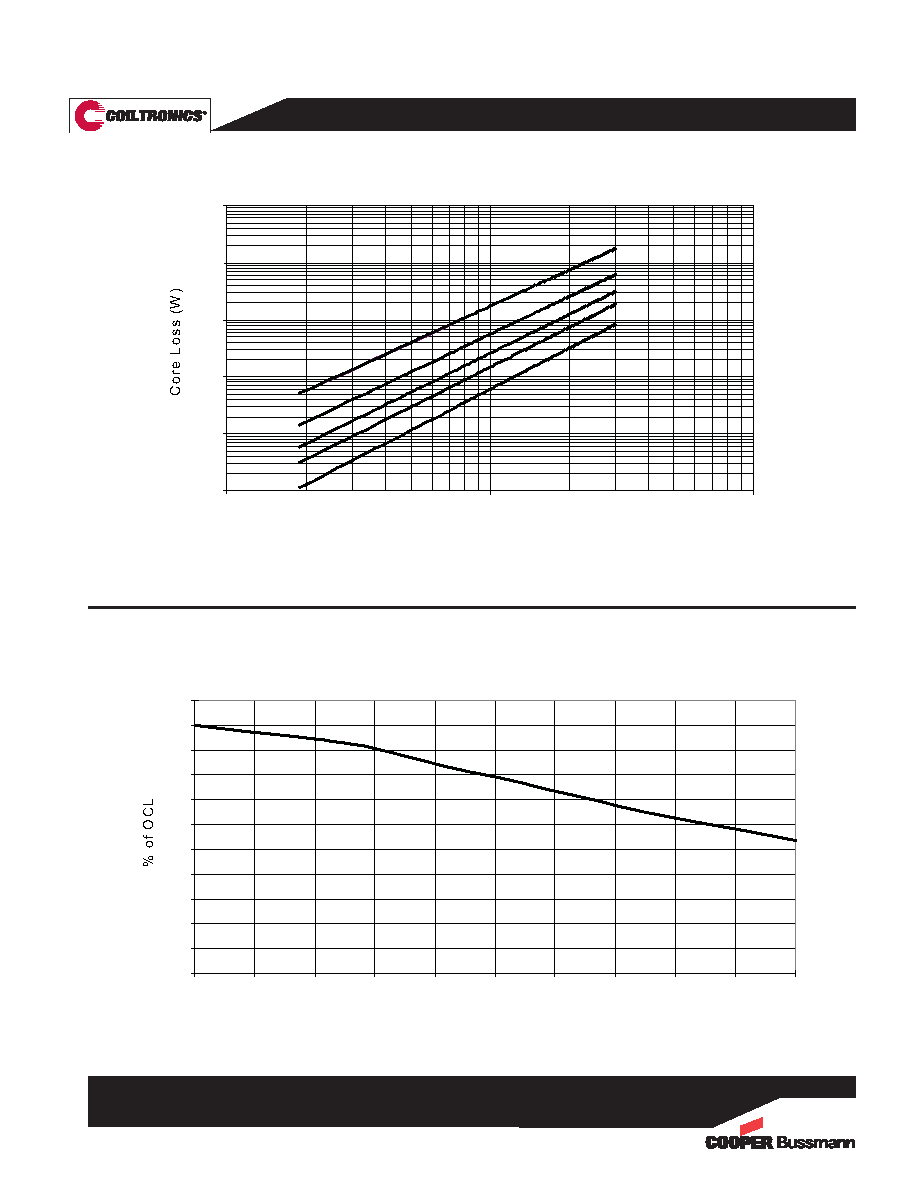

Data Sheet: 4349
Co re L o ss vs. B
100k Hz
200k Hz
300k Hz
500k Hz
1MHz
0.001
0.01
0.1
1
10
100
100
1000
10000
B
(G u a ss)
p-p
p-p
% of O C L vs. % of I
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
110%
0%
20%
40%
60%
80%
100%
120%
140%
160%
180%
200%
% of I
sat
sat
Inductance Characteristics
Core Loss
