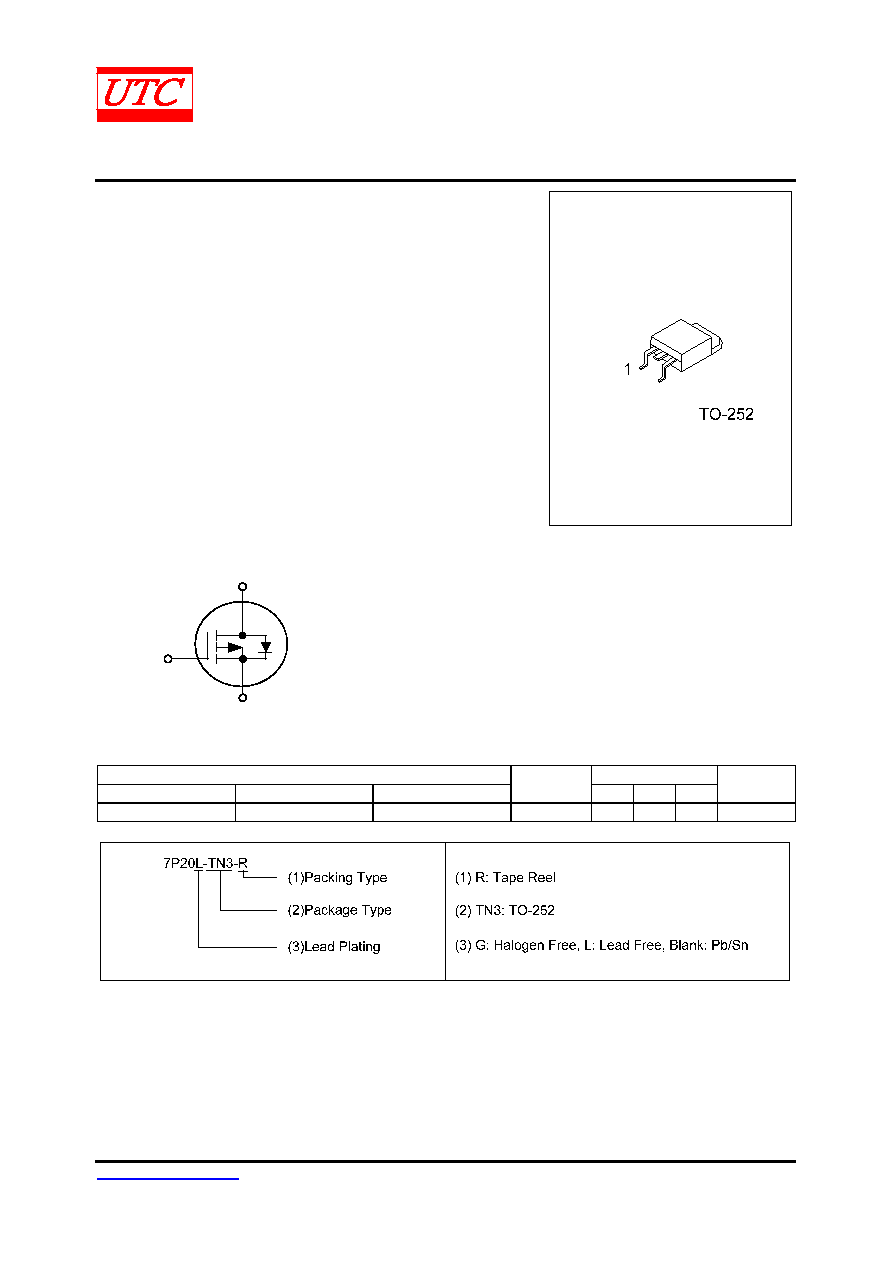

UNISONIC TECHNOLOGIES CO., LTD

7P20

Preliminary

Power MOSFET

www.unisonic.com.tw

1 of 8

QW-R502-288.a

200V P-CHANNEL MOSFET

DESCRIPTION

The 7P20 uses advanced proprietary, planar stripe, DMOS

technology to provide excellent RDS(ON), low gate charge and

operation with low gate voltages. This device is suitable for use

as a load switch or in PWM applications. They are also well suited

for high efficiency switching DC/DC converters.

FEATURES

* RDS(ON) ≦ 0.69Ω @VGS = -10 V

* Ultra low gate charge ( typical 19 nC )

* Low reverse transfer capacitance ( CRSS = typical 25 pF )

* Fast switching capability

* Avalanche energy specified

* Improved dv/dt capability, high ruggedness

SYMBOL

1.Gate

3.Source

2.Drain

Lead-free:

7P20L

Halogen-free: 7P20G

ORDERING INFORMATION

Ordering Number

Pin Assignment

Normal

Lead Free

Halogen Free

Package

1

2

3

Packing

7P20-TN3-R

7P20L-TN3-R

7P20G-TN3-R

TO-252

G

D

S

Tape Reel
