557T175M Datasheet(PDF) 1 Page - Glenair, Inc.

Part # 557T175M
Description  D-Subminiature G-Spring Solid Backshell
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  GLENAIR [Glenair, Inc.]
Direct Link  http://www.glenair.com
Logo GLENAIR - Glenair, Inc.

557T175M Datasheet(HTML) 1 Page - Glenair, Inc.

  557T175M Datasheet HTML 1Page - Glenair, Inc. 557T175M Datasheet HTML 2Page - Glenair, Inc.
Zoom Inzoom in Zoom Outzoom out
 1 / 2 page
background image
www.glenair.com
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
© 2004 Glenair, Inc.
Printed in U.S.A.
A-74
CAGE Code 06324

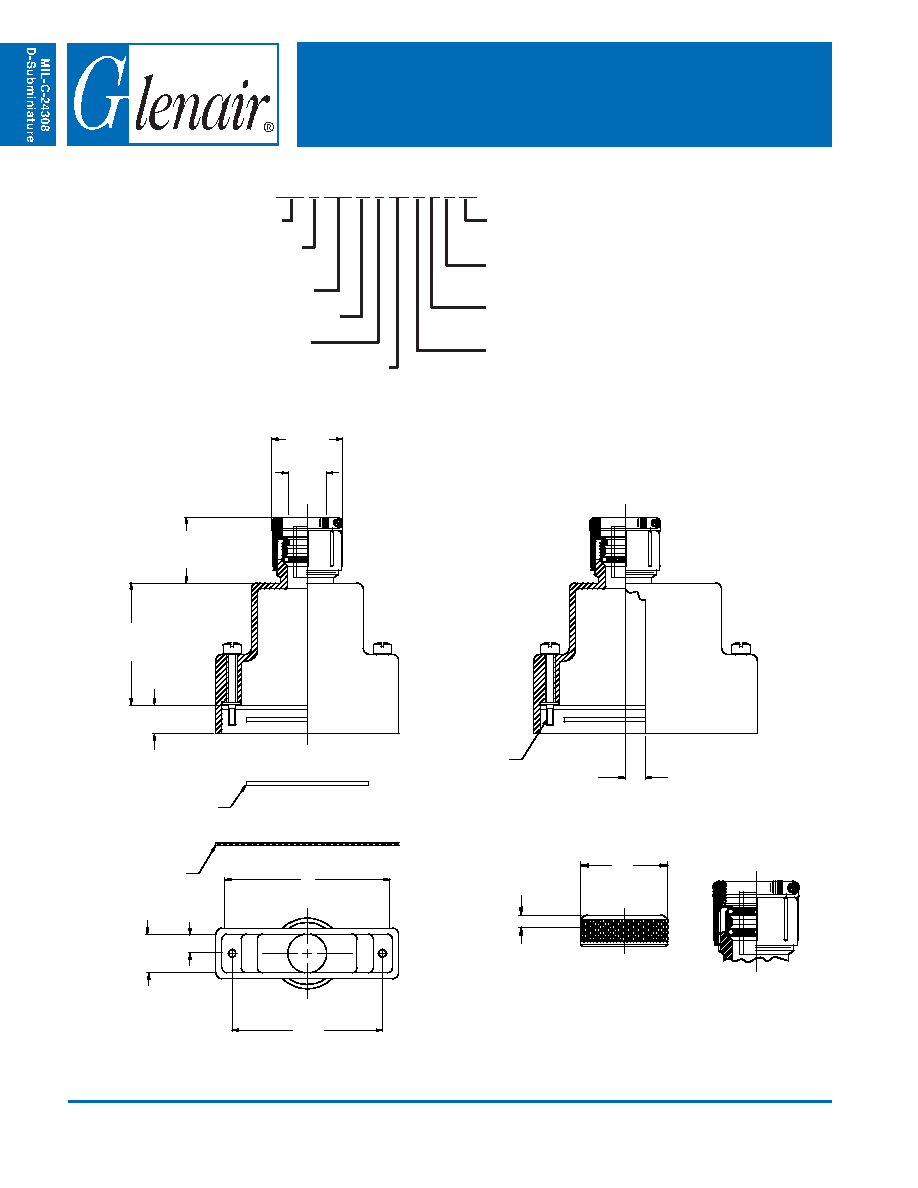

1.195 (30.4)
±.031 (.8) Typ.
E Typ.
Cable
Range
Style F
Strain Relief
1.00 (25.4)
Max Typ.
RFI/EMI Gasket
Optional
B
C
D
A
#4-40 UNC
(2 Places) Typ.
G Typ.
Connector
Retaining Spring
.135 (3.4)
Max
F
Style G
Gland Nut
Style D
Dual Spring
Strain Relief
SHELL
SIZES
3, 4, &
SHELL
SIZES
1 & 2
Shell Sizes 3, 4, & 5 =
.300 (7.6)
Shell Size 6 = .425
(10.8)
557-175
D-Subminiature G-Spring Solid Backshell
557 T 175 M 2 F0 B 1 F 02
Inner Support Ring Dash No.
(Table III), N = No Support Ring
F = Strain Relief, G = Gland Nut,
D = Dual “G” Spring With Strain Relief
0 = Without EMI Gasket,
1 = With EMI Gasket
Jackscrew Type (Page A-4)
Basic Part No.
Cable Entry Style
T = Top
Basic Part Number
Finish Symbol (Page 3)
Shell Size (Table I)
Receptacle Mounting (Table II)
F0 = Front Mounting
R1-R9 = Rear Mounting


Similar Part No. - 557T175M
