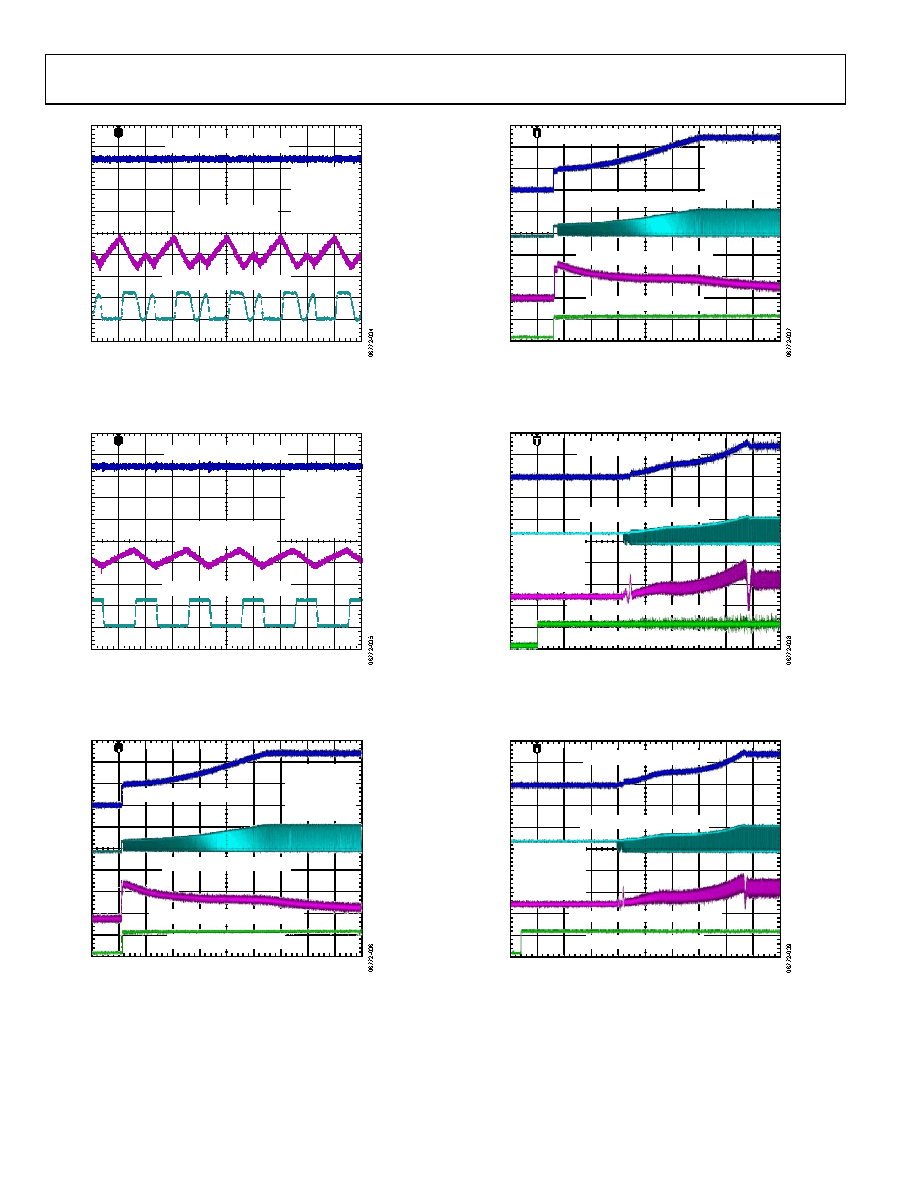

background image
ADP1612/ADP1613
Rev. A | Page 10 of 28
T
TIME (400ns/DIV)
VIN = 5V
VOUT = 12V
ILOAD = 20mA
L = 6.8µH
fSW = 1.3MHz
COUT = 10µF
OUTPUT VOLTAGE (5V/DIV)
INDUCTOR CURRENT
(200mA/DIV)
SWITCH VOLTAGE (10V/DIV)
Figure 28. ADP1612/ADP1613 Switching Waveform in Discontinuous
Conduction Mode
T
TIME (400ns/DIV)
VIN = 5V
VOUT = 12V
ILOAD = 200mA
L = 6.8µH
fSW = 1.3MHz
COUT = 10µF
OUTPUT VOLTAGE (5V/DIV)
INDUCTOR CURRENT
(500mA/DIV)
SWITCH VOLTAGE (10V/DIV)
Figure 29. ADP1612/ADP1613 Switching Waveform in Continuous
Conduction Mode
T
TIME (20ms/DIV)
VIN = 5V
VOUT = 12V
ILOAD = 250mA
L = 6.8µH
fSW = 1.3MHz
OUTPUT VOLTAGE (5V/DIV)
INDUCTOR CURRENT (2A/DIV)
SWITCH VOLTAGE (10V/DIV)
EN PIN VOLTAGE (5V/DIV)
Figure 30. ADP1612/ADP1613 Start-Up from VIN, CSS =33 nF
T
TIME (20ms/DIV)
VIN = 5V
VOUT = 12V
ILOAD = 250mA
L = 6.8µH
fSW = 1.3MHz
OUTPUT VOLTAGE (5V/DIV)
SWITCH VOLTAGE (10V/DIV)
EN PIN VOLTAGE (5V/DIV)
INDUCTOR CURRENT (2A/DIV)
Figure 31. ADP1612/ADP1613 Start-Up from VIN, CSS =100 nF
T
TIME (400µs/DIV)
VIN = 5V
VOUT = 12V
ILOAD = 250mA
L = 6.8µH
fSW = 1.3MHz
OUTPUT VOLTAGE (5V/DIV)
INDUCTOR CURRENT (500mA/DIV)
SWITCH VOLTAGE (10V/DIV)
EN PIN VOLTAGE (5V/DIV)
Figure 32. ADP1612/ADP1613 Start-Up from Shutdown, CSS = 33 nF
T
TIME (400µs/DIV)
VIN = 5V
VOUT = 12V
ILOAD = 250mA
L = 6.8µH
fSW = 1.3MHz
OUTPUT VOLTAGE (5V/DIV)
INDUCTOR CURRENT (500mA/DIV)
SWITCH VOLTAGE (10V/DIV)
EN PIN VOLTAGE (5V/DIV)
Figure 33. ADP1612/ADP1613 Start-Up from Shutdown, CSS = 100 nF
