SE2590L

2.4 GHz Power Amplifier with Power Detector

Preliminary Information

Applications

DSSS 2.4 GHz WLAN (IEEE802.11b)

OFDM 2.4 GHz WLAN (IEEE802.11g or

IEEE801.11n)

Access Points, PCMCIA, PC cards

Features

Single 3.3 V Supply Operation

o

19 dBm, EVM = 3 %, 802.11g, OFDM 54

Mbps

o

23 dBm, ACPR < -32 dBc, 802.11b

28 dB Gain

Integrated

temperature

compensated

power

detector

Integrated power amplifier enable pin (VEN)

Lead Free and RoHS compliant

Small package: 16 pin 4 mm x 4 mm x 0.9 mm

QFN

Ordering Information

Part Number

Package

Remark

SE2590L

16 Pin QFN

Samples

SE2590L-R

16 Pin QFN

Tape and Reel

SE2590L-AK1

Application Kit

Standard

Product Description

The SE2590L is a 2.4 GHz power amplifier designed

for use in the 2.4 GHz ISM band for wireless LAN

applications.

The

device

incorporates

a

power

detector for closed loop monitoring of the output

power.

The SE2590L includes a digital enable control for

device on/off control.

The

SE2590L

temperature

compensated

power

detector is highly immune to mismatch at its output

with less than 1.5 dB of variation with a 2:1 mismatch.

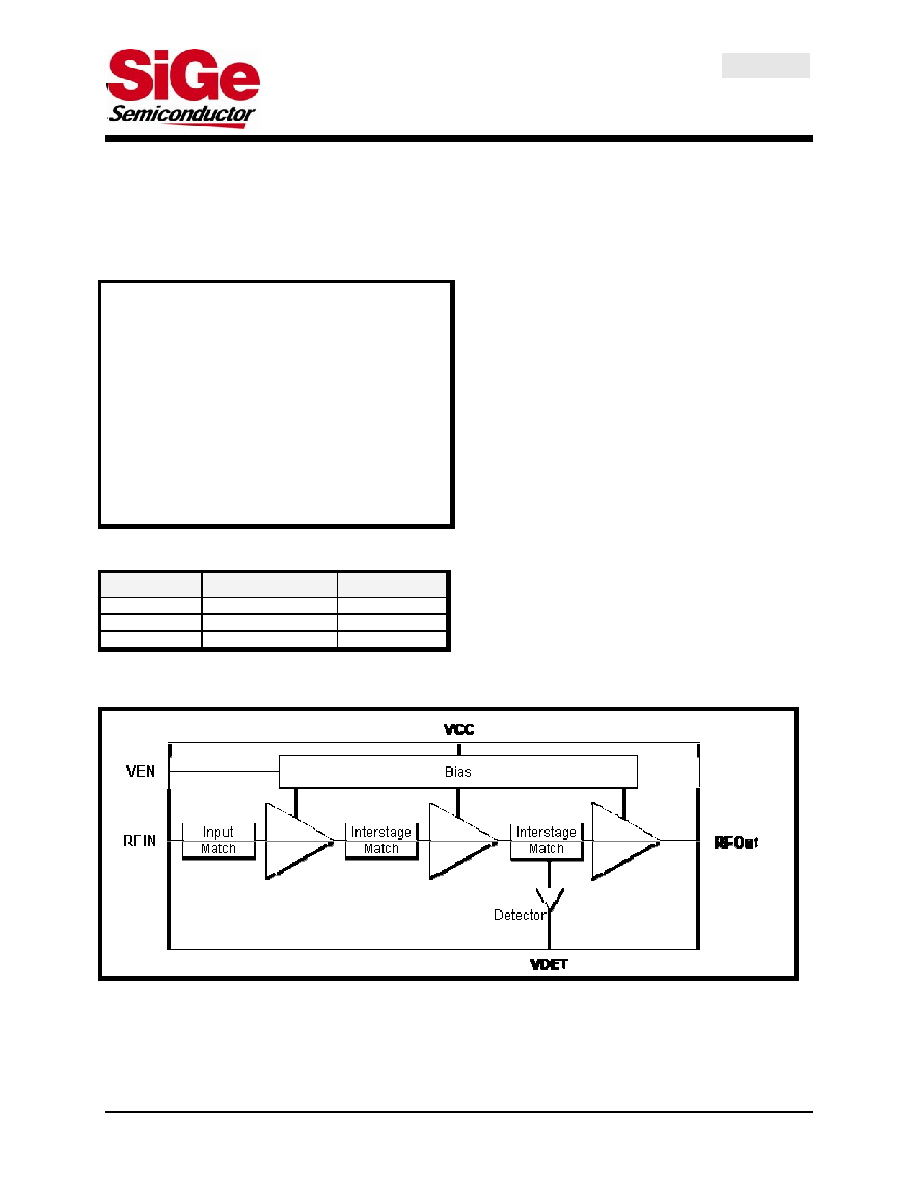

Functional Block Diagram

Figure 1: Functional Block Diagram

DST-00273

Rev 1.1

May-26-2009

1 of 2
