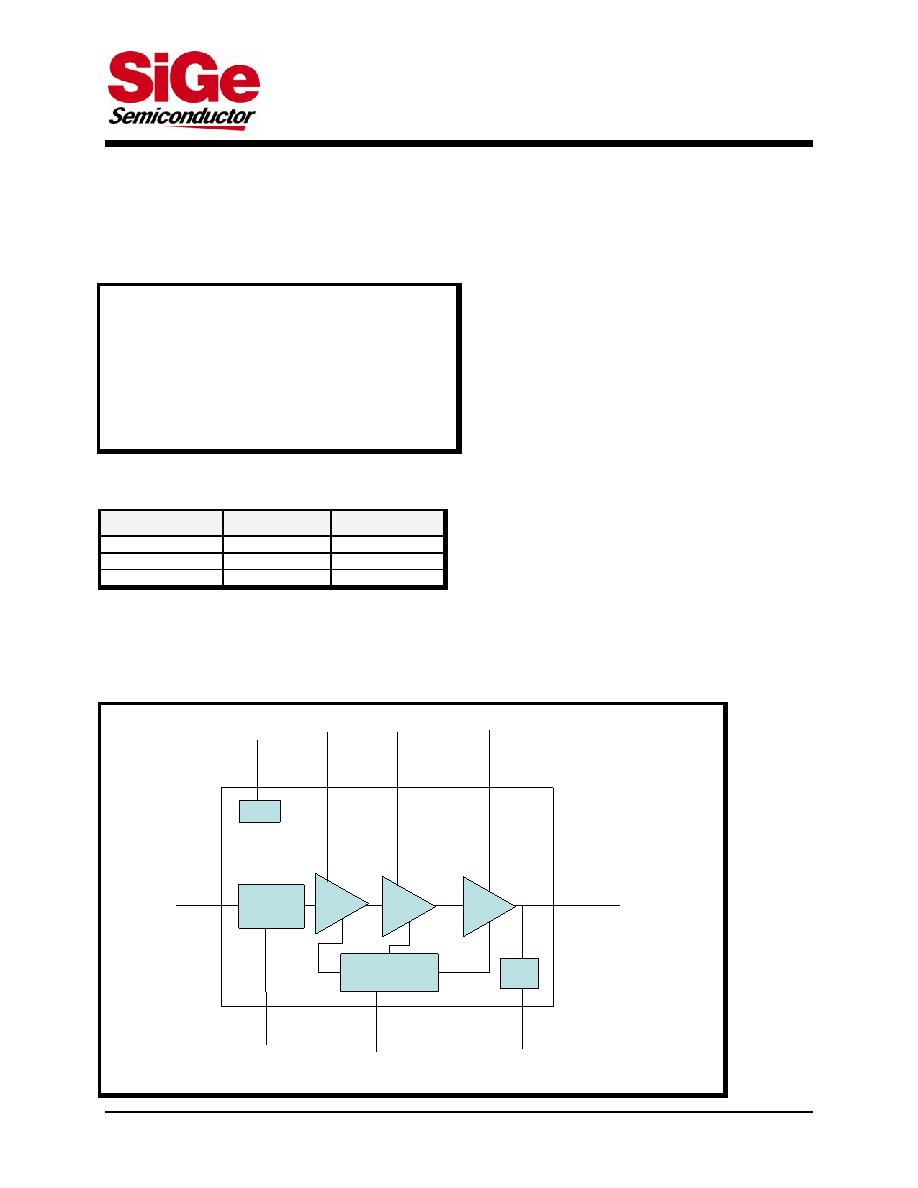

background image
SE7262L
2.5-2.7 GHz WiMAX Power Amplifier
Applications
IEEE802.16e WiMAXTM
CPE and Mobile Computing
Features
25.5 dBm output power, with -28 dB EVM at 3.3V
High efficiency power amplifier with PAE>20%
37 dB gain
Integrated Step Attenuator
Integrated output power detector
All RF ports matched for 50 Ω operation
Supply voltage: 2.9 V – 4.2 V
Lead free, Halogen free, ROHS compliant
package (4 x 4 x 0.9 mm), MSL 3
Ordering Information
Part No.
Package
Remark
SE7262L
16 pin QFN
Samples
SE7262L-R
16 pin QFN
Tape and Reel
SE7262L-EK1
N/A
Evaluation kit
Product Description
The SE7262L WiMAX Power Amplifier is a high
performance device offering high output power with
high linearity and exceptional efficiency. Designed for
portable or mobile applications in the 2.5-2.7 GHz
band, it supports the IEEE 802.16d and IEEE 802.16e
wireless standards.
.
Functional Block Diagram
Figure 1: Functional Block Diagram
Bias Control
Power
Det
RF in
VATTN
VREF
VDET
RF out
VDD1
VDD2
VDD3
Step
Attn
Temp
Sensor
TEMP
Bias Control
Power
Det
RF in
VATTN
VREF
VDET
RF out
VDD1
VDD2
VDD3
Step
Attn
Temp
Sensor
TEMP
DST-00155 Rev 1.8 May-26-2009
1 of 10
