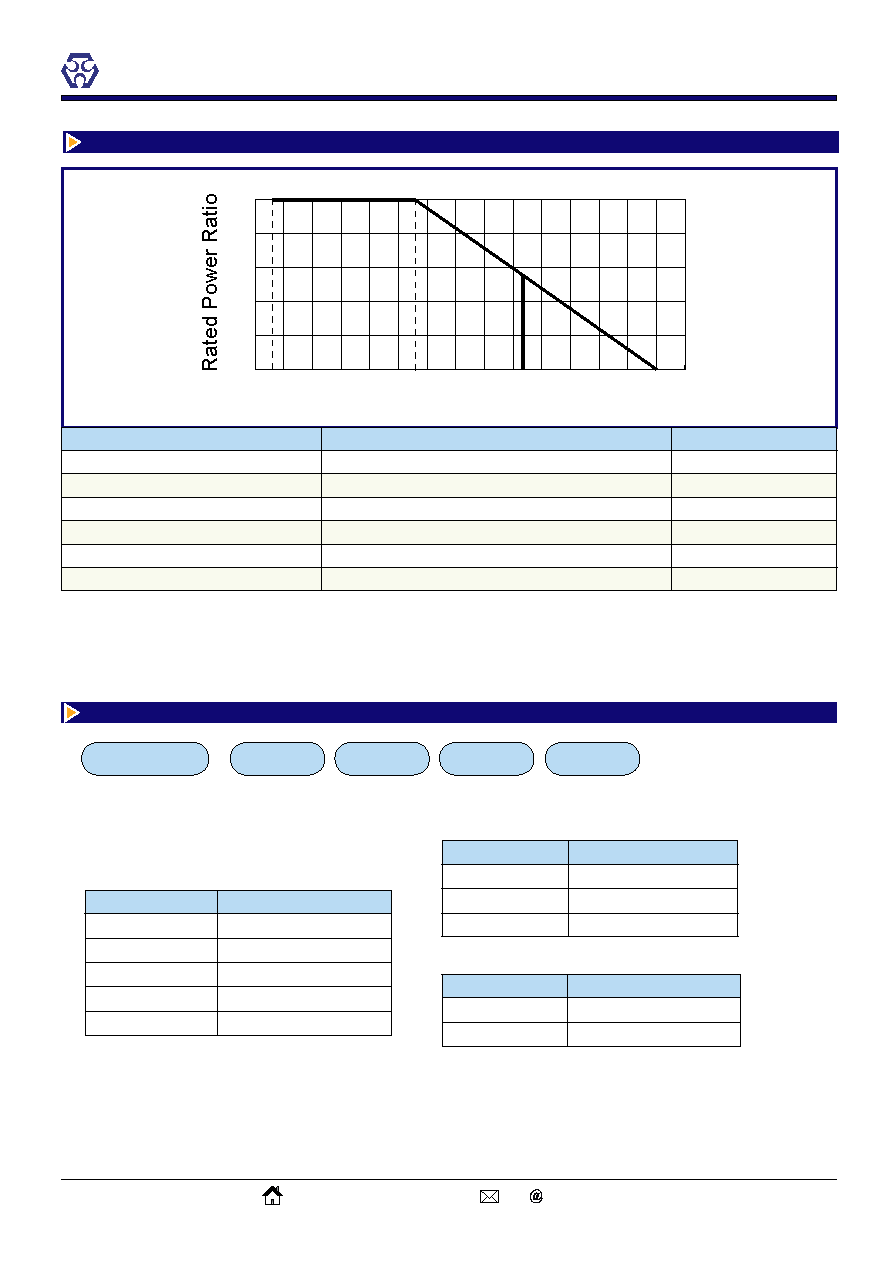

How to Order









10R

KNPN-100



KNPN Non-inductive Resistors



Part Number: KNPN



Rated Power (W)



Resistance Value (Ω)



Resistance Tolerance (%)

Code

Resistance Value

0R1

0.1Ω

1Ω

10R2

1.2Ω

10R

10Ω

12R

12MΩ



Package

Code

Package

Taping Box

Bulk

Code

Resistance Tolerance

±5%

Electrical Performance

TEST ITEMS

CONDITION

SPEC

Operating Temperature Range

-55 °C ~ 275 °C (0W)

Resistance Temp. Coeff.

Room temperature/100 °C up

± 300 PPM / °C

Short Time Overload

10 times of rated wattage for 5 sec.

± 2 %

Rated Load

Rated wattage 30 min.

± 1 %

Voltage Withstanding

500VAC 1 min

± 1 %

Temperature Cycling

-20 °C ~ 85 °C 5 cycles

± 1 %

100

-55

155

275

250

225

200

175

150

125

100

-25

-50

280

Ambient Temperature °C

Back to 1st Page - Non-inductive Wirewound Resistors (KNPN)
