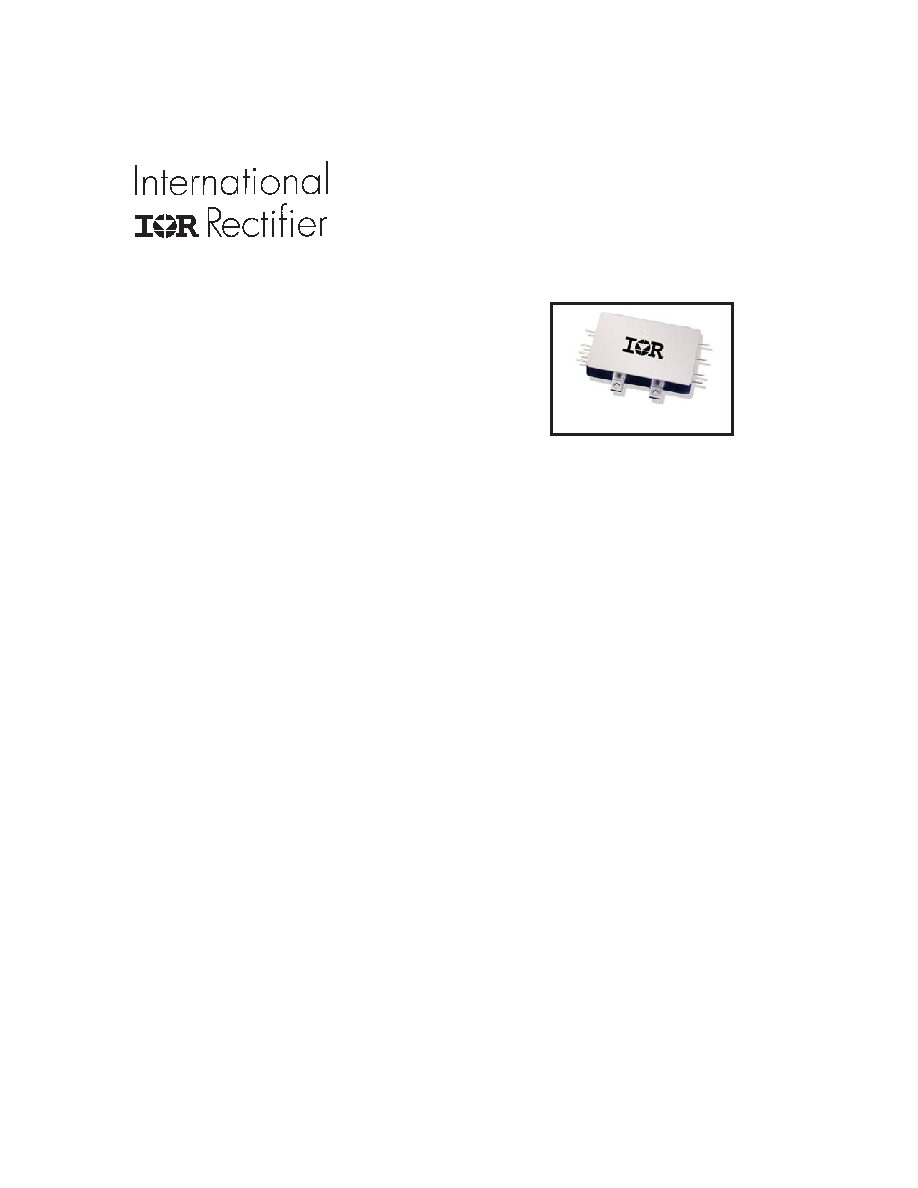

1 / 10 page  01/16/07 www.irf.com 1 HIGH RELIABILITY DC/DC CONVERTER ATS-SERIES Description n 16V to 50V DC Input Range n Input Transient per MIL-STD-704D n Up to 25W Output Power n Single and Dual Output Models Include 3.3V, 5V, 12V, 15V, ±5V, ±12V and ±15V n Internal EMI Filter; Converter Capable of Meeting MIL-STD-461C CE03 and CS01 n Magnetically Coupled Feedback n High Efficiency - to 82% n -55°C to +125°C Operating Temperature Range n 100MΩ @ 500VDC Isolation n Under-Voltage Lockout n Short Circuit and Overload Protection n Output Over Voltage Limiter n Adjustable Output Voltage n External Inhibit n 1,500,000 Hour MTBF n Low Weight, < 85 grams Features 28V Input, Single/Dual Output Manufactured in a facility fully qualified to MIL-PRF- 38534, these converters are fabricated utilizing DSCC qualified processes. For available screening options, refer to device screening table in the data sheet. Applications The ATS Series DC/DC converters are a family of 25W, single and dual output, high reliability devices designed for rugged environments and extended temperature operations such as those encountered in military, aerospace and industrial applications. The converters are in full compliant with CE03 and CS01 of MIL-STD- 461C. Features include small size, low weight and conservative component stress de-rating. For operations in radiation environments, the M3L series with the identical form factor and electrical rating is recommended. All models include an external inhibit port and have an adjustable output voltage. They are enclosed in a hermetic 1.5" x 2.3" x .425" steel package and weight less than 85grams. The package utilizes rugged ceramic feed-thru copper core pins and is sealed using parallel seam welding. ATS n Military Aircraft n Commercial Aircraft n Missiles n Ground Equipment PD-97221A |
