AS04508MR-3-R Datasheet(PDF) 1 Page - Projects Unlimited, Inc.

Part # AS04508MR-3-R
Description  Speaker
PDF  1 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  PUI [Projects Unlimited, Inc.]
Direct Link  http://www.pui.com
Logo PUI - Projects Unlimited, Inc.

AS04508MR-3-R Datasheet(HTML) 1 Page - Projects Unlimited, Inc.

  AS04508MR-3-R Datasheet HTML 1Page - Projects Unlimited, Inc.
Zoom Inzoom in Zoom Outzoom out
 1 / 1 page
background image

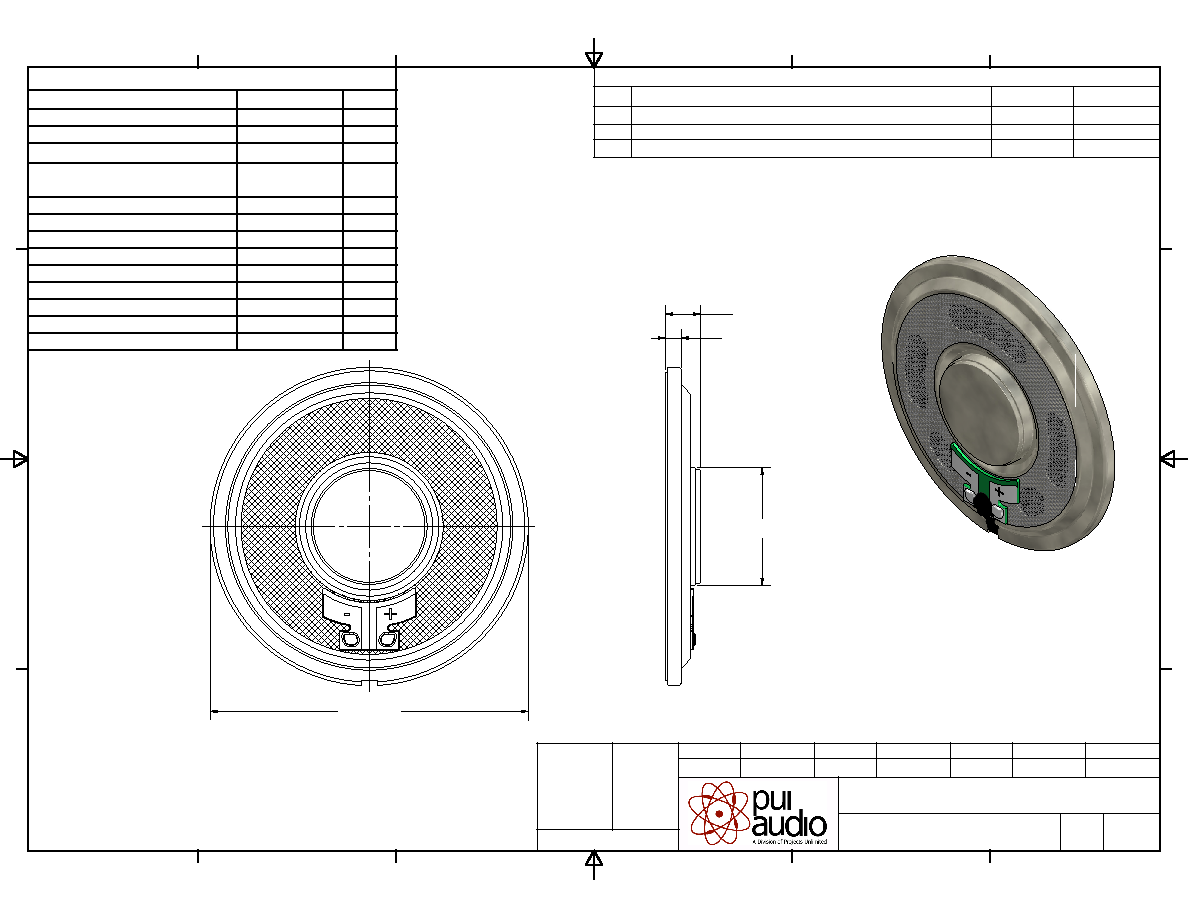

Speaker
AS04508MR-3-R
J.D.
E.P.
B.R.
5/23/2009
-
Designed by
Checked by
Approved by
Drawn Date
1 / 1
Edition
Sheet
Date
2/17/2006
Date
2/17/2006
Date
2/17/2006
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
TOLERANCES
ARE ±0.5 AND
ANGLES ARE ±3°.
AS04508MR-3-R.idw
A3
SIZE
REVISION HISTORY
LTR
DESCRIPTION
DATE
APPROVED
-
RELEASED FROM ENGINEERING
2/20/2006
A
ADDED STORAGE TEMPERATURE
2/26/2009
B.R.
B
REVISED TO INENTOR 3-D DRAWING TEMPLATE
5/23/2009
B.R.
SPECIFICATIONS
PARAMETERS
VALUES
UNITS
RATED INPUT POWER
1
W
MAX INPUT POWER
1.5
W
IMPEDANCE
8 ± 15%
OHM
OUTPUT SPL @ 1W/1M
(AT 1.0, 1.2, 1.5, 2.0 kHz)
84 ± 3
dBA
DISTORTION (MAX.)
5%
-
RESONANT FREQUENCY
450 ± 90%
Hz
FREQUENCY RANGE
450 ~ 6000
Hz
HOUSING MATERIAL
METAL
-
CONE MATERIAL
MYLAR
-
MAGNET MATERIAL
N35
-
OPERATING TEMPERATURE
-20 ~ +55
°C
STORAGE TEMPERATURE
-25 ~ +60
°C
WEIGHT
11
grams
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
©2003, Projects Unlimited Inc.
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2002/95/EC COMPLIANT.
16.6
`0.2
n
5
`0.3
2.3
`0.2
45
`0.3
n
